MER6755AAQ 05 – OVEN

MER6755AAQ 05 – OVEN

Written by

in

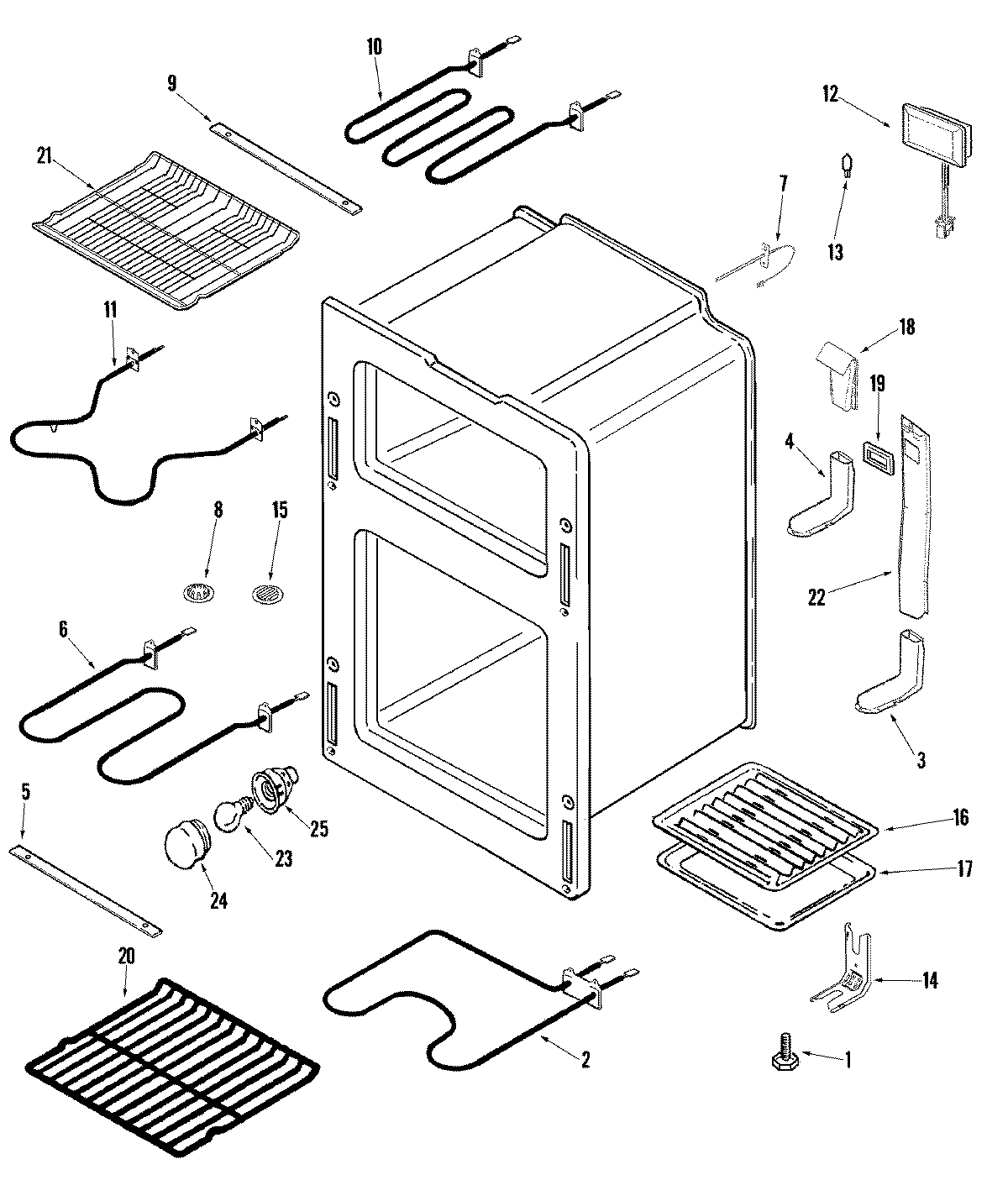

MER6755AAQ 05 – OVEN

Products

PositionProduct
1W11665456 Whirlpool Range Level Foot
2MAY 74007932
2WP7406P428-60 Whirlpool Oven Bake Element
3MAY 74003394
4MAY 74004522
5SUPPORT, BROIL ELEMENT
5WP400021-1 Whirlpool Screw
6WPW10310249 Whirlpool Broil Element
712001656 Whirlpool Range Oven Temperature Sensor
7MAY 74003095
8MAY 74004517
9MAY 3807F176-19
10W10201551 Whirlpool Oven Broil Element
1174004105 Whirlpool Range Upper Oven Bake Element
12MAY 74009970
13WP74009925 Whirlpool Halogen Light Bulb
14WP3801F656-51 Whirlpool Range Anti-Tip Bracket
14WP7101P485-60 Whirlpool Anchor Tip
15WP74011278 Whirlpool Light
16MAY Y3413F01619
17NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
17MAY Y3401F02019
18MAY 74009988
18MAY 74009987
19MAY 74004533
20WPW10282492 Whirlpool Oven Rack
21WPW10273816 Whirlpool Oven Rack
22SCREW
22MAY 74004535
23MAY Y707319
24MAY 71001867
