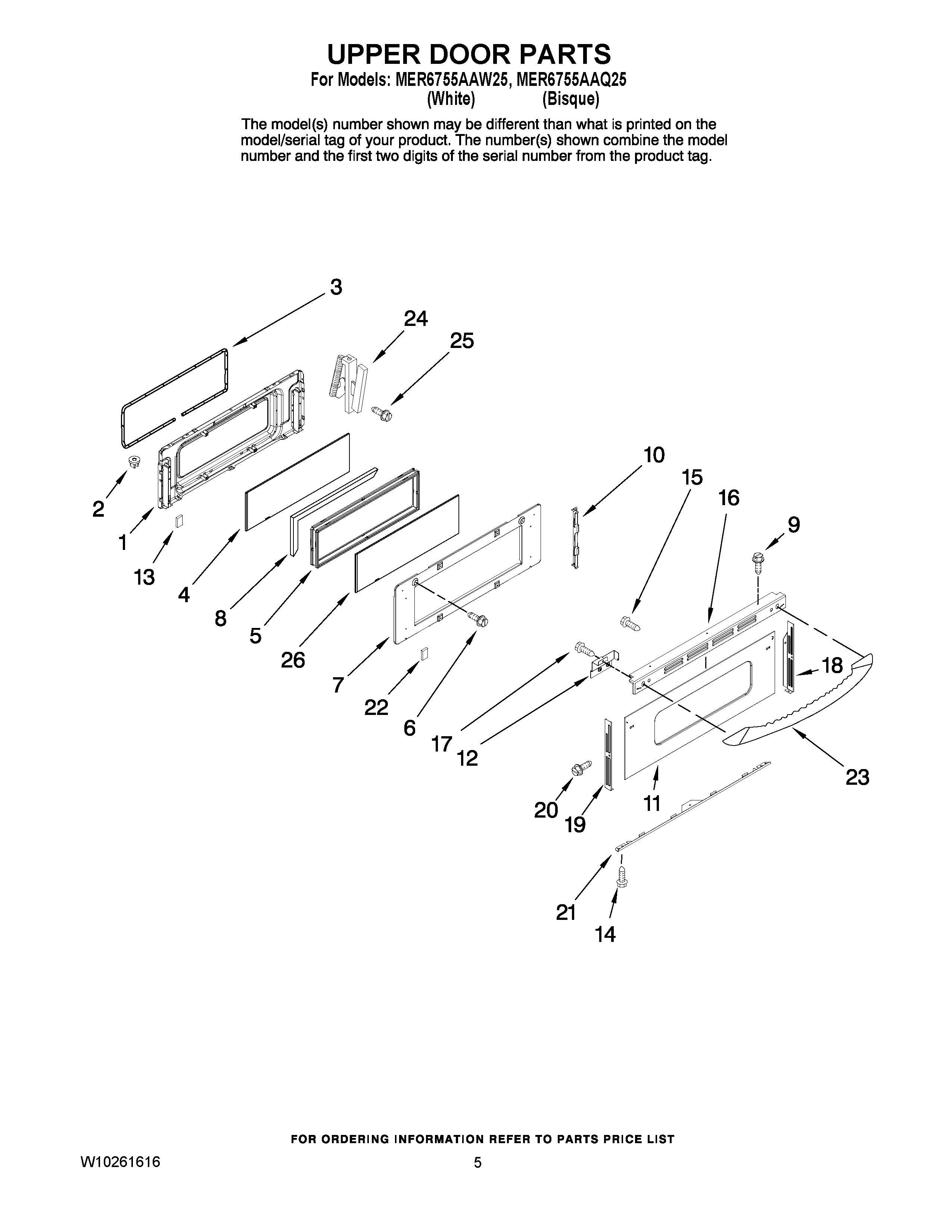

MER6755AAQ25 04 – UPPER DOOR PARTS

Products

Position	Product
1	MAY 2402W248-19
2	MAY 7103P141-60
3	MAY 7201P091-60
4	MAY 7902P521-60
5	MAY 7907P034-60
6	MAY 7101P388-60
7	Baffle, Door
8	MAY 7002P488-60
10	MAY 3804F179-45
11	GLASS, DOOR (INCL. FOIL TAPE) (WHITE)
11	GLASS, DOOR (INCL. FOIL TAPE) (BISQUE)
12	MAY 3801F832-45
12	MAY 3801F831-45
13	MAY 8010P130-60
14	MAY 7101P543-60
15	MAY 7101P376-60
16	Trim, Door Top (Bisque)
16	MAY 3608F141-71
17	MAY 7101P681-60
18	MAY 3608F116-71
18	Trim, Door (Rt) (Bisque)
19	MAY 3608F117-71
19	Trim, Door (Lt) (Bisque)
20	SCREW, HANDLE (BISQUE)
20	Screw (2) (Black)
20	MAY 7101P636-60
21	MAY 3807F708-71
21	Support, Glass (Bisque)
22	MAY 8270P139-60
23	MAY 7701P517-60
23	MAY 7701P518-60
24	MAY 7106P148-60
25	SCREW (10-24X5/16-NI)
26	MAY 7902P520-60
