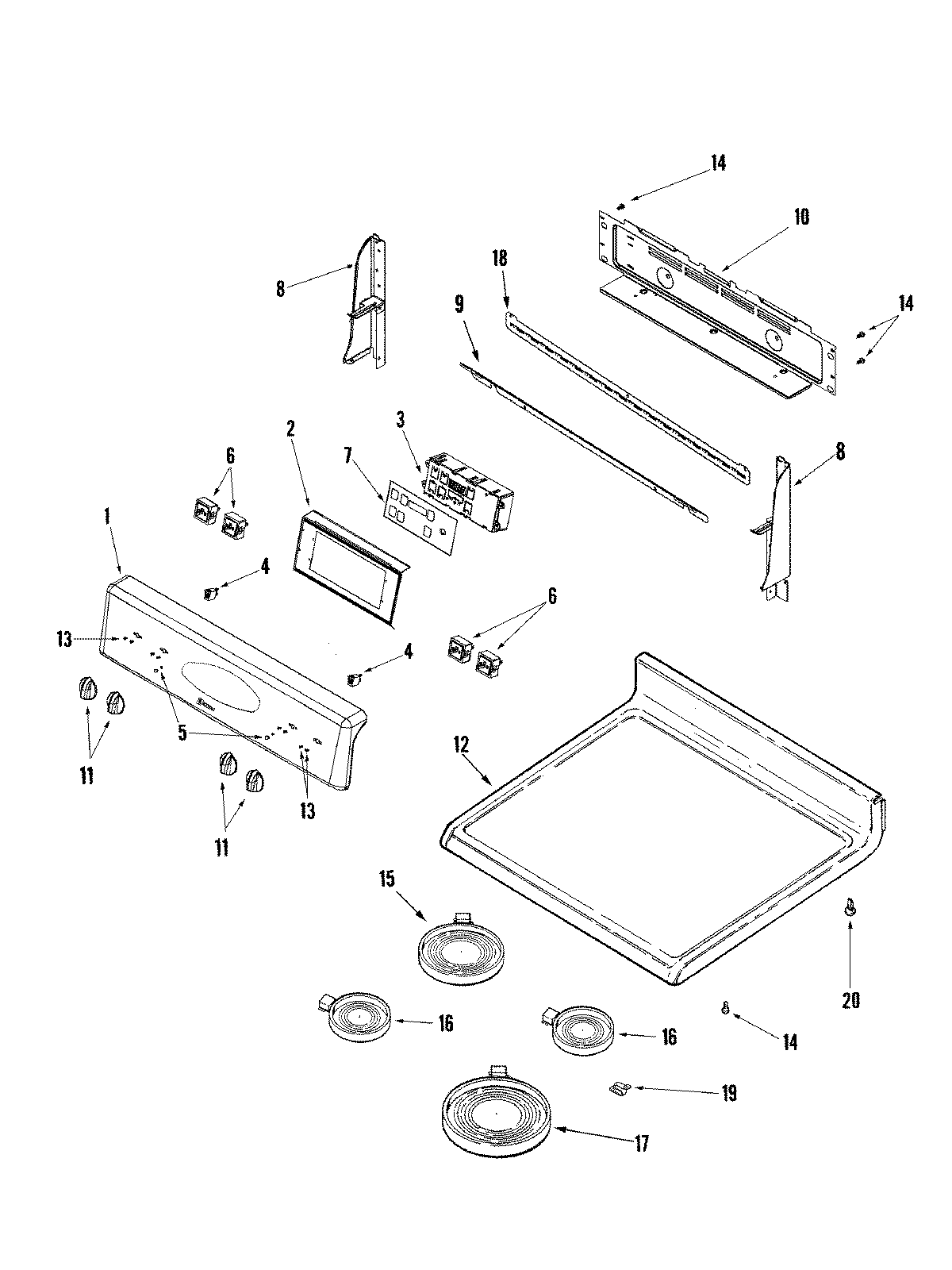

MER6755AAS 02 – CONTROL PANEL/TOP ASSEMBLY

Products

Position	Product
1	MAY 74010014
2	BRACKET, CLOCK
3	W10769079-includeCORE Whirlpool W10769079 Refrigerator Electronic Control Board + Core
4	WP74004153 Whirlpool Indicator Light
5	WP7730P011-60 Whirlpool Indicator Lens
6	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
6	WP7403P239-60 Whirlpool Oven Switch
7	WP74009994 Whirlpool Overlay
8	WP74003976 Whirlpool Screw
8	MAY 74009670
8	MAY 74009673
8	WP98008545 Whirlpool Screw
9	MAY 74009978
10	SCREW (8BX3/8-NI)
10	MAY 74010804
11	MAY 74008945
12	MAY 74010027
13	SCREW
14	SCREW
15	W10823715 Whirlpool Radiant Surface Element
16	W10823711 Whirlpool Surface Element Left Front and Right Rear
17	MAY 74009082
18	WP90767 Whirlpool Screw
18	MAY 74009701
19	8004P093-60 Whirlpool Support C
20	W11189172 Whirlpool Glide Drawer
