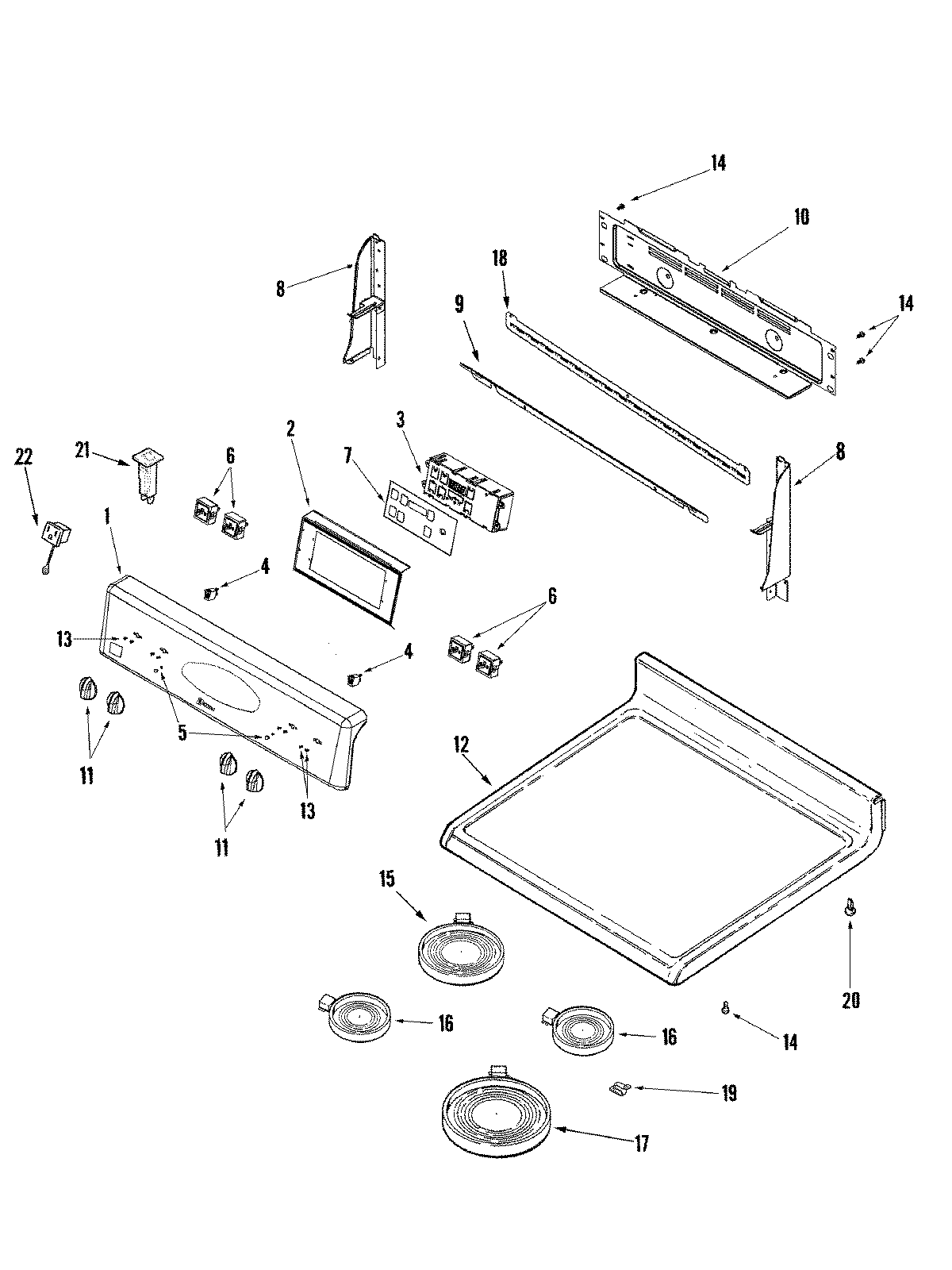

MER6755ACB 02 – CONTROL PANEL/TOP ASSEMBLY

Products

Position	Product
1	MAY 74010388
2	BRACKET, CLOCK
3	W10769079-includeCORE Whirlpool W10769079 Refrigerator Electronic Control Board + Core
4	WP74004153 Whirlpool Indicator Light
5	WP7730P011-60 Whirlpool Indicator Lens
6	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
6	WP7403P239-60 Whirlpool Oven Switch
7	WP74009994 Whirlpool Overlay
8	WP74003976 Whirlpool Screw
8	MAY 74010202
8	MAY 74010201
8	WP98008545 Whirlpool Screw
9	MAY 74009978
10	MAY 74010804
10	SCREW (8BX3/8-NI)
11	MAY 74008945
12	MAY 74010027
13	SCREW
14	SCREW
15	W10823715 Whirlpool Radiant Surface Element
16	W10823711 Whirlpool Surface Element Left Front and Right Rear
17	MAY 74009082
18	MAY 74009701
18	WP90767 Whirlpool Screw
19	8004P093-60 Whirlpool Support C
20	W11189172 Whirlpool Glide Drawer
21	MAY 71003070
22	MAY 71003068
