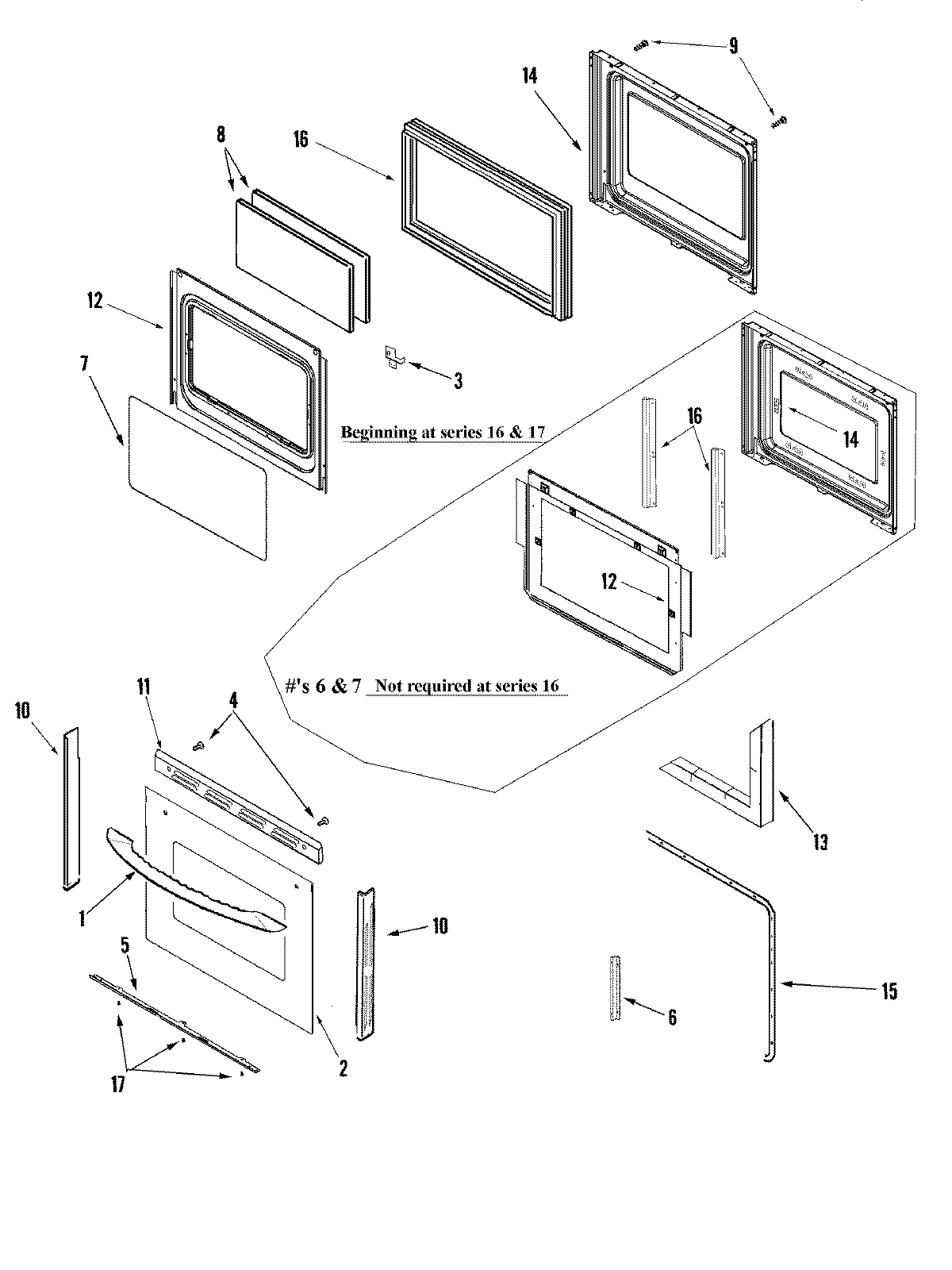

MER6755ACB 03 – DOOR (LOWER)

MER6755ACB 03 – DOOR (LOWER)

Written by

in

MER6755ACB 03 – DOOR (LOWER)

Products

PositionProduct
1WP74011767 Whirlpool Door Handle
2MAY 12002395
3WP74005546 Whirlpool RU Spacer
33801F832-45 Whirlpool Bracket
33801F831-45 Whirlpool Bracket Assembly
3SCREW (10ABX1/4P TR ZN)
4WP74006515 Whirlpool Washer Screw
5SUPPORT, GLASS (BLK)
6MAY 74003650
7NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
7GLASS, DOOR
874003645 Whirlpool Range Oven Door Inner Glass
10WP74009025 Whirlpool Double Sided Tape
10WP3608F117-70 Whirlpool Door Trim
10WP3608F116-70 Whirlpool Door Trim
11MAY 74009689
11TAPE, FOIL 29“ X 2“
11WP98008545 Whirlpool Screw
123601F373-51 Whirlpool Baffle
12MAY 7101P356-60
12MAY 74009502
13MAY 74004569
14MAY 74003642
14LINING, DOOR
14NUT, SNAP (ROUND-WHT)
14NUT, SNAP (ROUND-BLK)
15GASKT-DOOR OVEN
16SCREW, 8 X 1/2
16SCREW
16FRAME, GLASS
163801F886-51 Whirlpool Mounting Bracket
