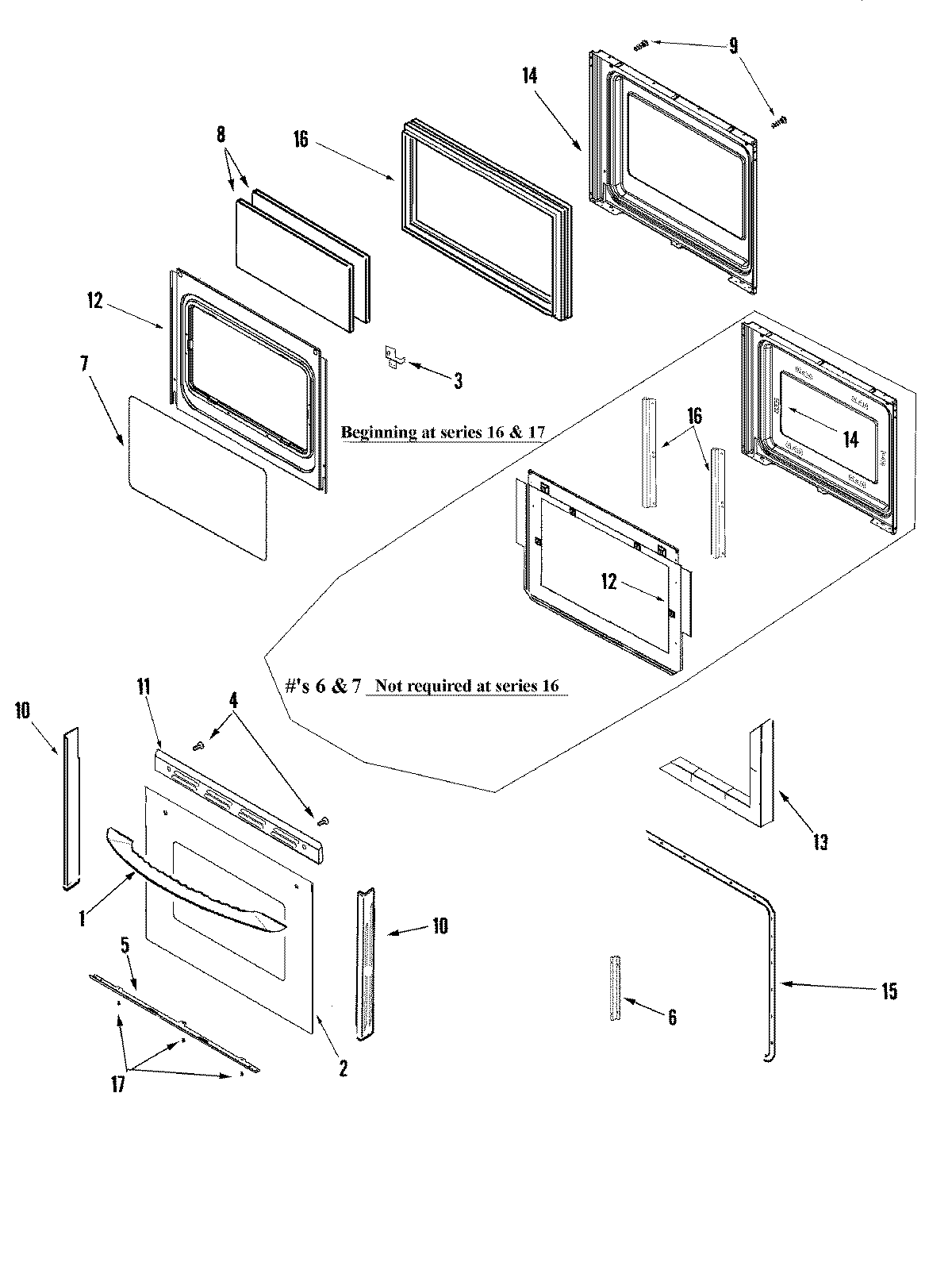

MER6755ACW 03 – DOOR (LOWER)

MER6755ACW 03 – DOOR (LOWER)

Written by

in

MER6755ACW 03 – DOOR (LOWER)

Products

PositionProduct
1WP74011768 Whirlpool Door Handle
2MAY 12002396
3WP74005546 Whirlpool RU Spacer
33801F831-45 Whirlpool Bracket Assembly
33801F832-45 Whirlpool Bracket
3SCREW (10ABX1/4P TR ZN)
4WP74006515 Whirlpool Washer Screw
5WP3807F708-71 Whirlpool Support
6MAY 74003650
7GLASS, DOOR
7NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
874003645 Whirlpool Range Oven Door Inner Glass
10WP3608F117-71 Whirlpool Door Trim
10WP3608F116-71 Whirlpool Door Trim
10WP74009014 Whirlpool Double Tape
11WP98008544 Whirlpool Screw Assembly
11WP3608F141-71 Whirlpool Door Trim
11TAPE, FOIL 29“ X 2“
123601F373-51 Whirlpool Baffle
12MAY 74009502
12MAY 7101P356-60
13MAY 74004569
14NUT, SNAP (ROUND-WHT)
14LINING, DOOR
14MAY 74003642
14NUT, SNAP (ROUND-BLK)
15GASKT-DOOR OVEN
16FRAME, GLASS
163801F886-51 Whirlpool Mounting Bracket
16SCREW
16SCREW, 8 X 1/2
