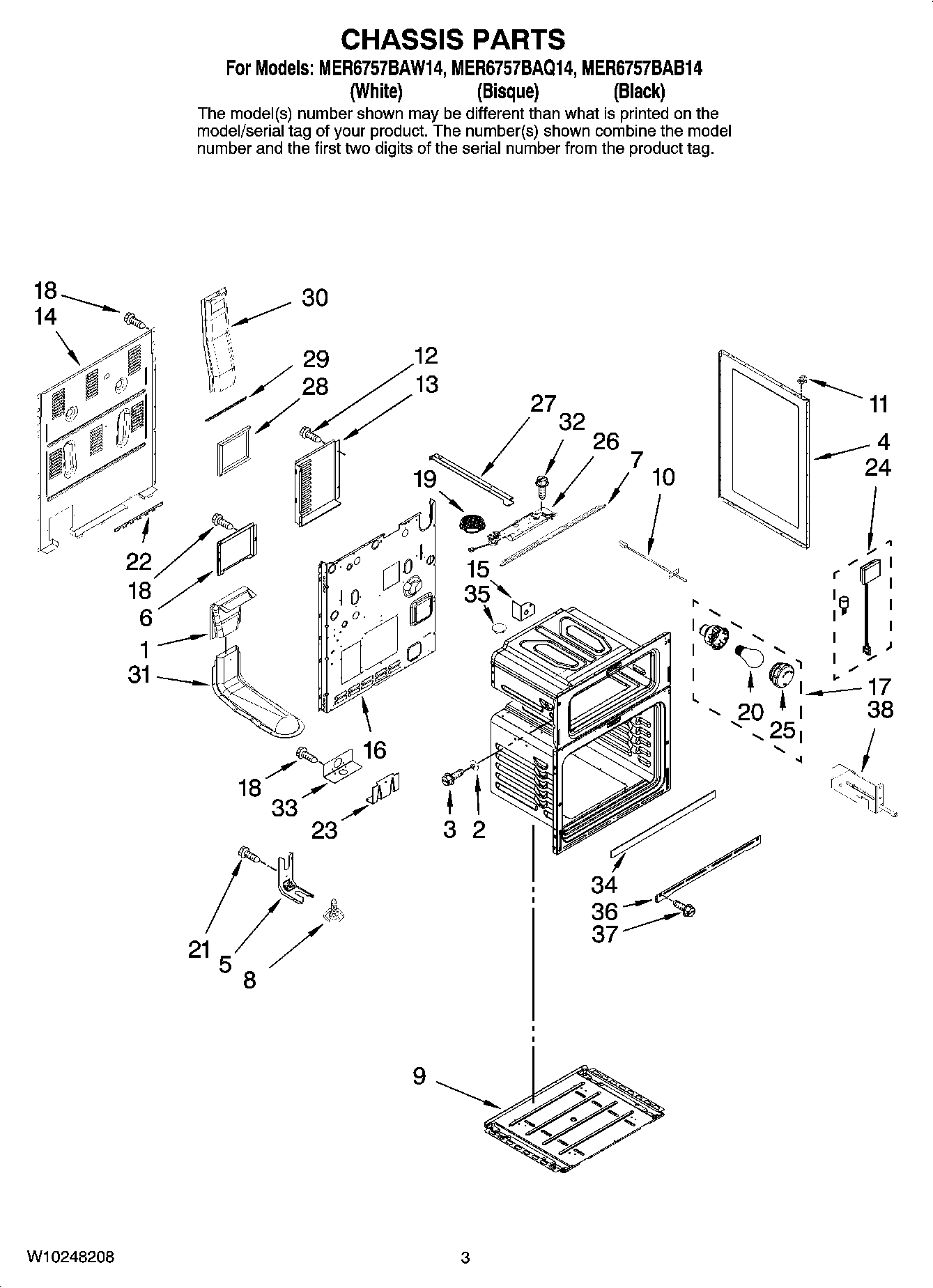

MER6757BAB14 03 – CHASSIS PARTS

Products

Position	Product
NI	MAY 74004520
NI	MAY 74009979
NI	MAY 74007336
1	MAY 74009987
2	MAY 8004P024-60
3	SCREW W/SHOULDER (No.8)
4	MAY 74004965
4	MAY 74003236
4	MAY 74003283
5	WP3801F656-51 Whirlpool Range Anti-Tip Bracket
6	MAY 74010256
7	MAY 74003384
8	W11665456 Whirlpool Range Level Foot
9	MAY W10170904
10	WP7430P044-60 Whirlpool Top
10	12001656 Whirlpool Range Oven Temperature Sensor
11	SPACER, MAIN TOP (LT)
11	SPACER, MAIN TOP (RT)
12	SCREW
13	MAY 74004577
14	MAY 74004576
15	MAY 74007447
15	MAY 74007446
16	MAY 74009961
18	SCREW, 8 X 1/2
19	SCREEN, SMOKE ELIMINATOR
20	MAY Y707319
21	SCREW, ANTI-TIP KIT
22	MAY 74005653
23	MAY 74005500
24	MAY 74009970
24	WP74011278 Whirlpool Light
25	MAY 71001867
26	74007429 Whirlpool Door Latch Assembly Primary Lock
27	MAY W10163331
27	MAY W10163332
28	MAY 74004533
29	MAY 74007642
30	MAY W10201612
31	MAY 74003394
31	MAY 74004522
32	74003975 Whirlpool Screw P1 (8ABX3/8-BLK)
33	W10190166 Whirlpool Service Bracket
34	74004518 Whirlpool Frame Front Seal
35	MAY 74004517
36	MAY 74007478
37	WP98008545 Whirlpool Screw
38	MAY W10201670
