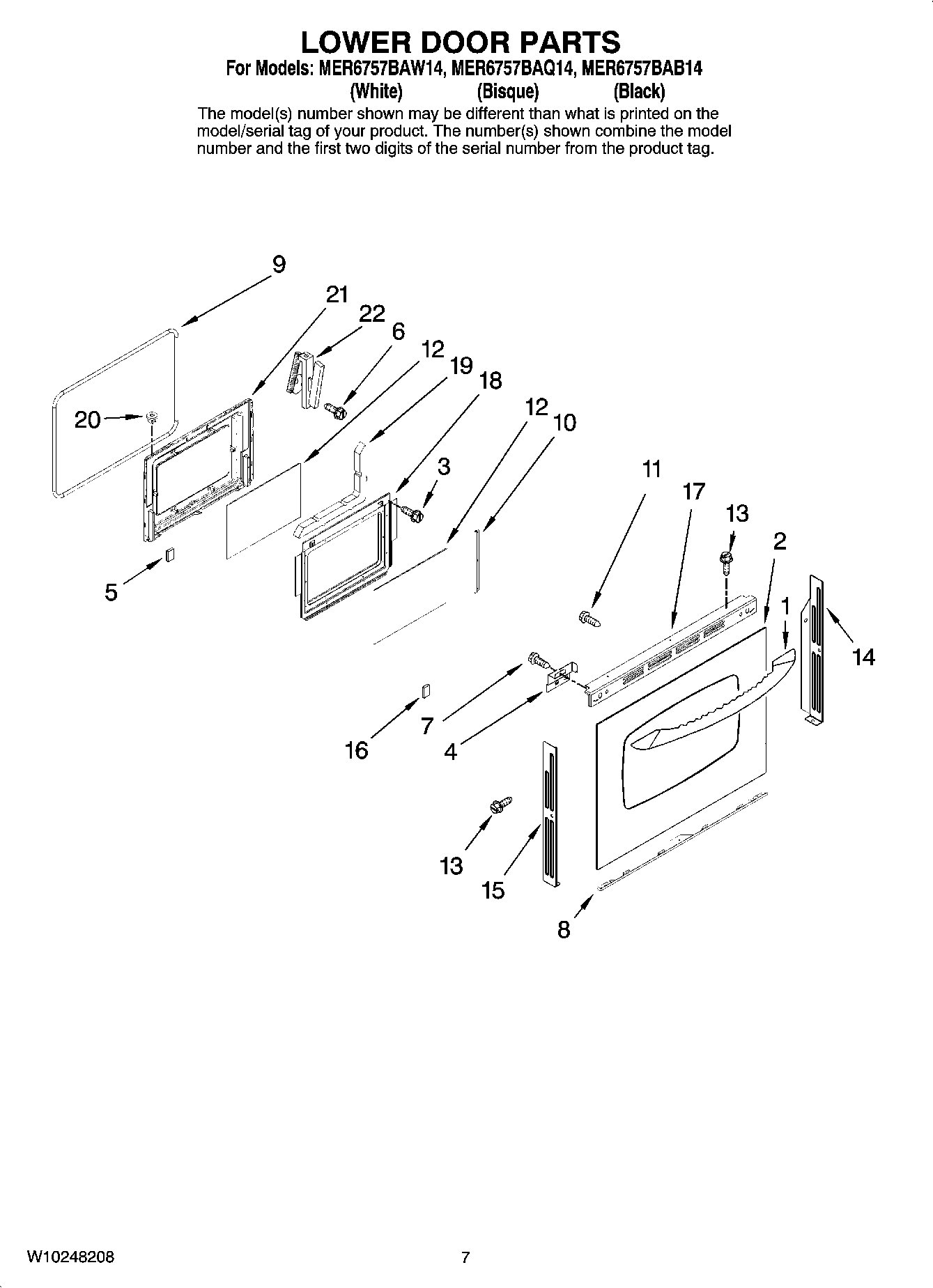

MER6757BAB14 05 – LOWER DOOR PARTS

MER6757BAB14 05 – LOWER DOOR PARTS

Written by

in

MER6757BAB14 05 – LOWER DOOR PARTS

Products

PositionProduct
1MAY 74011845
1WP74011767 Whirlpool Door Handle
1WP74011778 Whirlpool Door Handle
2MAY 12002395
2MAY 12002396
3SCREW
43801F832-45 Whirlpool Bracket
43801F831-45 Whirlpool Bracket Assembly
5WP74005546 Whirlpool RU Spacer
6SCREW (10ABX1/4P TR ZN)
7WP74006515 Whirlpool Washer Screw
8SUPPORT, GLASS (BSQ)
8SUPPORT, GLASS (BLK)
8WP3807F708-71 Whirlpool Support
9MAY W10162384
103801F886-51 Whirlpool Mounting Bracket
11SCREW, 8 X 1/2
1274003645 Whirlpool Range Oven Door Inner Glass
13WP98008545 Whirlpool Screw
14WP3608F116-70 Whirlpool Door Trim
14TRIM, DOOR (BSQ-RT)
14WP3608F116-71 Whirlpool Door Trim
15TRIM, DOOR (BSQ-LT)
15WP3608F117-71 Whirlpool Door Trim
15WP3608F117-70 Whirlpool Door Trim
16WP74004224 Whirlpool Tape
17MAY W10165729
17MAY W10165726
17Trim, Door Top (Bisque)
183601F373-51 Whirlpool Baffle
19INSULATION, OVEN DOOR
20NUT, SNAP (ROUND-BLK)
20NUT, SNAP (ROUND-WHT)
21LINING, DOOR
2274011142 Whirlpool Stove Range Oven Door Hinge and Spring
