MER6757BAB15 04 – UPPER DOOR PARTS – Aparts

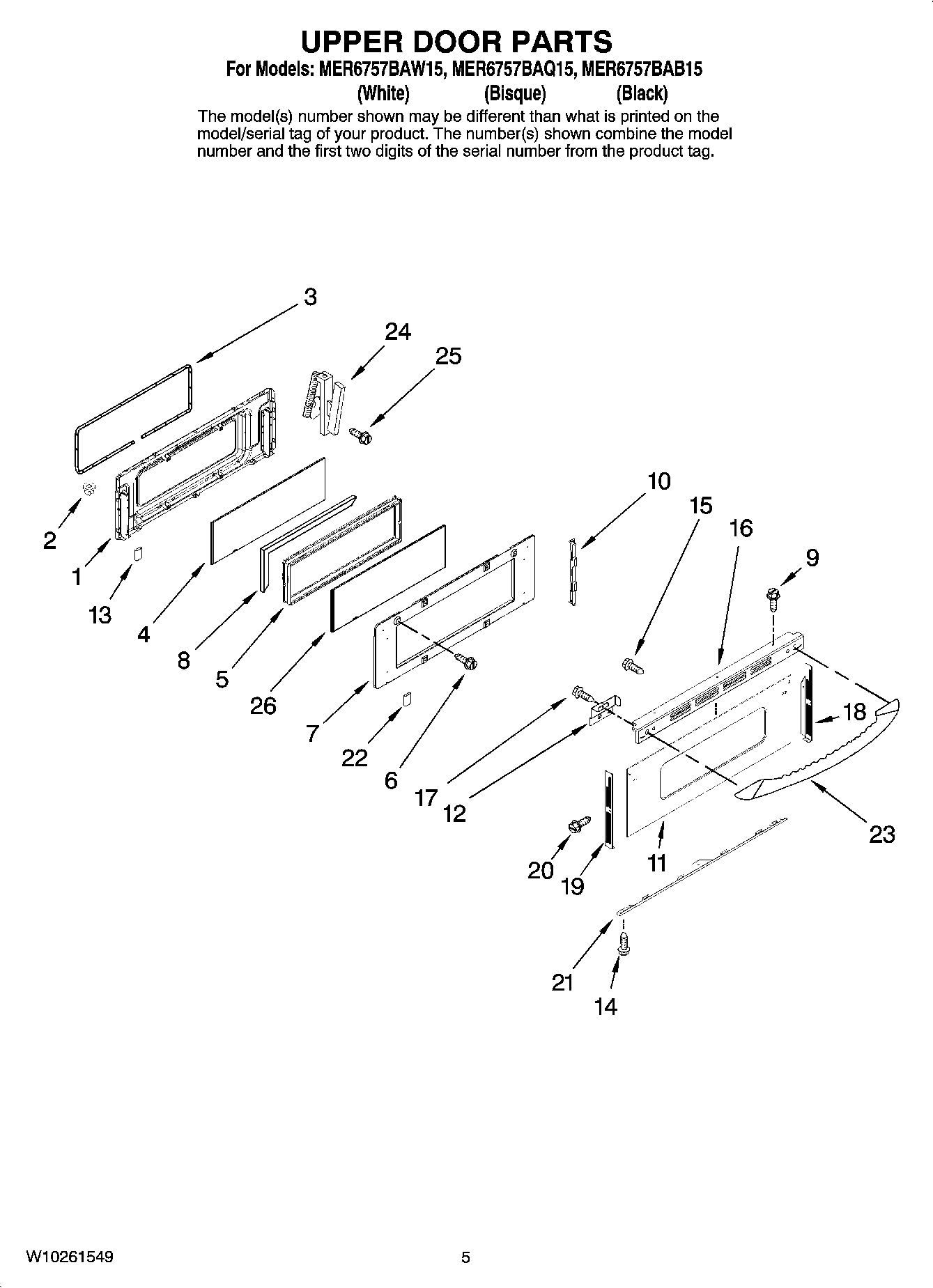

MER6757BAB15 04 – UPPER DOOR PARTS

Products

Position	Product
1	MAY 2402W248-1
2	MAY 7103P141-60
2	NUT, SNAP (ROUND-WHT)
3	MAY 7201P091-60
4	MAY 7902P521-60
5	MAY 7907P034-60
6	MAY 7101P388-60
7	Baffle, Door
8	MAY 7002P488-60
10	MAY 3804F179-45
11	MAY 12002456
11	MAY 12002454
11	MAY 12002455
12	MAY 3801F831-45
12	MAY 3801F832-45
13	MAY 8010P130-60
14	MAY 7101P543-60
15	MAY 7101P376-60
16	MAY W10165726
16	MAY W10165729
16	Trim, Door Top (Bisque)
17	SCREW W/WASHER
18	MAY 3608F118-78
18	MAY 3608F118-71
18	MAY 3608F118-70
19	MAY 3608F119-70
19	MAY 3608F119-71
19	MAY 3608F119-78
20	MAY 7101P636-60
20	Screw (2) (Black)
20	SCREW, HANDLE (BISQUE)
21	MAY 3807F708-70
21	Support, Glass (Bisque)
21	MAY 3807F708-71
22	MAY 8270P139-60
23	MAY 7701P517-60
23	MAY 7701P516-60
23	MAY 7701P518-60
24	MAY W10202401
25	SCREW (10-24X5/16-NI)
26	MAY 7902P520-60
