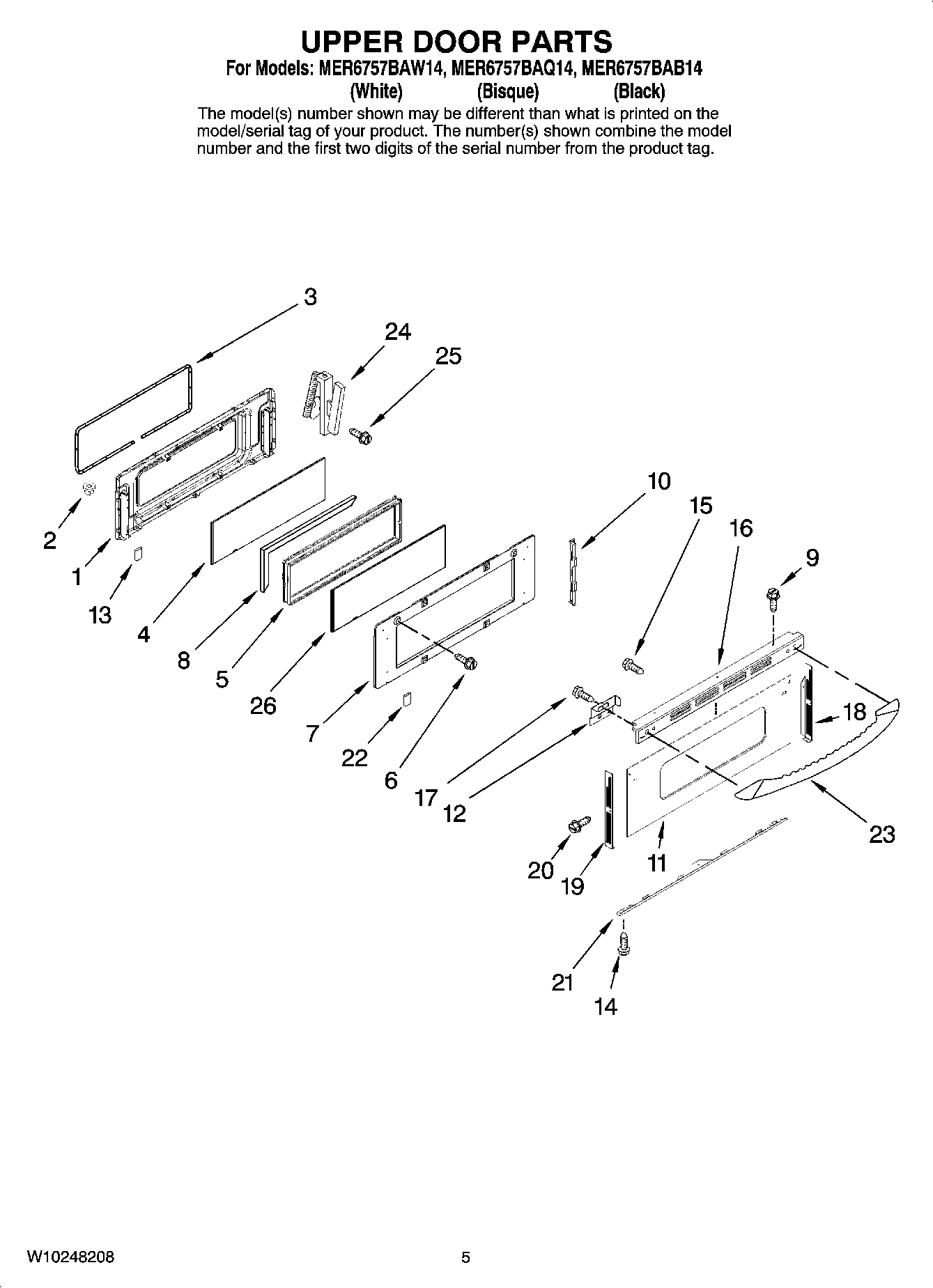

MER6757BAQ14 04 – UPPER DOOR PARTS

MER6757BAQ14 04 – UPPER DOOR PARTS

Written by

in

MER6757BAQ14 04 – UPPER DOOR PARTS

Products

PositionProduct
1MAY 74004564
2NUT, SNAP (ROUND-WHT)
2NUT, SNAP (ROUND-BLK)
3WP7201P091-60 Whirlpool Door Gasket
4MAY 74004566
5MAY 74004567
6SCREW
7MAY 74009976
8MAY 74004569
10MAY 74004592
11MAY 12002455
11MAY 12002456
11MAY 12002454
123801F832-45 Whirlpool Bracket
123801F831-45 Whirlpool Bracket Assembly
13WP74005546 Whirlpool RU Spacer
15SCREW, 8 X 1/2
16Trim, Door Top (Bisque)
16MAY W10165726
16MAY W10165729
17WP74006515 Whirlpool Washer Screw
18MAY 74009747
18MAY 74009749
18MAY 74009745
19MAY 74009746
19MAY 74009748
19MAY 74009750
20WP98008544 Whirlpool Screw Assembly
20WP98008545 Whirlpool Screw
20WP74009541 Whirlpool Screw Assembly
21SUPPORT, GLASS (BLK)
21WP3807F708-71 Whirlpool Support
21SUPPORT, GLASS (BSQ)
22WP74004224 Whirlpool Tape
23WP74011778 Whirlpool Door Handle
23WP74011767 Whirlpool Door Handle
23WP74011768 Whirlpool Door Handle
24MAY W10202401
25SCREW (10-24X5/16-NI)
26MAY 74004571
