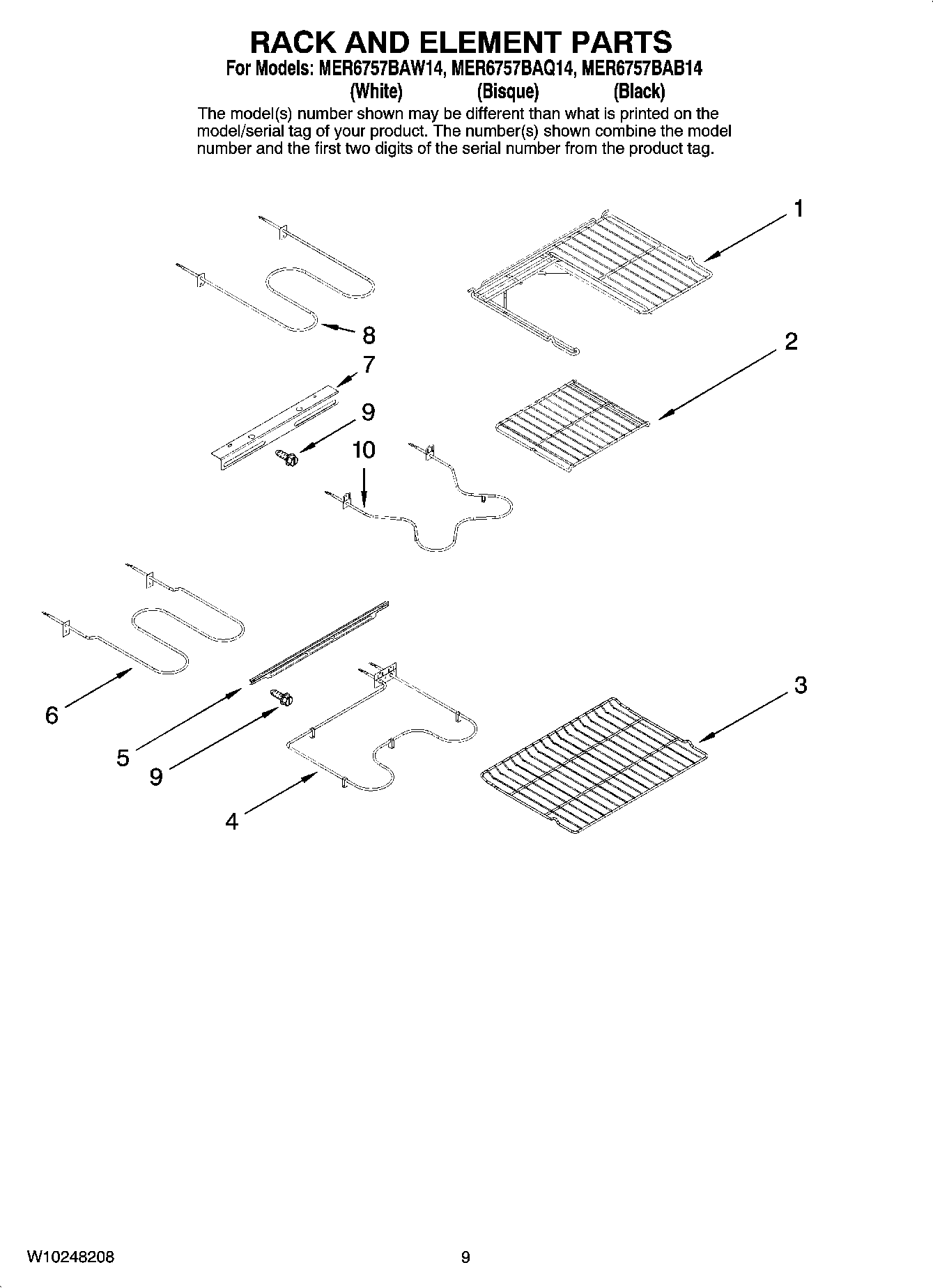

MER6757BAQ14 06 – RACK AND ELEMENT PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
NI	PAINT, PRESSURIZED SPRAY (12OZ. PRIMER (WHITE))
NI	CLIP, WIRE LOCK
NI	PAINT, PRESSURIZED SPRAY (12 OZ.) (BLACK)
NI	8019P026-60 Whirlpool Clip
NI	Refinishing Material (Enamel, Black (1 Qt. Uncut))
NI	REFINISHING MATERIAL (KIT, PORCELAIN REPAIR (WHITE))
NI	MAY 74009975
NI	MAY 74009965
NI	HARNESS, WIRE COOKTOP RIGHT)
NI	MAY 4159193
NI	MAY 5171P432-60
NI	Harness, Main
NI	Harness, Inf.Sw. (Left)
NI	KIT, HARDWARE ADAPTER
NI	PAINT, PRESSURIZED SPRAY (12OZ. WHITE)
NI	PAINT, PRESSURIZED SPRAY (12OZ. BLACK)
NI	PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ.))
NI	PAINT, TOUCH-UP (1/2OZ. WHITE)
NI	INSULATION (1-1/2" X 24" X 120")
NI	REFINISHING MATERIAL, OVEN LINER TOUCH UP PAINT
NI	PAINT, TOUCH-UP (1/2OZ. BLACK)
NI	ACCESSORY PARTS, ALUMINUM FOIL
NI	PAINT, BULK (1 QT. WHITE (UNCUT))
NI	MAY 4392899
NI	INSULATION (2-1/2" X 22" X 120")
NI	MAY 4392901
1	WPW10273862 Whirlpool Oven Rack
2	INSERT, HALF RACK 30“
3	WPW10282492 Whirlpool Oven Rack
4	WP7406P428-60 Whirlpool Oven Bake Element
5	SUPPORT, BROIL ELEMENT
6	WPW10310249 Whirlpool Broil Element
7	MAY 3807F749-45
8	MAY W10201551
9	SCREW, 8 X 1/2
10	74004105 Whirlpool Range Upper Oven Bake Element
