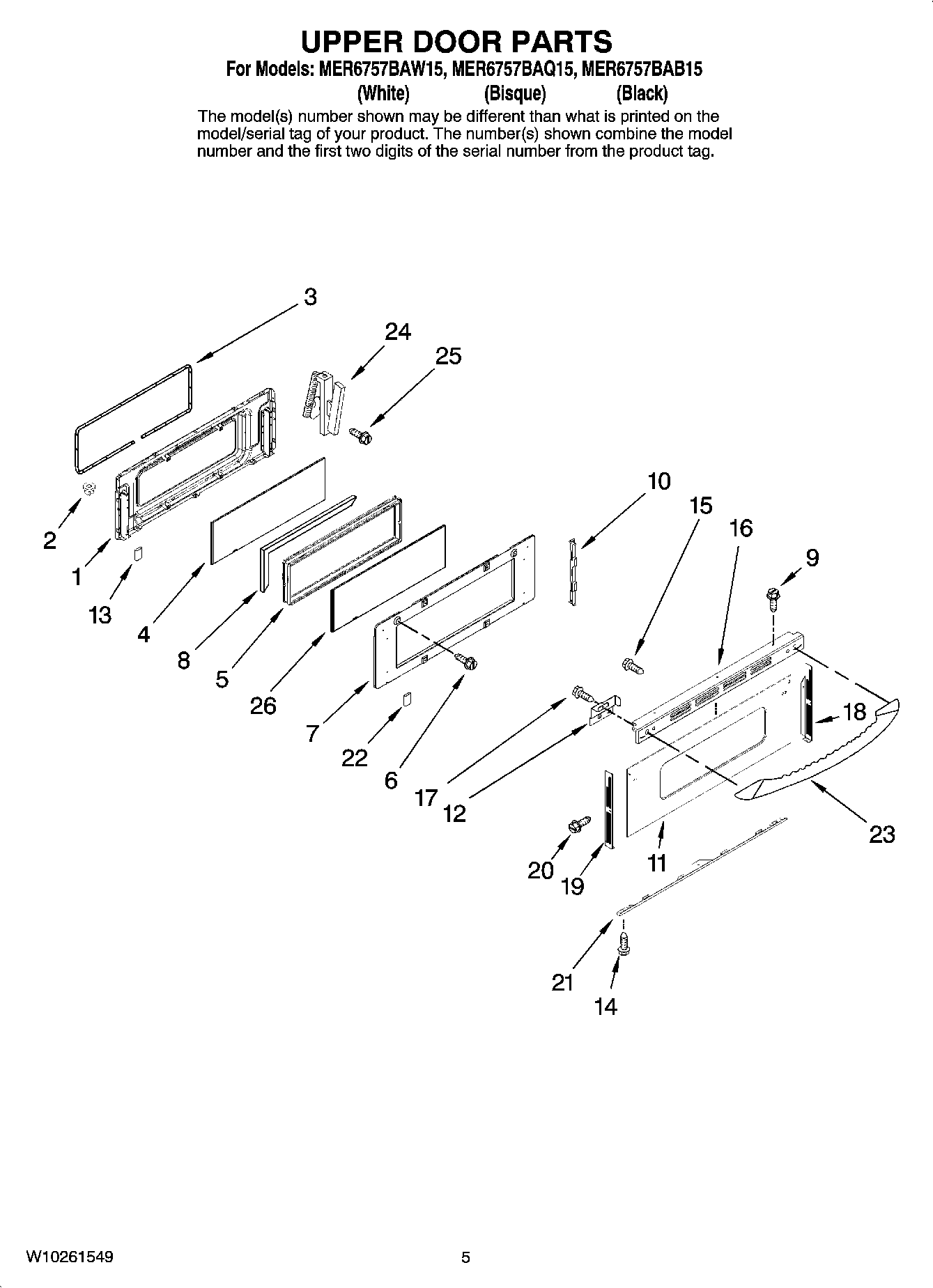

MER6757BAQ15 04 – UPPER DOOR PARTS
Written by
in
MER6757BAQ15 04 – UPPER DOOR PARTS
Products
Position
Product
1
MAY 2402W248-1
2
MAY 7103P141-60
2
NUT, SNAP (ROUND-WHT)
3
MAY 7201P091-60
4
MAY 7902P521-60
5
MAY 7907P034-60
6
MAY 7101P388-60
7
Baffle, Door
8
MAY 7002P488-60
10
MAY 3804F179-45
11
MAY 12002456
11
MAY 12002454
11
MAY 12002455
12
MAY 3801F831-45
12
MAY 3801F832-45
13
MAY 8010P130-60
14
MAY 7101P543-60
15
MAY 7101P376-60
16
MAY W10165726
16
MAY W10165729
16
Trim, Door Top (Bisque)
17
SCREW W/WASHER
18
MAY 3608F118-78
18
MAY 3608F118-71
18
MAY 3608F118-70
19
MAY 3608F119-70
19
MAY 3608F119-71
19
MAY 3608F119-78
20
MAY 7101P636-60
20
Screw (2) (Black)
20
SCREW, HANDLE (BISQUE)
21
MAY 3807F708-70
21
Support, Glass (Bisque)
21
MAY 3807F708-71
22
MAY 8270P139-60
23
MAY 7701P517-60
23
MAY 7701P516-60
23
MAY 7701P518-60
24
MAY W10202401
25
SCREW (10-24X5/16-NI)
26
MAY 7902P520-60
←
