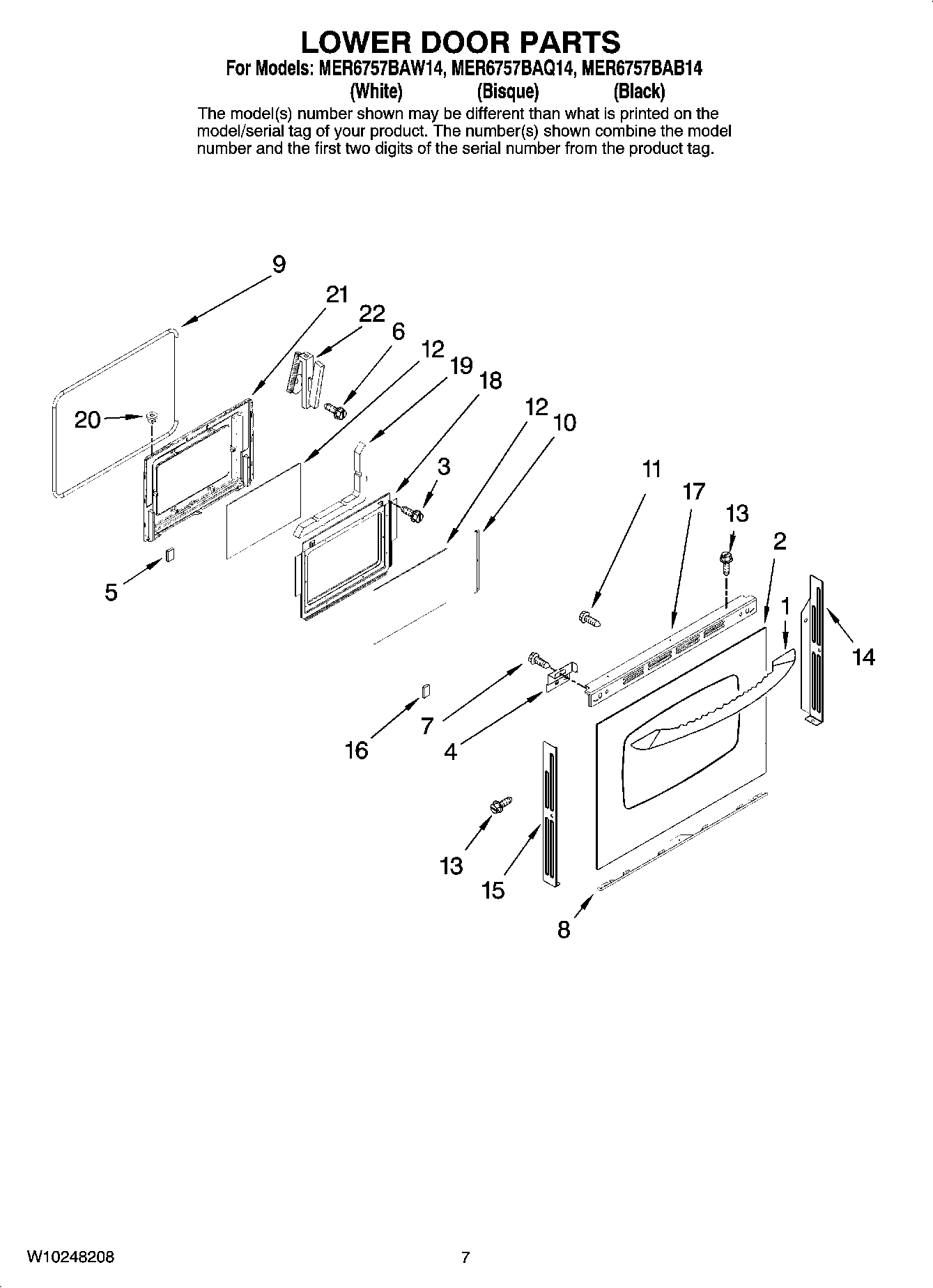

MER6757BAW14 05 – LOWER DOOR PARTSadmin2025-04-26T09:13:12+00:00MER6757BAW14 05 – LOWER DOOR PARTS
Products
| Position | Product |
|---|
| 1 | MAY 74011845 |
| 1 | WP74011767 Whirlpool Door Handle |
| 1 | WP74011778 Whirlpool Door Handle |
| 2 | MAY 12002395 |
| 2 | MAY 12002396 |
| 3 | SCREW |
| 4 | 3801F832-45 Whirlpool Bracket |
| 4 | 3801F831-45 Whirlpool Bracket Assembly |
| 5 | WP74005546 Whirlpool RU Spacer |
| 6 | SCREW (10ABX1/4P TR ZN) |
| 7 | WP74006515 Whirlpool Washer Screw |
| 8 | SUPPORT, GLASS (BSQ) |
| 8 | SUPPORT, GLASS (BLK) |
| 8 | WP3807F708-71 Whirlpool Support |
| 9 | MAY W10162384 |
| 10 | 3801F886-51 Whirlpool Mounting Bracket |
| 11 | SCREW, 8 X 1/2 |
| 12 | 74003645 Whirlpool Range Oven Door Inner Glass |
| 13 | WP98008545 Whirlpool Screw |
| 14 | WP3608F116-70 Whirlpool Door Trim |
| 14 | TRIM, DOOR (BSQ-RT) |
| 14 | WP3608F116-71 Whirlpool Door Trim |
| 15 | TRIM, DOOR (BSQ-LT) |
| 15 | WP3608F117-71 Whirlpool Door Trim |
| 15 | WP3608F117-70 Whirlpool Door Trim |
| 16 | WP74004224 Whirlpool Tape |
| 17 | MAY W10165729 |
| 17 | MAY W10165726 |
| 17 | Trim, Door Top (Bisque) |
| 18 | 3601F373-51 Whirlpool Baffle |
| 19 | INSULATION, OVEN DOOR |
| 20 | NUT, SNAP (ROUND-BLK) |
| 20 | NUT, SNAP (ROUND-WHT) |
| 21 | LINING, DOOR |
| 22 | 74011142 Whirlpool Stove Range Oven Door Hinge and Spring |
