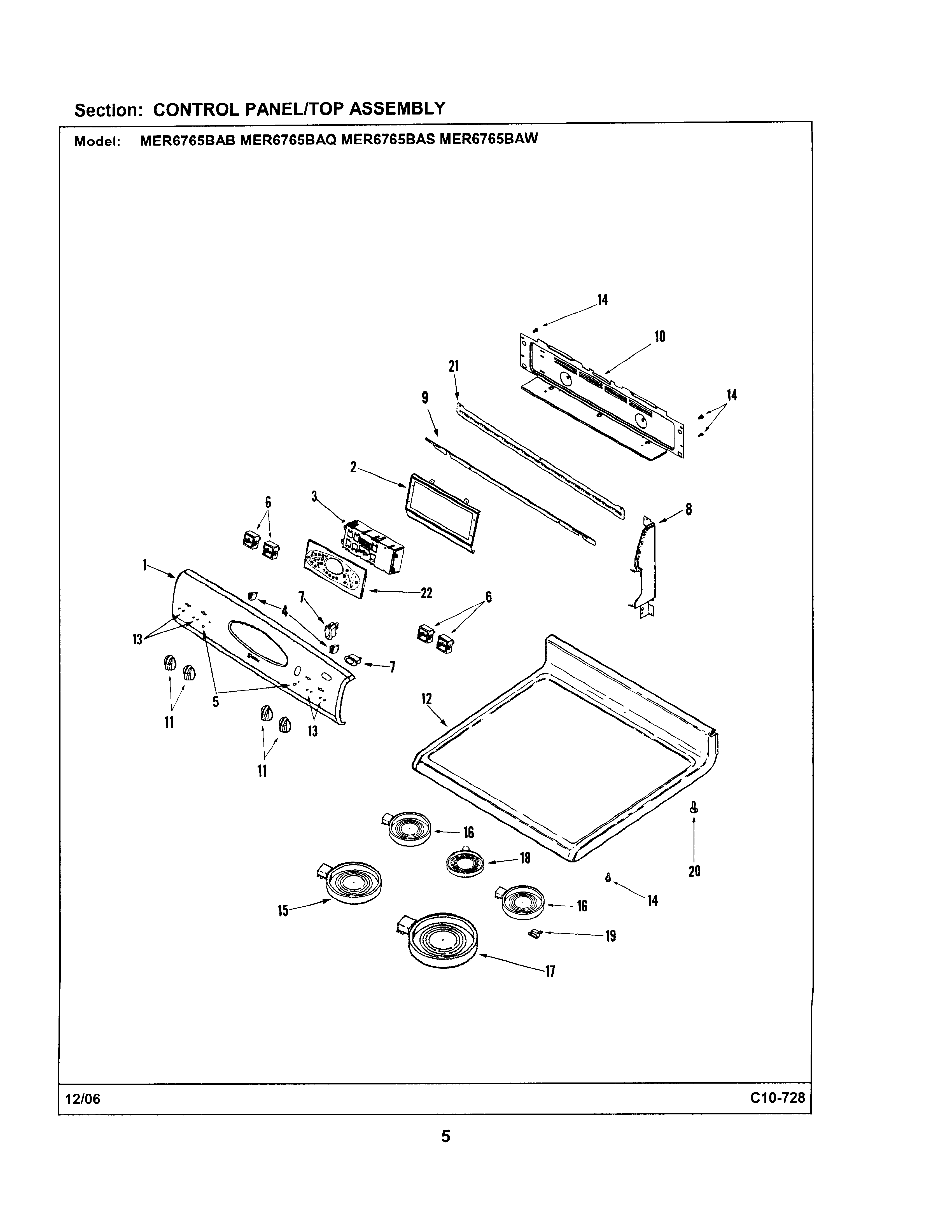

MER6765BAQ 02 – CONTROL PANEL/TOP ASSEMBLY

MER6765BAQ 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

MER6765BAQ 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1PANEL, BACKGUARD (BSQ)
2BRACKET, CLOCK
3W10769079-includeCORE Whirlpool W10769079 Refrigerator Electronic Control Board + Core
4WP74004153 Whirlpool Indicator Light
5WP7730P011-60 Whirlpool Indicator Lens
6WP7403P239-60 Whirlpool Oven Switch
6WP7403P238-60 Whirlpool Infinite Switch (Small Element)
6WP74003122 Whirlpool Infinite Switch Assembly (Dual)
77403P984-60 Whirlpool RO Switch
8MAY 74010714
8MAY 74010712
8WP74003976 Whirlpool Screw
8WP74009541 Whirlpool Screw Assembly
9MAY 74009978
10SCREW (8BX3/8-NI)
10MAY 74010804
1174008946 Whirlpool Oven Bisque Knob
12TOP ASSEMBLY (BSQ)
13SCREW
14SCREW
15W10823715 Whirlpool Radiant Surface Element
16W10823711 Whirlpool Surface Element Left Front and Right Rear
17W10823713 Whirlpool Surface Element
18ELEMENT (CTR)
18WP74009899 Whirlpool Element
198004P093-60 Whirlpool Support C
20W11189172 Whirlpool Glide Drawer
21MAY 74009701
22MAY 7728P495-60
