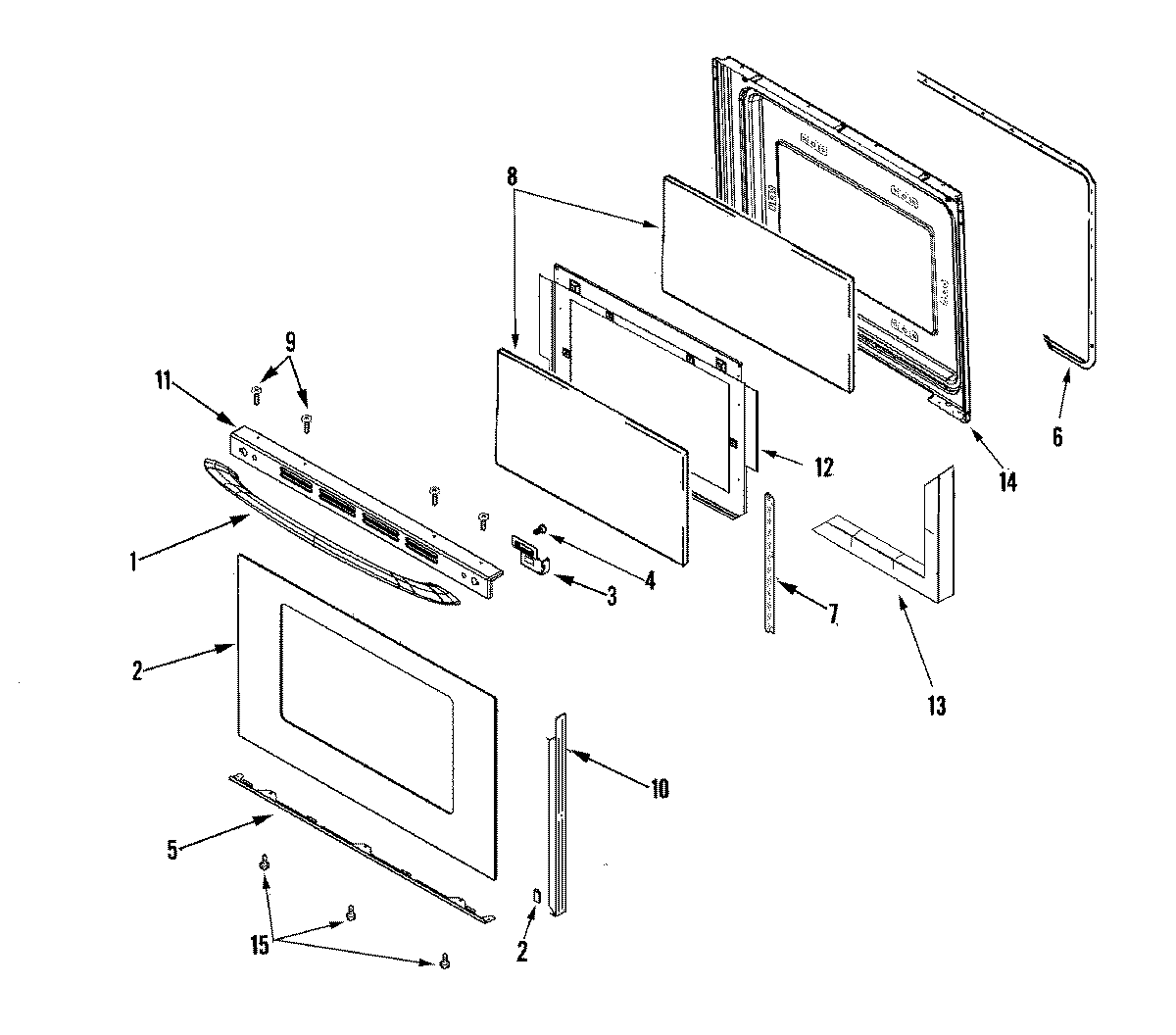

MER6765BAQ 03 – DOOR (LOWER)

MER6765BAQ 03 – DOOR (LOWER)

Written by

in

MER6765BAQ 03 – DOOR (LOWER)

Products

PositionProduct
1WP74011778 Whirlpool Door Handle
212002397 Whirlpool Oven Door Glass Kit (Bisque)
33801F831-45 Whirlpool Bracket Assembly
33801F832-45 Whirlpool Bracket
3WP74006515 Whirlpool Washer Screw
3SCREW (10ABX1/4P TR ZN)
3WP74005546 Whirlpool RU Spacer
5SUPPORT, GLASS (BSQ)
6GASKT-DOOR OVEN
73801F886-51 Whirlpool Mounting Bracket
874003645 Whirlpool Range Oven Door Inner Glass
10TRIM, DOOR (BSQ-RT)
10TRIM, DOOR (BSQ-LT)
10WP74009014 Whirlpool Double Tape
10WP74009541 Whirlpool Screw Assembly
11MAY 74009691
123601F373-51 Whirlpool Baffle
13INSULATION, OVEN DOOR
14SCREW
14NUT, SNAP (ROUND-WHT)
14NUT, SNAP (ROUND-BLK)
14LINING, DOOR
15SCREW, 8 X 1/2
