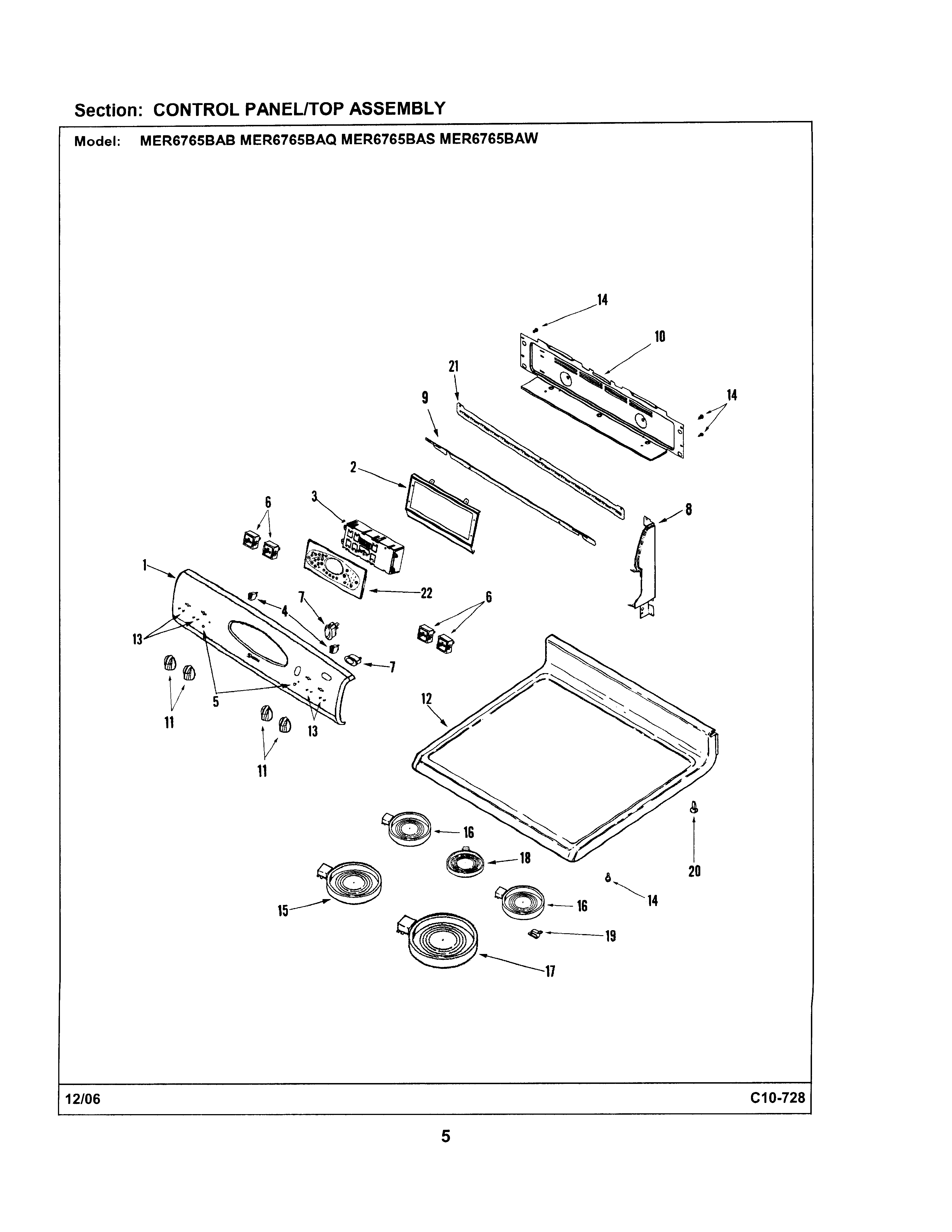

MER6765BAS 02 – CONTROL PANEL/TOP ASSEMBLY

Products

Position	Product
1	MAY 7704P099-60
2	BRACKET, CLOCK
3	W10769079-includeCORE Whirlpool W10769079 Refrigerator Electronic Control Board + Core
4	WP74004153 Whirlpool Indicator Light
5	WP7730P011-60 Whirlpool Indicator Lens
6	WP74003122 Whirlpool Infinite Switch Assembly (Dual)
6	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
6	WP7403P239-60 Whirlpool Oven Switch
7	7403P985-60 Whirlpool Rocker Switch (Black)
8	WP98008545 Whirlpool Screw
8	WP74003976 Whirlpool Screw
8	MAY 74010202
8	MAY 74010201
9	MAY 74009978
10	SCREW (8BX3/8-NI)
10	MAY 74010804
11	MAY 74008945
12	MAY 5706X615-09
13	SCREW
14	SCREW
15	W10823715 Whirlpool Radiant Surface Element
16	W10823711 Whirlpool Surface Element Left Front and Right Rear
17	W10823713 Whirlpool Surface Element
18	ELEMENT (CTR)
18	WP74009899 Whirlpool Element
19	8004P093-60 Whirlpool Support C
20	W11189172 Whirlpool Glide Drawer
21	MAY 74009701
22	MAY 7728P494-60
