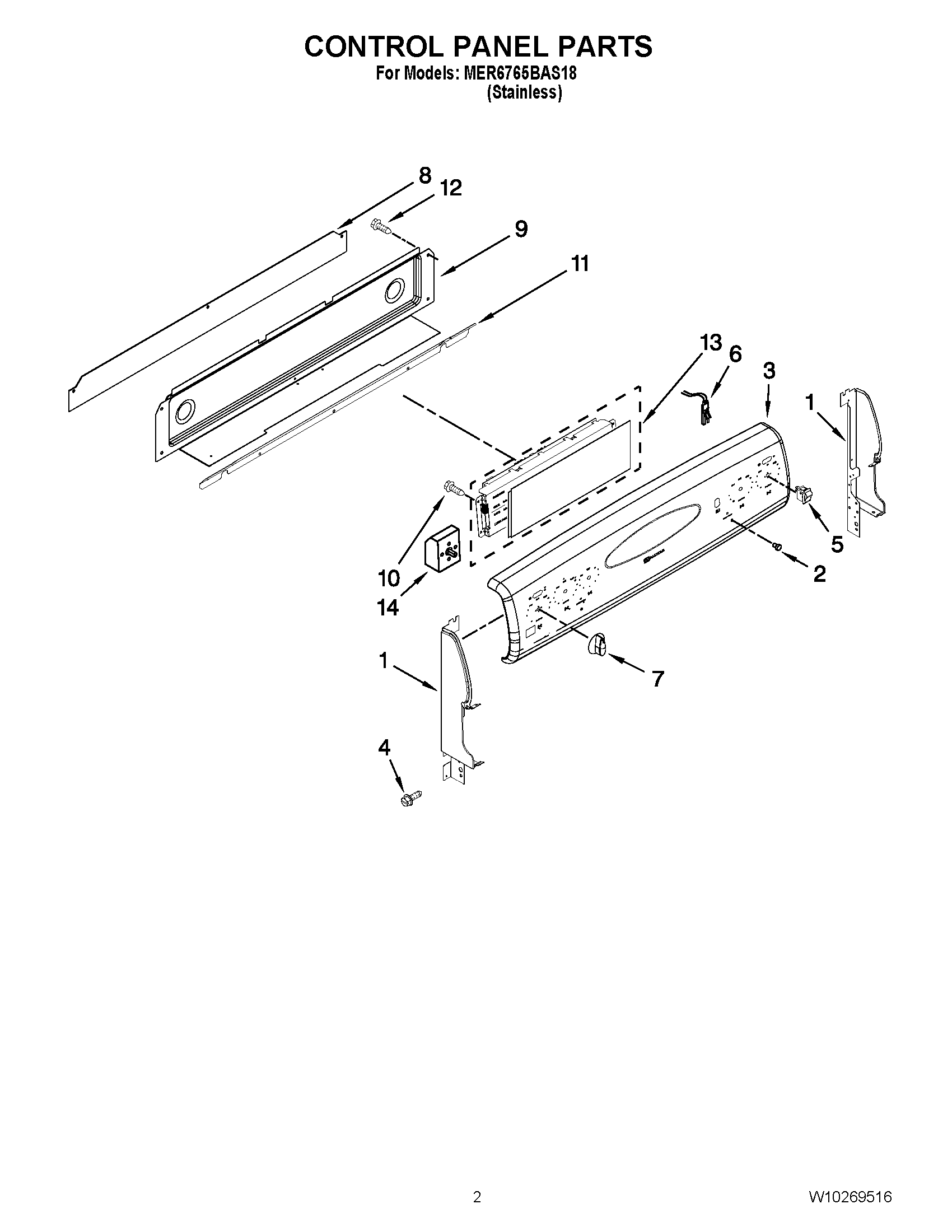

MER6765BAS18 02 – CONTROL PANEL PARTS

MER6765BAS18 02 – CONTROL PANEL PARTS

Written by

in

MER6765BAS18 02 – CONTROL PANEL PARTS

Products

PositionProduct
1MAY 3807F734-70
1MAY 3807F733-70
2WP7730P011-60 Whirlpool Indicator Lens
3MAY 7704P099-60
4Screw (2) (Black)
5Switch, Rocker
6MAY 7407P136-60
7KNOBS (BLACK (4))
8MAY 3604F387-51
9MAY 4005F803-51
10MAY 7101P500-60
11MAY 3604F405-51
12MAY 7101P434-60
13LINER (NOT A SERVICEABLE PART)
14WP7403P239-60 Whirlpool Oven Switch
14SWITCH, INFINITE (LF)
14WP7403P238-60 Whirlpool Infinite Switch (Small Element)
