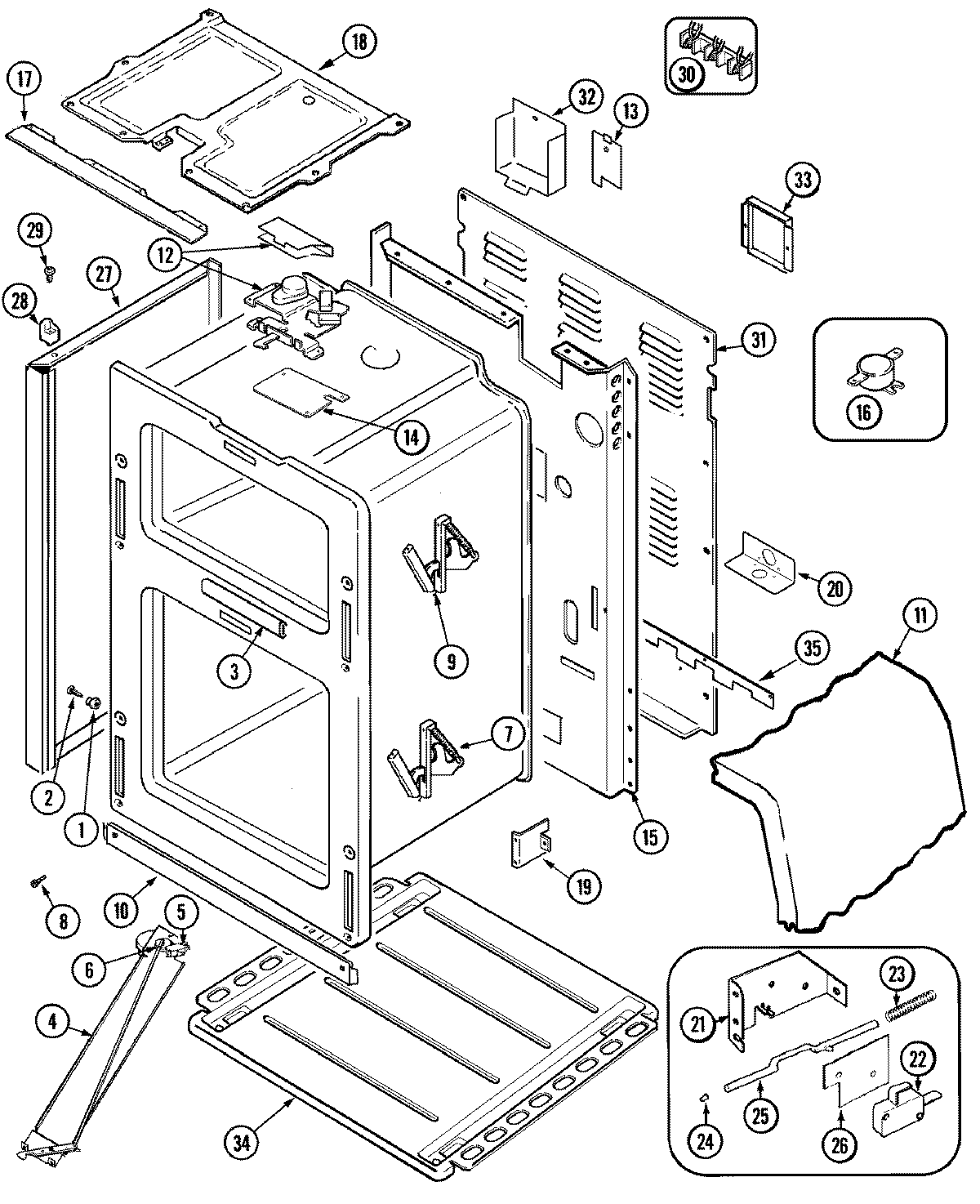

MER6769BAW 01 – BODY

Products

Position	Product
1	MAY 8004P024-60
1	3823F015-51 Whirlpool Spacer
2	W11693756 Whirlpool Screw Assembly
3	74004518 Whirlpool Frame Front Seal
4	MAY 74005485
5	MAY 74005532
6	MAY 74005531
7	HINGE-OVEN DOOR
9	MAY 74004523
9	SCREW (10-24X5/16-NI)
10	WP98008544 Whirlpool Screw Assembly
10	MAY 74007479
10	MAY 74004525
11	MAY 74004520
11	MAY 74004526
12	74003975 Whirlpool Screw P1 (8ABX3/8-BLK)
12	MAY 74007642
12	74007429 Whirlpool Door Latch Assembly Primary Lock
12	MAY 74005495
13	MAY 74005484
14	MAY 74005496
14	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
15	MAY 74006550
15	MAY 74002334
16	WP74004530 Whirlpool Limit Switch
17	MAY 74003384
18	MAY 74007367
18	MAY 74005505
18	MAY 74007366
19	MAY 74005500
19	MAY 74005499
20	W10190166 Whirlpool Service Bracket
21	BRACKET, SWITCH ACTUATOR
21	WPY706189 Whirlpool Stove Screw
22	MAY 7101P330-60
24	MAY 74001631
25	ROD, DOOR LIGHT SWITCH
26	MAY 74001872
27	MAY 74003236
27	SCREW
28	SPACER, MAIN TOP (LT)
28	SPACER, MAIN TOP (RT)
29	MAY 7101P313-60
30	WPW10245259 Whirlpool Terminal Block
30	MAY 74004532
31	MAY 74004576
32	MAY 74004577
33	MAY 4005F427-51
34	MAY 74007449
34	MAY 74004828
35	MAY 74005653
