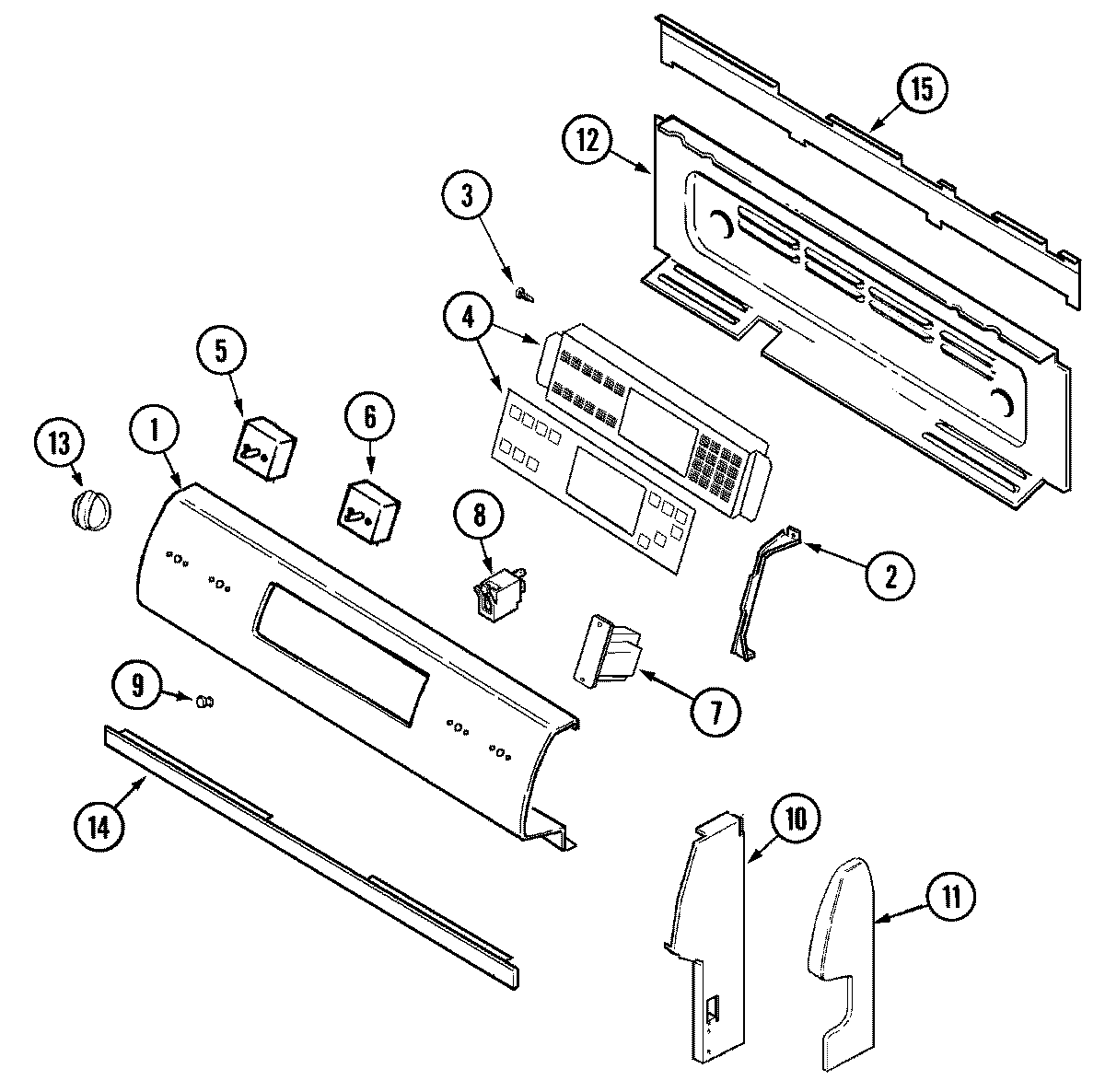

MER6769BAW 02 – CONTROL PANEL

Products

Position	Product
1	MAY 74006559
2	MAY 7101P348-60
2	MAY 74004541
4	MAY 74006213
4	SCREW
5	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
6	SCREW
6	WP7403P239-60 Whirlpool Oven Switch
7	MAY 74006520
8	WP74004153 Whirlpool Indicator Light
9	WP7730P011-60 Whirlpool Indicator Lens
10	MAY 74005393
10	MAY 74005392
11	MAY 74004548
11	MAY 74004549
11	WP98008544 Whirlpool Screw Assembly
11	MAY 74002451
12	MAY 74004550
13	WP74003611 Whirlpool Oven White Knob
14	MAY 74003374
15	SCREW (8BX3/8-NI)
15	MAY 74004551
15	MAY 74006376
16	SCREW
16	MAY 74009385
16	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
16	MAY 74006488
16	MAY 74006551
16	MAY 74006552
16	MAY 74006553
16	MAY 74007644
16	MAY 74007369
16	WP74003482 Whirlpool Auxiliary Relay
16	MAY 74004537
16	MAY 74005489
16	MAY 74004687
17	MAY 74005918
17	MAY 16009690
17	MAY 71002782
18	MAY 74004581
18	MAY 16026020
