MER6770AAC 01 – BODY
Written by
in

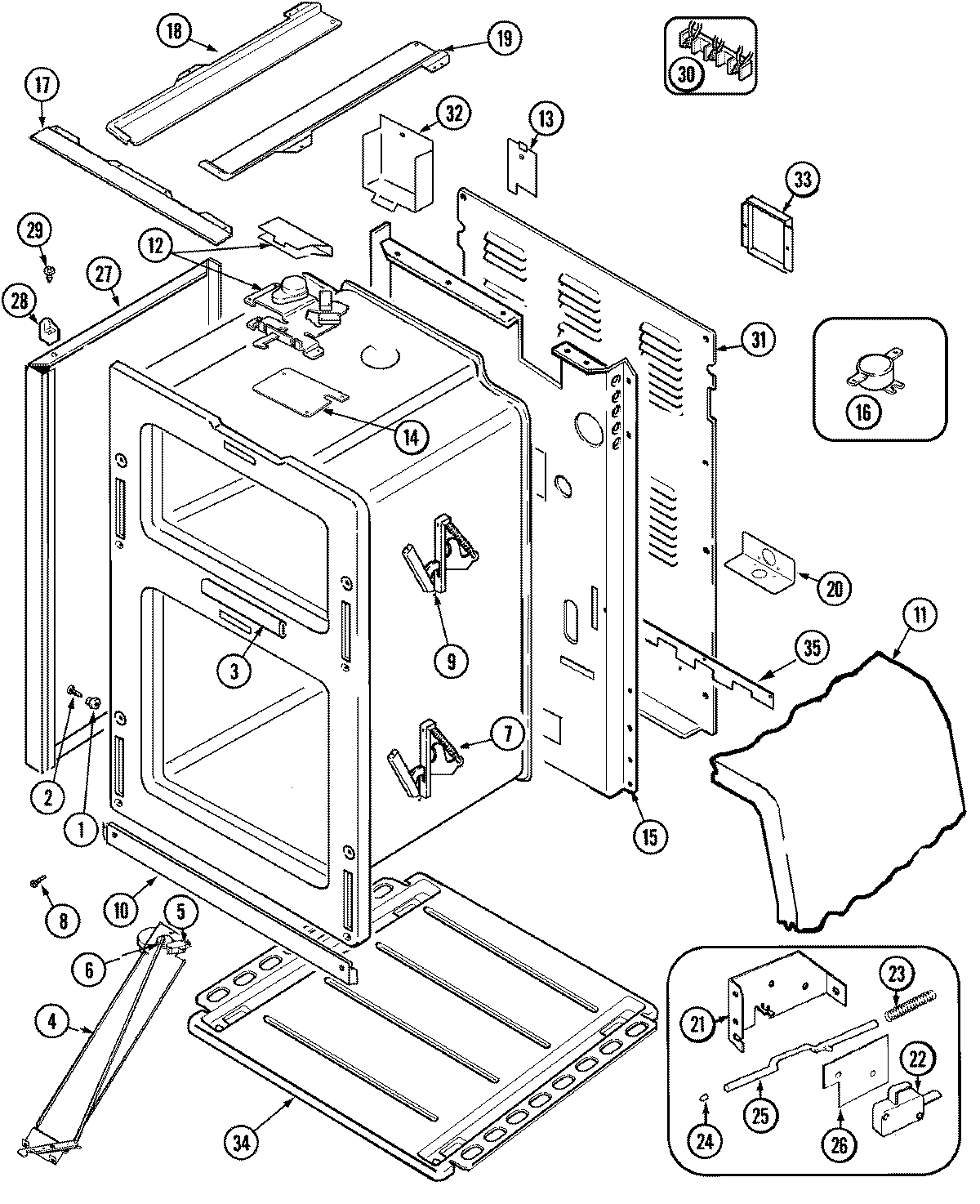

MER6770AAC 01 – BODY
Products
Position
Product
1
MAY 8004P024-60
2
W11693756 Whirlpool Screw Assembly
3
74004518 Whirlpool Frame Front Seal
4
MAY 74005485
4
MAY 74004893
5
MAY 74005532
5
MAY 74004911
5
MAY 74004671
6
MAY 74005531
6
MAY 74004673
7
HINGE-OVEN DOOR
9
SCREW (10-24X5/16-NI)
9
MAY 74004523
10
SCREW (8ABX1/2“-BLK)
10
MAY 74004524
11
MAY 74004520
11
MAY 74007338
11
MAY 74007337
11
MAY 74007336
11
MAY 74004526
12
MAY 74004528
12
MAY 74005495
12
74003975 Whirlpool Screw P1 (8ABX3/8-BLK)
13
MAY 74004531
13
MAY 74005484
14
MAY 74004527
15
MAY 74004529
16
WP74004530 Whirlpool Limit Switch
17
MAY 74003384
18
MAY 74005505
18
MAY 74003379
19
MAY 74003378
19
NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
20
W10190166 Whirlpool Service Bracket
21
BRACKET, SWITCH ACTUATOR
21
WPY706189 Whirlpool Stove Screw
22
MAY 7101P330-60
24
MAY 74001631
25
ROD, DOOR LIGHT SWITCH
26
MAY 74001872
27
MAY 74003283
27
SCREW
28
SPACER, MAIN TOP (LT)
28
SPACER, MAIN TOP (RT)
29
MAY 7101P313-60
30
WP7103P027-60 Whirlpool Nut
30
WPW10245259 Whirlpool Terminal Block
30
MAY 74004532
31
MAY 74004576
32
MAY 74004577
33
MAY 4005F427-51
34
MAY 74004828
35
MAY 74005653
←
