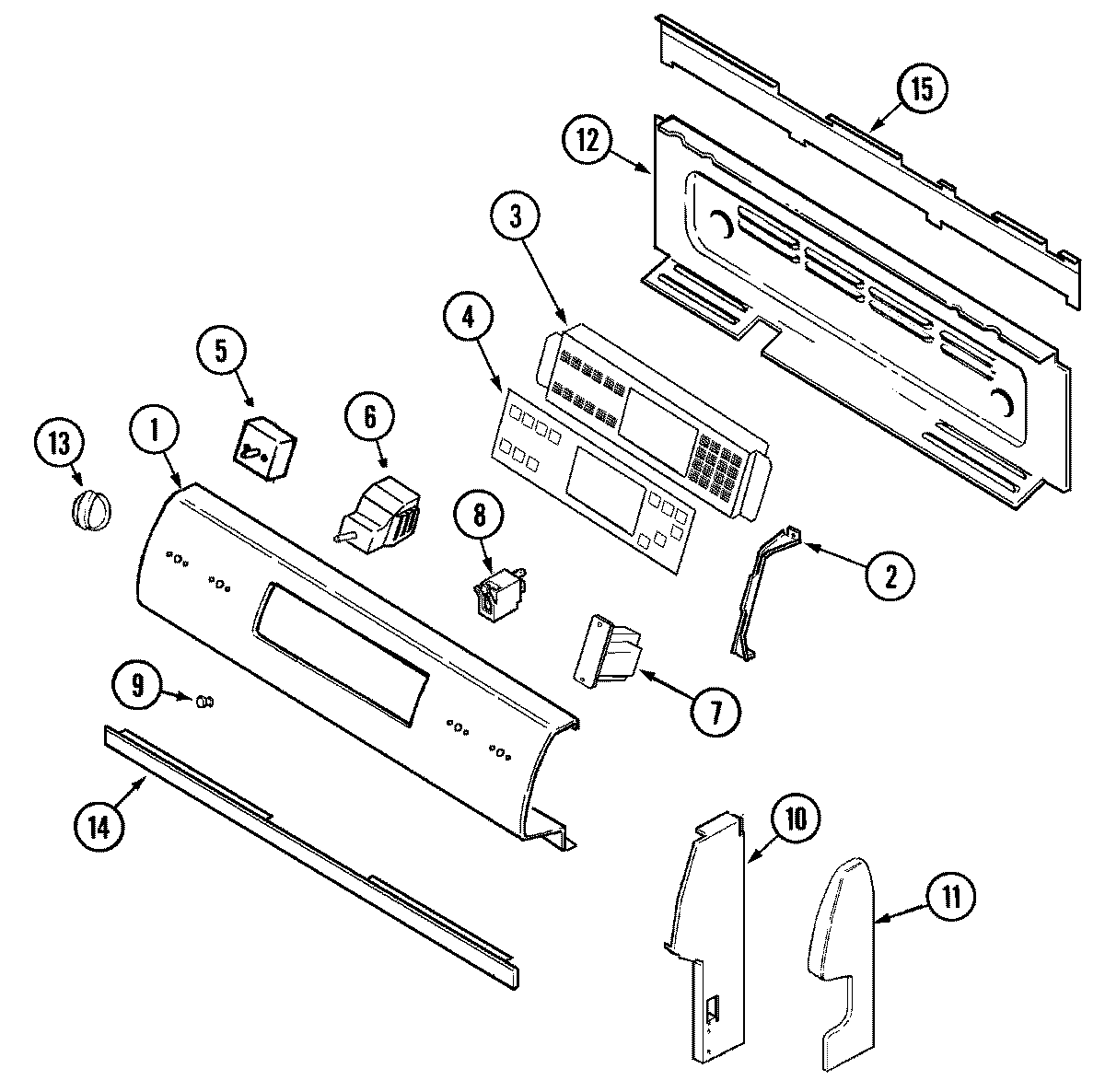

MER6770AAQ 02 – CONTROL PANEL
Written by
in
MER6770AAQ 02 – CONTROL PANEL
Products
Position
Product
1
MAY 74005234
2
MAY 74004541
2
MAY 7101P348-60
3
MAY 74004542
3
SCREW
4
MAY 74005235
5
SCREW
5
WP7403P239-60 Whirlpool Oven Switch
5
WP7403P238-60 Whirlpool Infinite Switch (Small Element)
6
MAY 71003201
6
MAY 74002144
7
MAY 74004545
8
WP74004153 Whirlpool Indicator Light
9
WP7730P011-60 Whirlpool Indicator Lens
10
MAY 74003604
10
MAY 74003603
11
MAY 74004982
11
MAY 74005237
11
WP74009541 Whirlpool Screw Assembly
11
MAY 74005236
12
MAY 74004550
13
MAY 74005143
14
MAY 74003374
15
SCREW (8BX3/8-NI)
15
MAY 74004551
15
MAY 74006376
16
MAY 74004554
16
MAY 74004891
16
MAY 74004555
16
MAY 74005489
16
MAY 74004538
16
MAY 74004537
16
MAY 74005504
16
MAY 74004552
16
MAY 74004557
16
MAY 74004553
16
MAY 74005002
17
MAY 74004579
17
MAY 71002782
17
MAY 16009690
17
MAY 74004657
18
MAY 74004581
←
