MER6770AAQ 03 – DOOR (LOWER)

MER6770AAQ 03 – DOOR (LOWER)

Written by

in

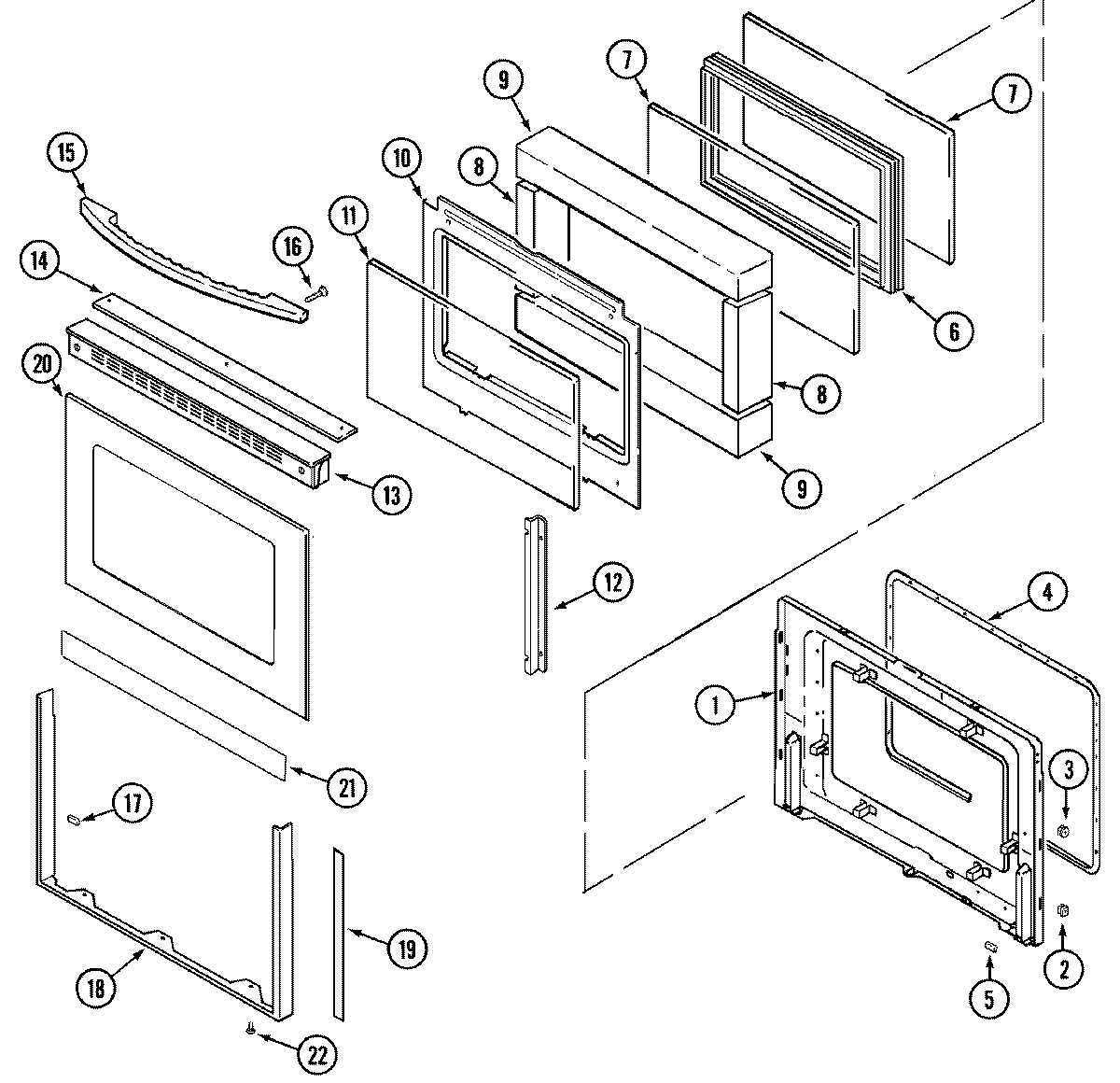

MER6770AAQ 03 – DOOR (LOWER)

Products

PositionProduct
1MAY 74003642
2NUT, SNAP (ROUND-BLK)
2MAY 74003643
3NUT, SNAP (ROUND-WHT)
4GASKT-DOOR OVEN
5MAY 8010P085-60
6FRAME, GLASS
774003645 Whirlpool Range Oven Door Inner Glass
8MAY 74003646
9INSULATION, OVEN DOOR
10MAY 74003648
11GLASS, DOOR
12MAY 74003650
13MAY 74005241
14MAY 74004978
15MAY 74004974
16WP179051 Whirlpool Screw
17WP74004224 Whirlpool Tape
18MAY 74005162
18WP74009541 Whirlpool Screw Assembly
19MAY 74003660
20MAY 74005240
21TAPE, FOIL 29“ X 2“
22SCREW
