MER6770AAW 04 – DOOR (UPPER)

MER6770AAW 04 – DOOR (UPPER)

Written by

in

MER6770AAW 04 – DOOR (UPPER)

Products

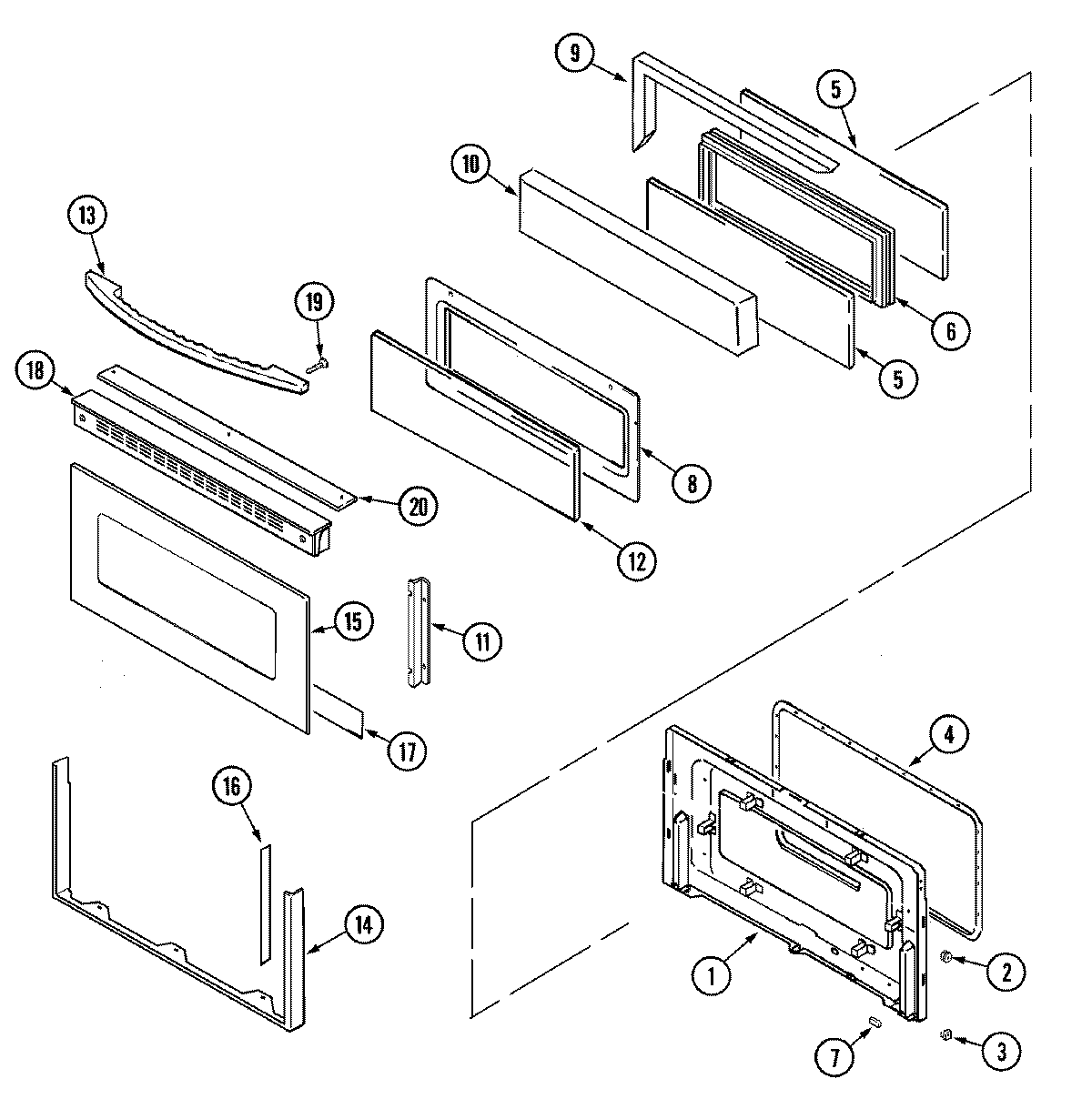

PositionProduct
1MAY 74004564
2NUT, SNAP (ROUND-WHT)
3NUT, SNAP (ROUND-BLK)
4WP7201P091-60 Whirlpool Door Gasket
5MAY 74004566
6MAY 74004567
7MAY 8010P085-60
8MAY 74004568
9MAY 74004569
10INSULATION, DOOR (3 X 8.7)
11MAY 74004592
12MAY 74004571
13MAY 74003620
14MAY 74004573
15MAY 74005577
15MAY 74004575
16MAY 74003660
17MAY 74004593
18WP98008544 Whirlpool Screw Assembly
18WP74003653 Whirlpool Door Trim
19SCREW
19WP179051 Whirlpool Screw
20MAY 74001278
20MAY 7728P094-60
