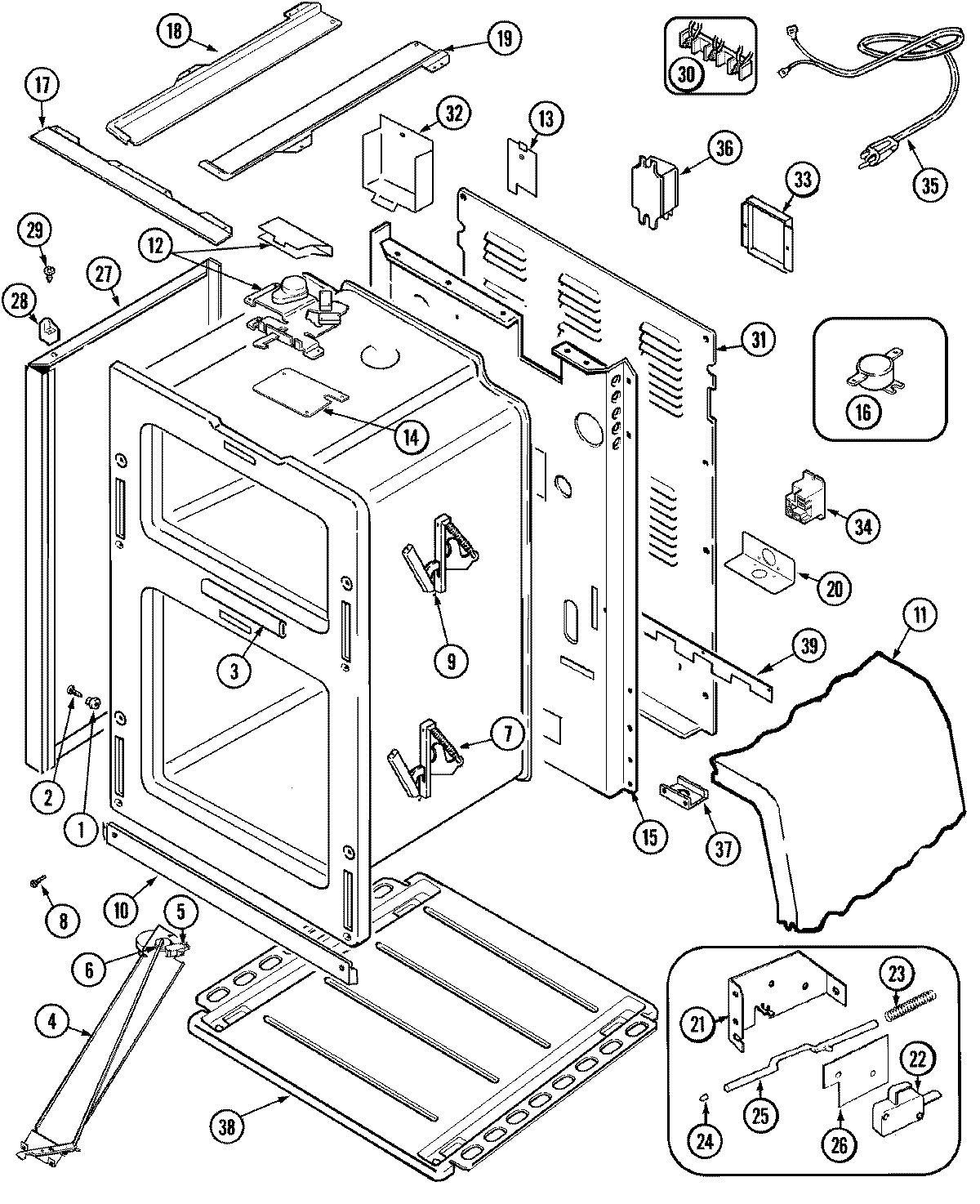

MER6770ACC 01 – BODY

Products

Position	Product
1	MAY 8004P024-60
2	W11693756 Whirlpool Screw Assembly
3	74004518 Whirlpool Frame Front Seal
4	MAY 74004893
4	MAY 74005485
4	MAY 74004519
5	MAY 74005532
5	MAY 74004911
6	MAY 74005531
6	MAY 74004673
7	HINGE-OVEN DOOR
9	SCREW (10-24X5/16-NI)
9	MAY 74004523
10	SCREW (8ABX1/2“-BLK)
10	MAY 74004524
11	MAY 74004520
11	MAY 74004526
12	MAY 74004729
12	MAY 74005517
12	74003975 Whirlpool Screw P1 (8ABX3/8-BLK)
13	MAY 74004527
14	MAY 74005484
14	MAY 74004531
15	MAY 74004529
16	WP74004530 Whirlpool Limit Switch
17	MAY 74003384
18	MAY 74003379
18	MAY 74005505
19	MAY 74003378
19	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
20	W10190166 Whirlpool Service Bracket
21	WPY706189 Whirlpool Stove Screw
21	BRACKET, SWITCH ACTUATOR
22	MAY 7101P330-60
24	MAY 74001631
25	ROD, DOOR LIGHT SWITCH
26	MAY 74001872
27	SCREW
27	MAY 74003283
28	SPACER, MAIN TOP (RT)
28	SPACER, MAIN TOP (LT)
29	MAY 7101P313-60
30	MAY 74004532
30	MAY 7401P038-60
31	MAY 74004576
32	MAY 74004577
33	MAY 4005F427-51
34	WP74003482 Whirlpool Auxiliary Relay
35	MAY 7402P050-60
36	MAY 74004690
37	MAY 3605F174-51
38	MAY 74004828
39	MAY 74005653
