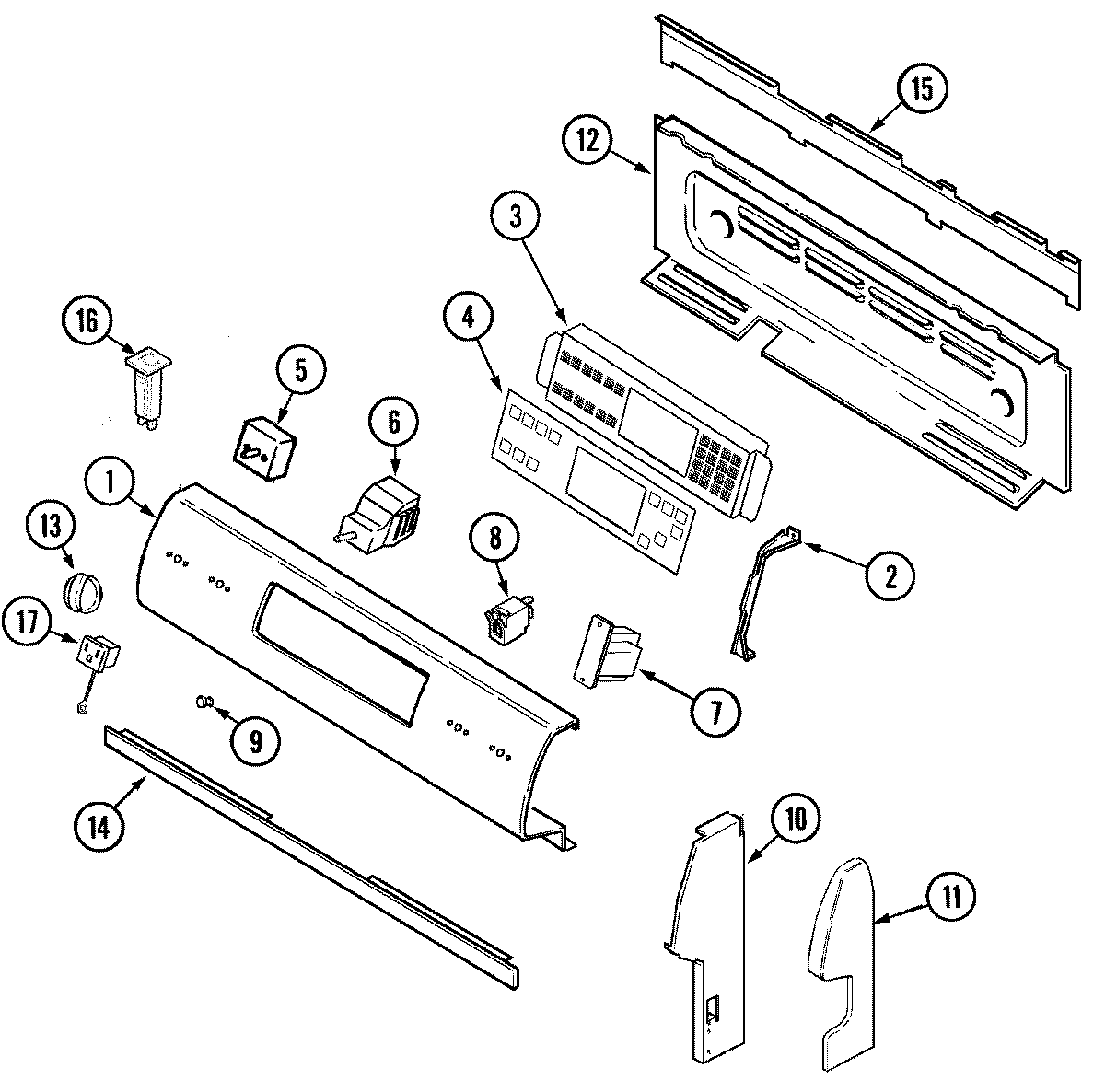

MER6770ACQ 02 – CONTROL PANEL
Written by
in
MER6770ACQ 02 – CONTROL PANEL
Products
Position
Product
1
MAY 74005244
2
MAY 74004541
2
MAY 7101P348-60
3
MAY 74004542
3
SCREW
4
MAY 74005235
5
SCREW
5
WP7403P239-60 Whirlpool Oven Switch
5
WP7403P238-60 Whirlpool Infinite Switch (Small Element)
6
MAY 71003201
6
MAY 74002144
7
MAY 74004545
8
WP74004153 Whirlpool Indicator Light
9
WP7730P011-60 Whirlpool Indicator Lens
10
MAY 74003603
10
MAY 74003604
11
MAY 74004982
11
WP74009541 Whirlpool Screw Assembly
11
MAY 74005237
11
MAY 74005236
12
MAY 74004550
13
MAY 74005143
14
MAY 74003374
15
SCREW (8BX3/8-NI)
15
MAY 74004551
15
MAY 74006376
16
MAY 71003070
17
MAY 74005144
19
MAY 74004891
19
MAY 74004688
19
MAY 74004555
19
MAY 74004554
19
MAY 74005002
19
MAY 74005515
19
MAY 74004687
19
MAY 74004552
19
MAY 74004557
19
MAY 74005635
19
MAY 74004537
19
MAY 74004909
20
MAY 71002782
20
MAY 74004658
20
MAY 71002938
20
MAY 74004579
21
MAY 74004581
21
MAY 74004689
←
