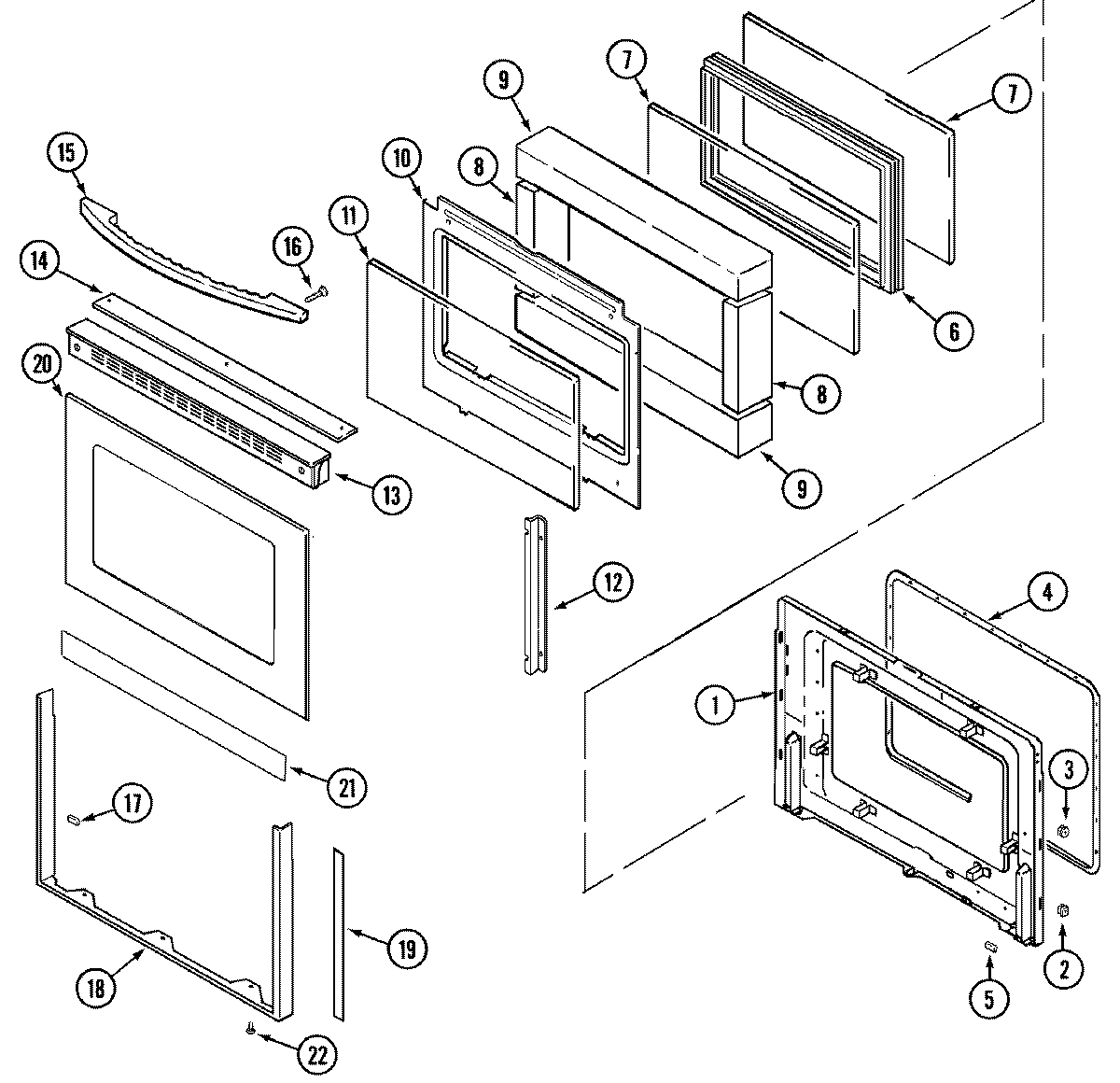

MER6770ACQ 03 – DOOR (LOWER)

MER6770ACQ 03 – DOOR (LOWER)

Written by

in

MER6770ACQ 03 – DOOR (LOWER)

Products

PositionProduct
1MAY 74003642
2MAY 74003643
2NUT, SNAP (ROUND-BLK)
3NUT, SNAP (ROUND-WHT)
4GASKT-DOOR OVEN
5MAY 8010P085-60
6FRAME, GLASS
774003645 Whirlpool Range Oven Door Inner Glass
8MAY 74003646
9INSULATION, OVEN DOOR
10MAY 74003648
11GLASS, DOOR
12MAY 74003650
13MAY 74005241
13MAY 74005245
14MAY 74004978
15MAY 74004974
16WP179051 Whirlpool Screw
17WP74004224 Whirlpool Tape
18MAY 74005162
18WP74009541 Whirlpool Screw Assembly
19MAY 74003660
20MAY 74005243
21TAPE, FOIL 29“ X 2“
22SCREW
