MER6770ACW 01 – BODY
Written by
in

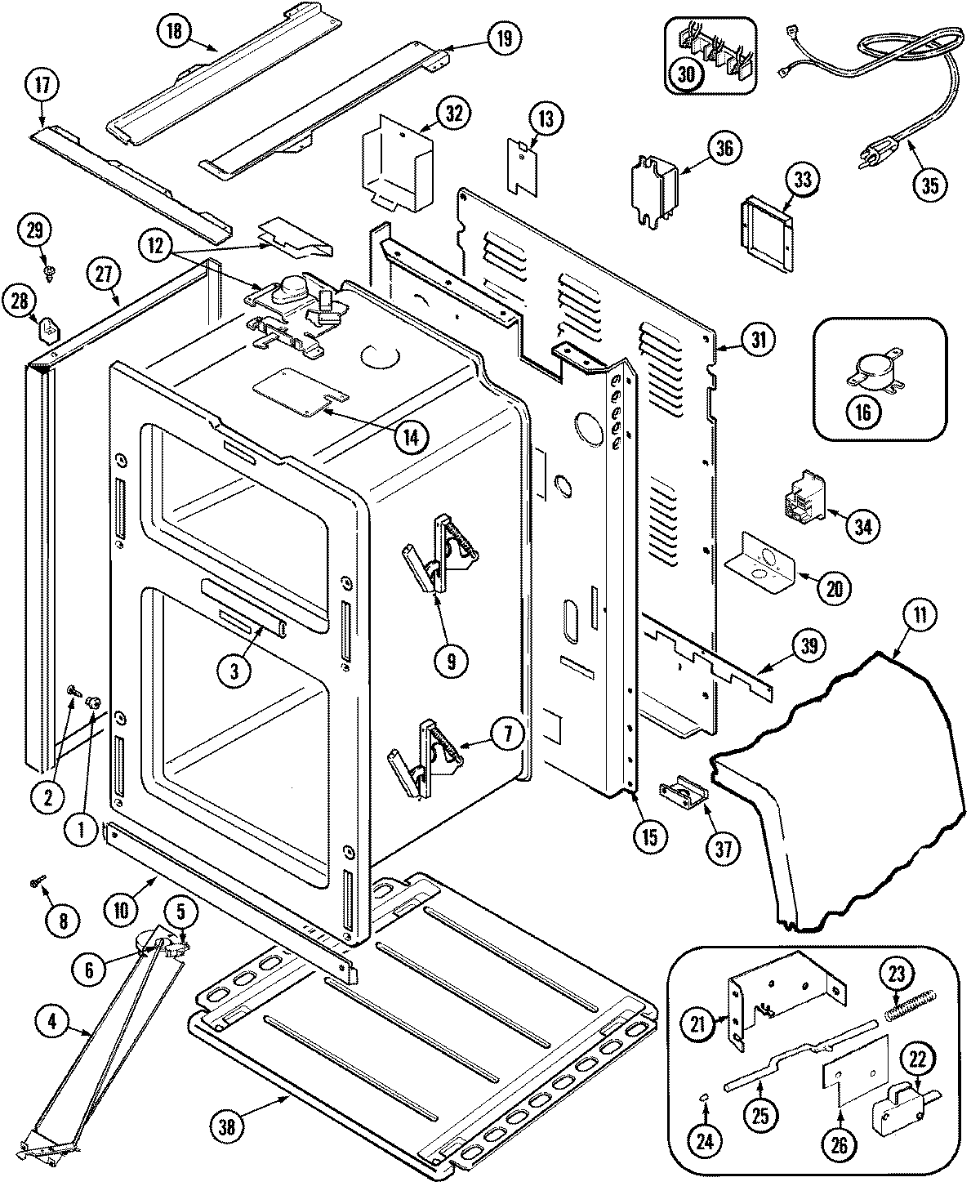

MER6770ACW 01 – BODY
Products
Position
Product
1
MAY 8004P024-60
2
W11693756 Whirlpool Screw Assembly
3
74004518 Whirlpool Frame Front Seal
4
MAY 74005485
4
MAY 74004893
4
MAY 74004519
5
MAY 74004671
5
MAY 74005532
5
MAY 74004911
6
MAY 74004673
6
MAY 74005531
7
HINGE-OVEN DOOR
9
MAY 74004523
9
SCREW (10-24X5/16-NI)
10
WP98008544 Whirlpool Screw Assembly
10
MAY 74004525
11
MAY 74004520
11
MAY 74004526
12
MAY 74005517
12
74003975 Whirlpool Screw P1 (8ABX3/8-BLK)
12
MAY 74004729
13
MAY 74004527
14
MAY 74004531
14
MAY 74005484
15
MAY 74004529
16
WP74004530 Whirlpool Limit Switch
17
MAY 74003384
18
MAY 74003379
18
MAY 74005505
19
NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
19
MAY 74003378
20
W10190166 Whirlpool Service Bracket
21
WPY706189 Whirlpool Stove Screw
21
BRACKET, SWITCH ACTUATOR
22
MAY 7101P330-60
24
MAY 74001631
25
ROD, DOOR LIGHT SWITCH
26
MAY 74001872
27
SCREW
27
MAY 74003236
28
SPACER, MAIN TOP (LT)
28
SPACER, MAIN TOP (RT)
29
MAY 7101P313-60
30
MAY 7401P038-60
30
MAY 74004532
31
MAY 74004576
32
MAY 74004577
33
MAY 4005F427-51
34
WP74003482 Whirlpool Auxiliary Relay
35
MAY 7402P050-60
36
MAY 74004690
37
MAY 3605F174-51
38
MAY 74004828
39
MAY 74005653
←
