MER6771AAB 04 – DOOR (UPPER) – Aparts

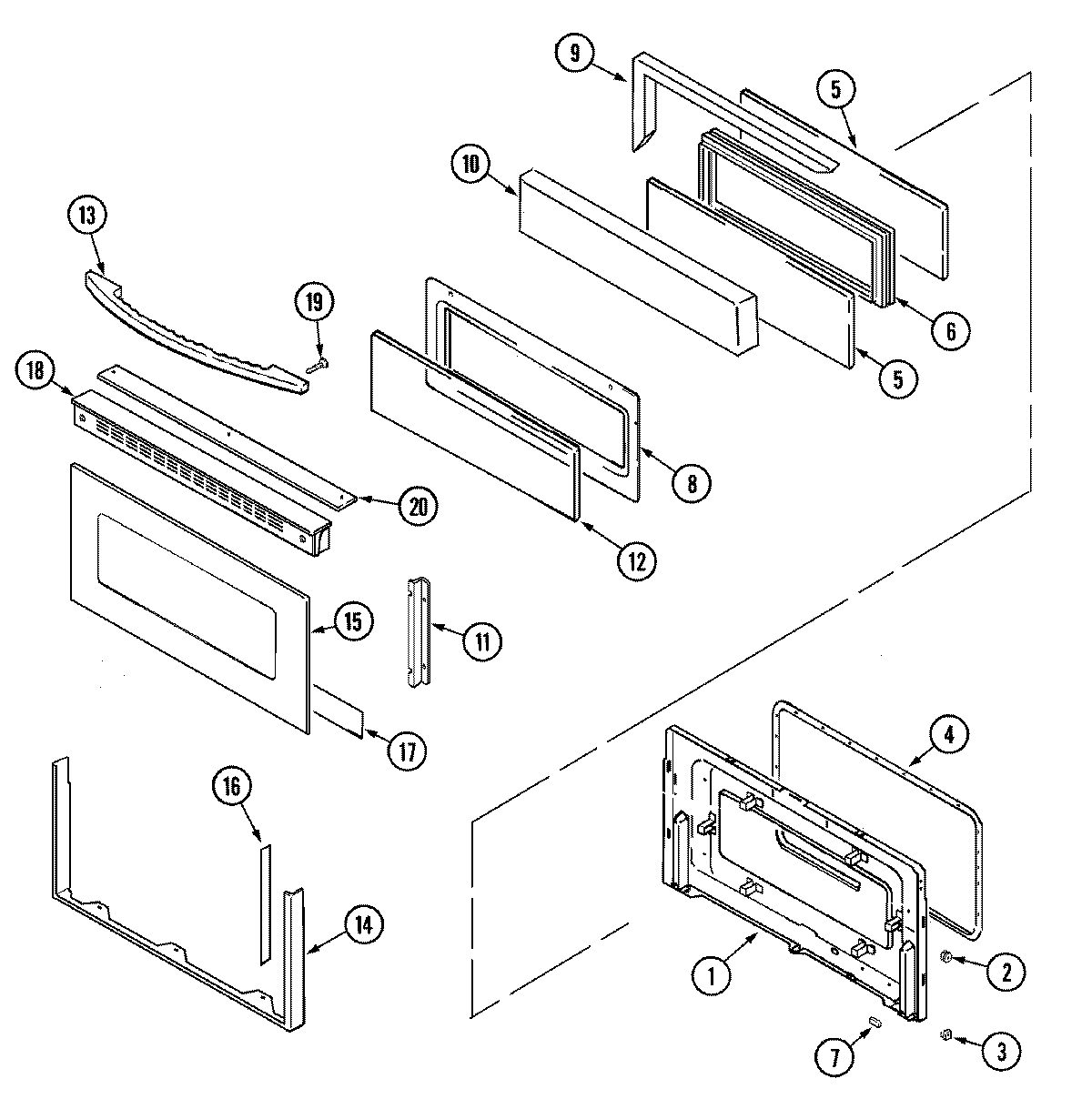

MER6771AAB 04 – DOOR (UPPER)

Products

Position	Product
1	MAY 74004564
2	NUT, SNAP (ROUND-WHT)
3	NUT, SNAP (ROUND-BLK)
4	WP7201P091-60 Whirlpool Door Gasket
5	MAY 74004566
6	MAY 74004567
7	MAY 8010P085-60
8	MAY 74004568
9	MAY 74004569
10	INSULATION, DOOR (3 X 8.7)
11	MAY 74004592
12	MAY 74004571
13	MAY 74003617
14	MAY 74004572
14	SCREW
15	MAY 74004574
16	MAY 74003660
17	MAY 74004593
18	WP74003652 Whirlpool Door Trim
18	SCREW (8ABX1/2``-BLK)
19	WP179051 Whirlpool Screw
