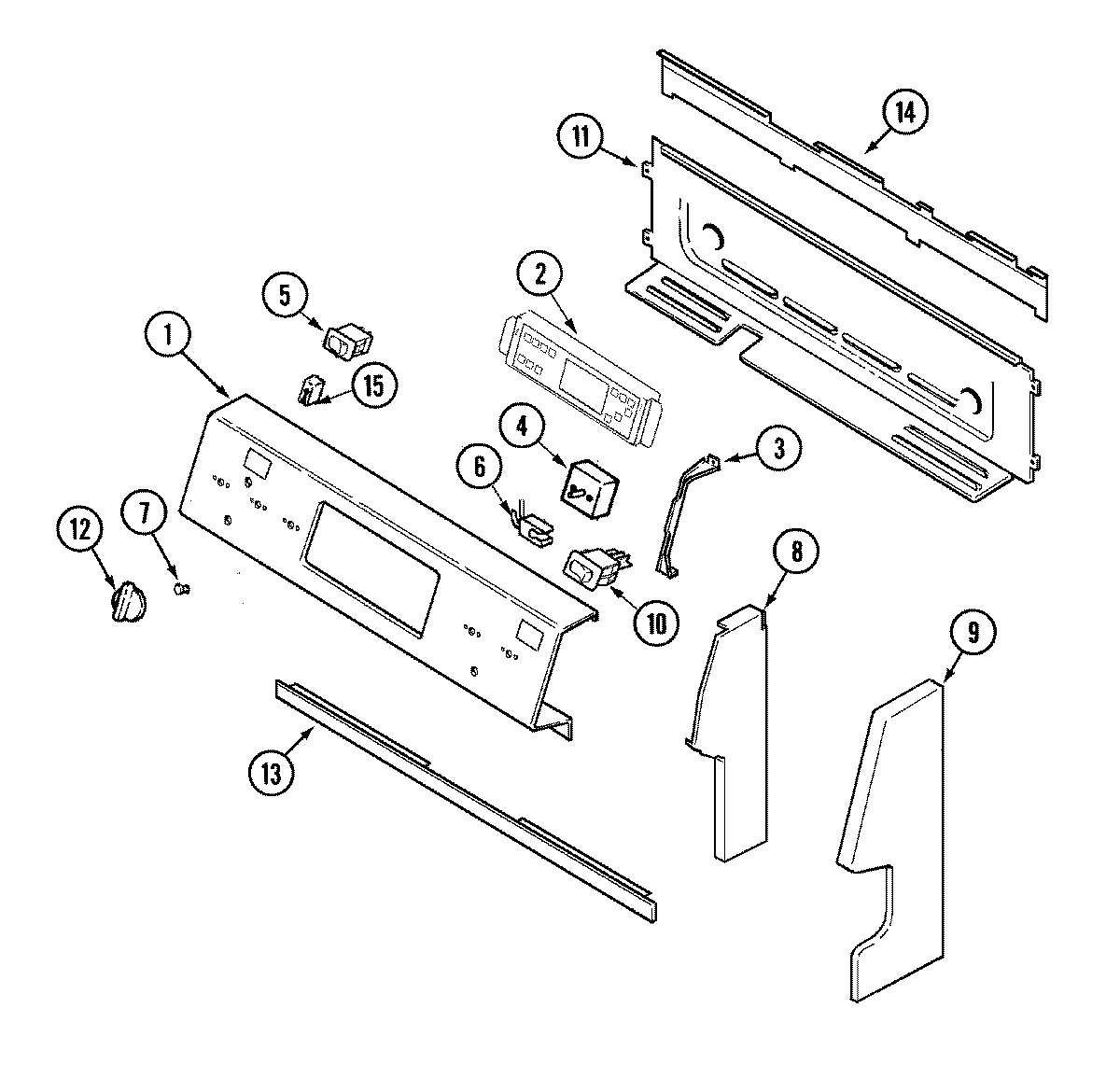

MER6772BAW 02 – CONTROL PANEL

Products

Position	Product
1	MAY 74006626
2	SCREW (6ABX.25-ZN)
2	MAY 74006213
3	MAY 74005388
3	MAY 7101P348-60
4	WP74003122 Whirlpool Infinite Switch Assembly (Dual)
4	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
4	WP7403P239-60 Whirlpool Oven Switch
4	SCREW
5	74008717 Whirlpool White Rocker Switch
6	WP74004153 Whirlpool Indicator Light
7	WP7730P011-60 Whirlpool Indicator Lens
8	MAY 74005393
8	MAY 74005392
8	SCREW
9	MAY 74004548
9	MAY 74004549
9	WP98008544 Whirlpool Screw Assembly
9	MAY 74002451
10	MAY 74006468
11	MAY 74004550
12	WP74003611 Whirlpool Oven White Knob
13	MAY 74003374
14	MAY 74006376
14	SCREW (8BX3/8-NI)
15	WP903115 Whirlpool Dishwasher Indicator Light
16	MAY 74006648
16	MAY 74009387
16	MAY 74007644
16	MAY 74007369
16	MAY 74006788
16	MAY 74006647
16	MAY 74005489
16	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
16	WP74003482 Whirlpool Auxiliary Relay
16	MAY 12001323
16	MAY 74004537
16	MAY 74004687
16	MAY 74005492
16	MAY 74005493
17	MAY 74005918
17	MAY 74005475
18	MAY 16010107
18	MAY 74005884
