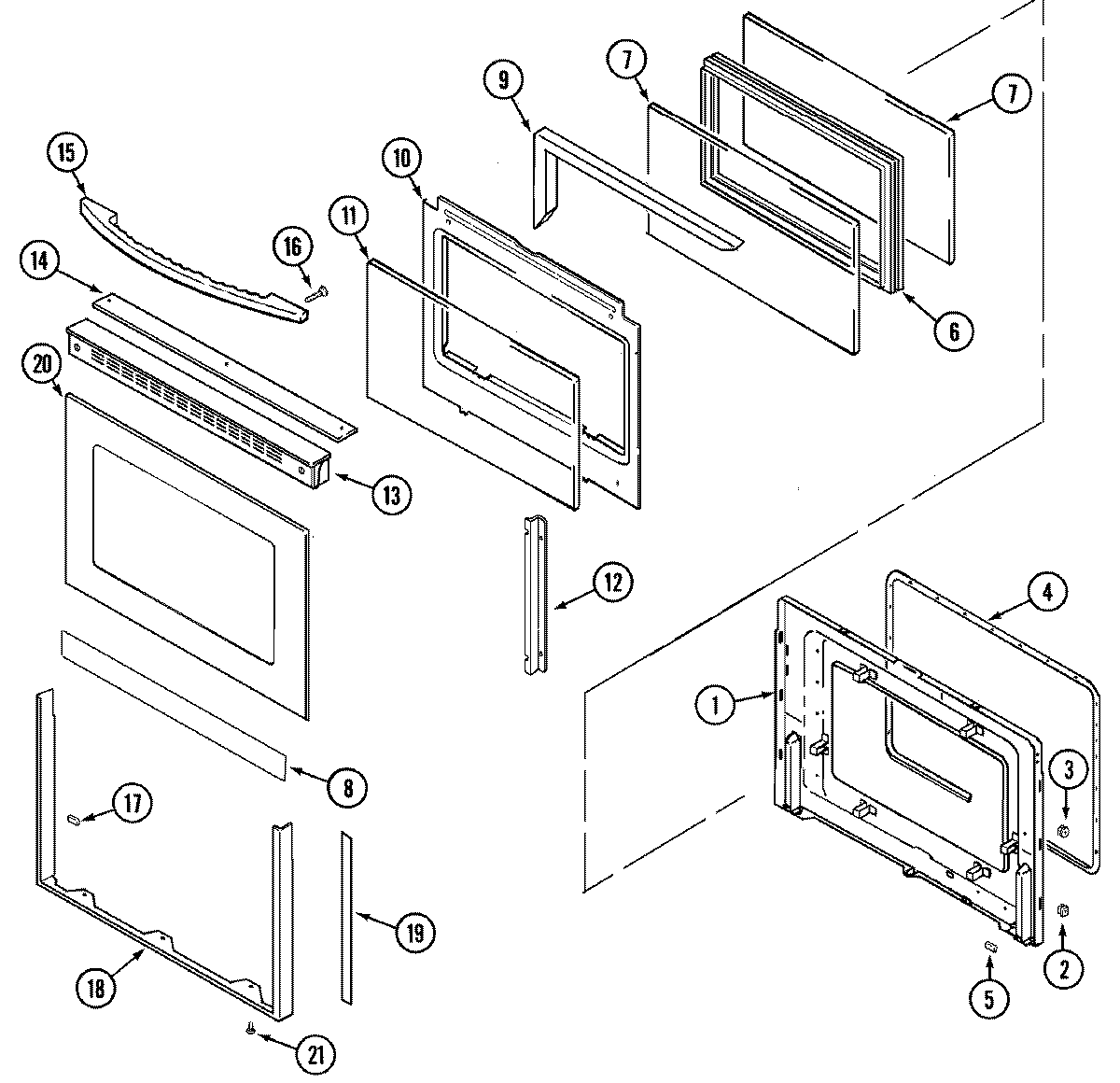

MER6772BCB 03 – DOOR (LOWER-BCB/BCQ/BCW)

MER6772BCB 03 – DOOR (LOWER-BCB/BCQ/BCW)

Written by

in

MER6772BCB 03 – DOOR (LOWER-BCB/BCQ/BCW)

Products

PositionProduct
1MAY 74003642
2MAY 74003643
2NUT, SNAP (ROUND-BLK)
3NUT, SNAP (ROUND-WHT)
4GASKT-DOOR OVEN
5WP74005546 Whirlpool RU Spacer
6FRAME, GLASS
774003645 Whirlpool Range Oven Door Inner Glass
8TAPE, FOIL 29“ X 2“
9INSULATION, OVEN DOOR
10MAY 74003648
11GLASS, DOOR
12MAY 74003650
13MAY 74006658
15MAY 74006286
16WP74006515 Whirlpool Washer Screw
18SCREW (8ABX1/2“-BLK)
18MAY 74004324
19WP74004224 Whirlpool Tape
20MAY 74006663
21SCREW
