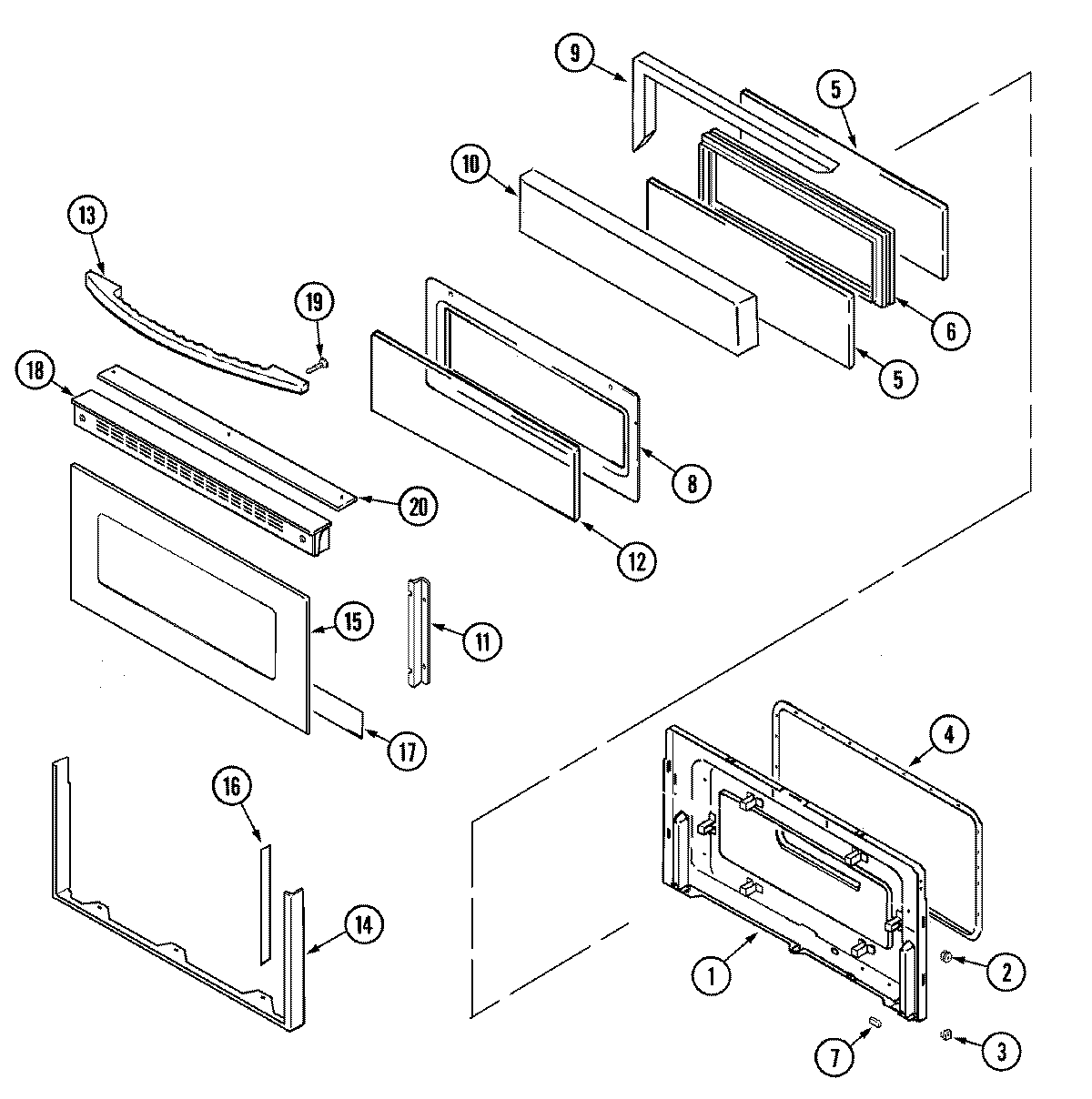

MER6772BCQ 04 – DOOR (UPPER-BCB/BCQ/BCW)

MER6772BCQ 04 – DOOR (UPPER-BCB/BCQ/BCW)

Written by

in

MER6772BCQ 04 – DOOR (UPPER-BCB/BCQ/BCW)

Products

PositionProduct
1MAY 74004564
2NUT, SNAP (ROUND-WHT)
3NUT, SNAP (ROUND-BLK)
4WP7201P091-60 Whirlpool Door Gasket
5MAY 74004566
6MAY 74004567
7WP74005546 Whirlpool RU Spacer
8MAY 74004568
9MAY 74004569
10INSULATION, DOOR (3 X 8.7)
11MAY 74004592
13MAY 74006377
14MAY 74005242
15MAY 74006632
16MAY 74003660
17MAY 74004593
18MAY 74006634
19WP74006515 Whirlpool Washer Screw
19SCREW
20MAY 74004978
20WP74009541 Whirlpool Screw Assembly
