MER6772BCW 01 – BODY
Written by
in

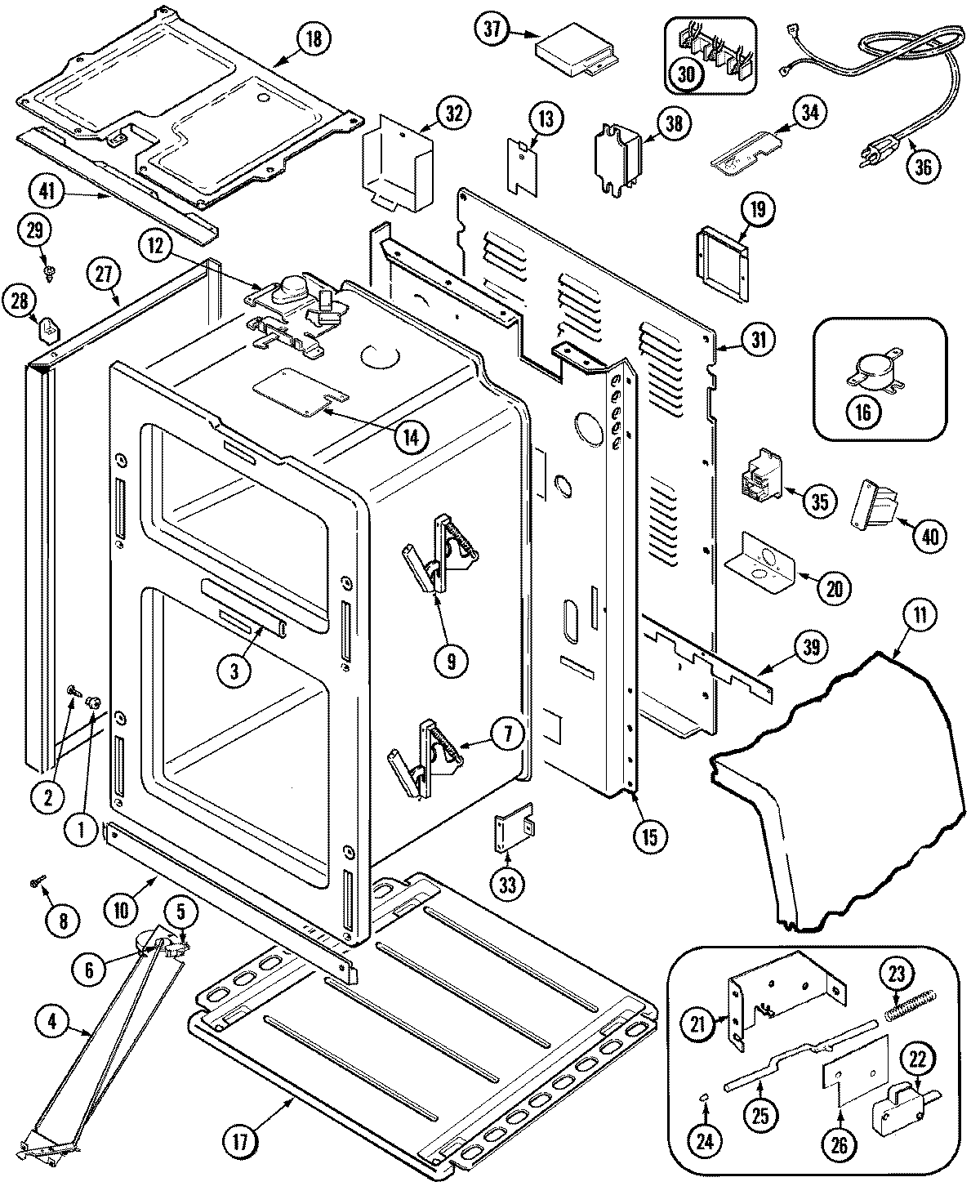

MER6772BCW 01 – BODY
Products
Position
Product
1
MAY 8004P024-60
1
3823F015-51 Whirlpool Spacer
2
W11693756 Whirlpool Screw Assembly
3
74004518 Whirlpool Frame Front Seal
4
MAY 74005485
4
MAY 74004520
5
MAY 74005532
6
MAY 74005531
7
HINGE-OVEN DOOR
9
SCREW (10-24X5/16-NI)
9
MAY 74004523
10
MAY 74004525
10
WP98008544 Whirlpool Screw Assembly
10
MAY 74007479
11
MAY 74004526
12
MAY 74005517
12
MAY 74007642
12
MAY 74007637
12
74003975 Whirlpool Screw P1 (8ABX3/8-BLK)
13
MAY 74005484
14
MAY 74005496
14
NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
15
MAY 74005497
15
MAY 74002334
16
WP74004530 Whirlpool Limit Switch
17
MAY 74007449
17
MAY 74004828
18
MAY 74007367
18
MAY 74005505
18
MAY 74007366
19
MAY 4005F427-51
20
W10190166 Whirlpool Service Bracket
21
WPY706189 Whirlpool Stove Screw
21
BRACKET, SWITCH ACTUATOR
22
MAY 7101P330-60
24
MAY 74001631
25
ROD, DOOR LIGHT SWITCH
26
MAY 74001872
27
MAY 74003236
28
SPACER, MAIN TOP (RT)
28
SPACER, MAIN TOP (LT)
29
MAY 7101P313-60
30
MAY 7401P038-60
30
MAY 74004532
31
MAY 74004576
32
MAY 74004577
33
MAY 74005499
33
MAY 74005500
34
MAY 74001598
35
WP74003482 Whirlpool Auxiliary Relay
36
MAY 7402P050-60
37
SCREW
37
MAY 74003479
38
MAY 74004690
39
MAY 74005653
40
SCREW (8BX3/8-NI)
40
MAY 74005456
41
MAY 74003384
←
