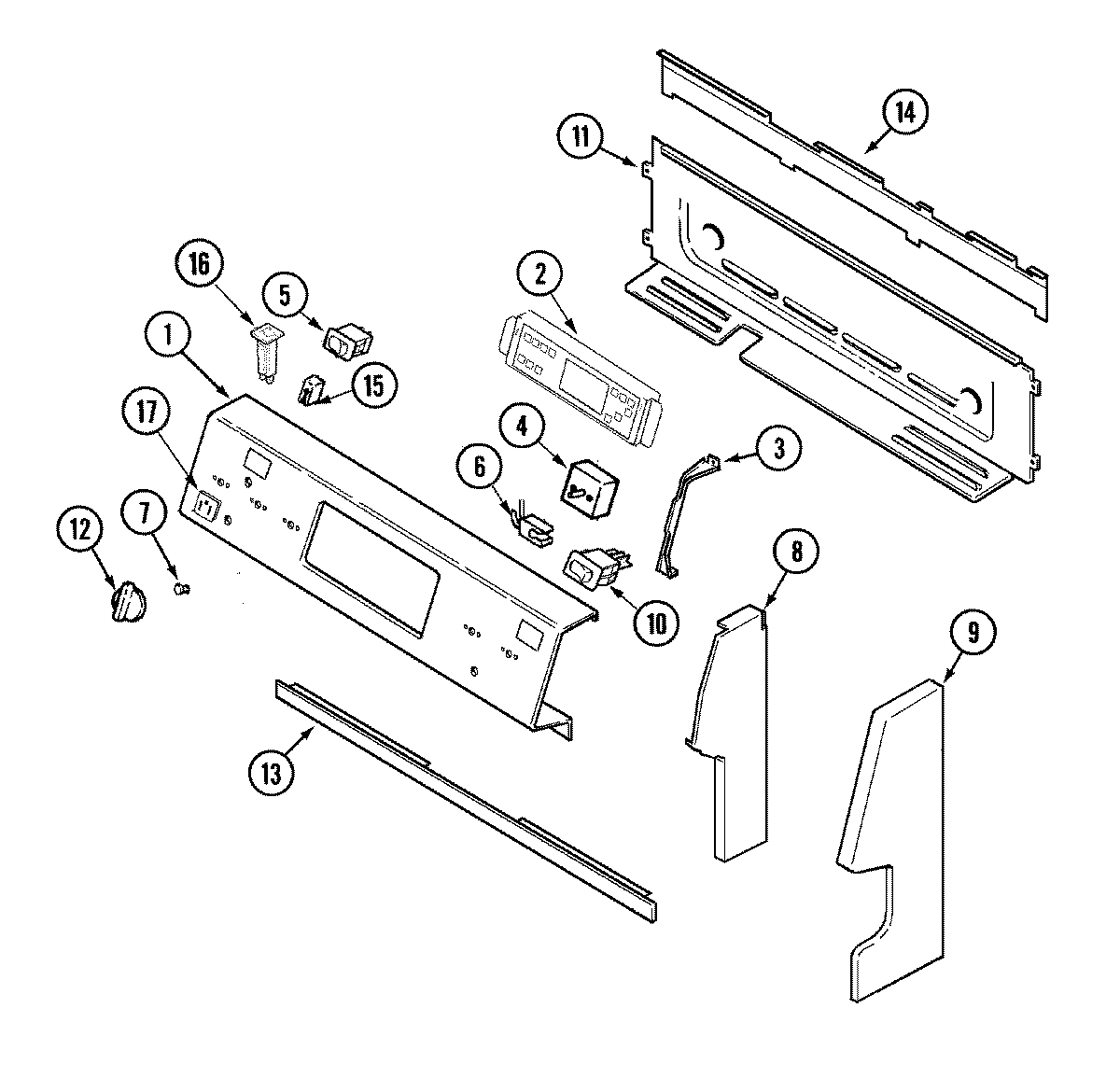

MER6772BCW 02 – CONTROL PANEL

Products

Position	Product
1	MAY 74006621
2	SCREW
2	MAY 74006213
3	MAY 74005388
3	MAY 7101P348-60
4	WP74003122 Whirlpool Infinite Switch Assembly (Dual)
4	SCREW
4	WP7403P239-60 Whirlpool Oven Switch
4	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
5	74008717 Whirlpool White Rocker Switch
6	WP74004153 Whirlpool Indicator Light
7	WP7730P011-60 Whirlpool Indicator Lens
8	MAY 74005392
8	MAY 74005393
8	SCREW
9	MAY 74004548
9	MAY 74004549
9	MAY 74002451
9	WP98008544 Whirlpool Screw Assembly
10	MAY 74006468
11	MAY 74004550
12	WP74003611 Whirlpool Oven White Knob
13	MAY 74003374
14	MAY 74006376
14	SCREW (8BX3/8-NI)
15	WP903115 Whirlpool Dishwasher Indicator Light
16	MAY 71003070
17	MAY 71003069
18	MAY 74007369
18	MAY 74006647
18	MAY 74007643
18	MAY 12001323
18	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
18	MAY 74006788
18	MAY 74006787
18	MAY 74004537
18	MAY 74004687
18	MAY 74005492
18	MAY 74005493
18	MAY 74005515
19	MAY 74005918
19	MAY 74005475
20	MAY 16010107
20	MAY 74005885
