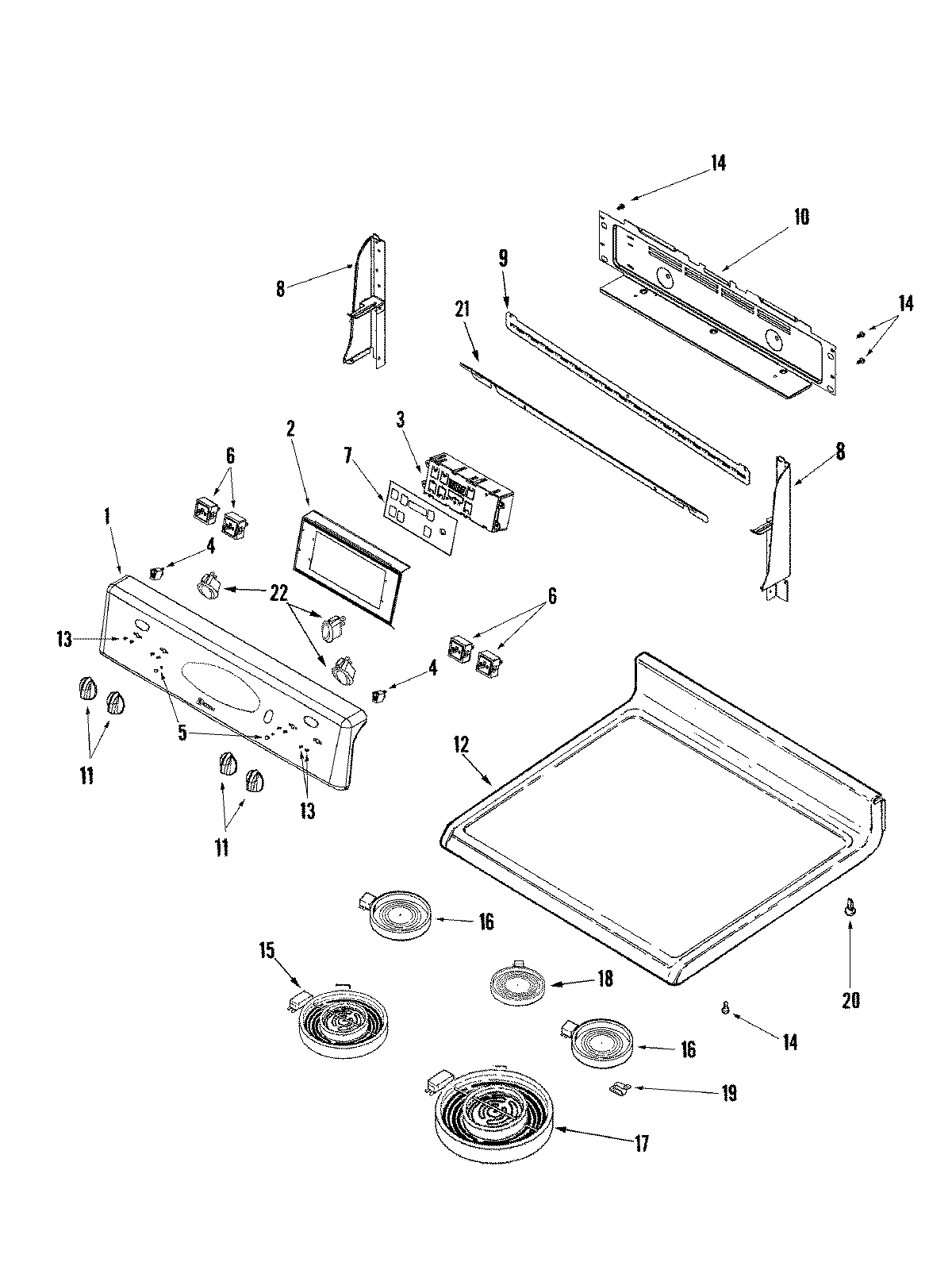

MER6775AAF 02 – CONTROL PANEL/TOP ASSEMBLY

MER6775AAF 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

MER6775AAF 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74010048
2BRACKET, CLOCK
3W10769079-includeCORE Whirlpool W10769079 Refrigerator Electronic Control Board + Core
4WP74004153 Whirlpool Indicator Light
5WP7730P011-60 Whirlpool Indicator Lens
6WP74003122 Whirlpool Infinite Switch Assembly (Dual)
6WP7403P238-60 Whirlpool Infinite Switch (Small Element)
7MAY 74009993
8MAY 74009672
8MAY 74009669
8WP98008544 Whirlpool Screw Assembly
8WP74003976 Whirlpool Screw
9MAY 74009978
10MAY 74010804
10SCREW (8BX3/8-NI)
11WP74008947 Whirlpool Knob White
12MAY 74010034
13SCREW
14SCREW
15MAY 74009898
16W10823711 Whirlpool Surface Element Left Front and Right Rear
17W10823713 Whirlpool Surface Element
18WP74009899 Whirlpool Element
198004P093-60 Whirlpool Support C
20W11189172 Whirlpool Glide Drawer
21MAY 74009701
21WP90767 Whirlpool Screw
22WP74010226 Whirlpool RO Switch
