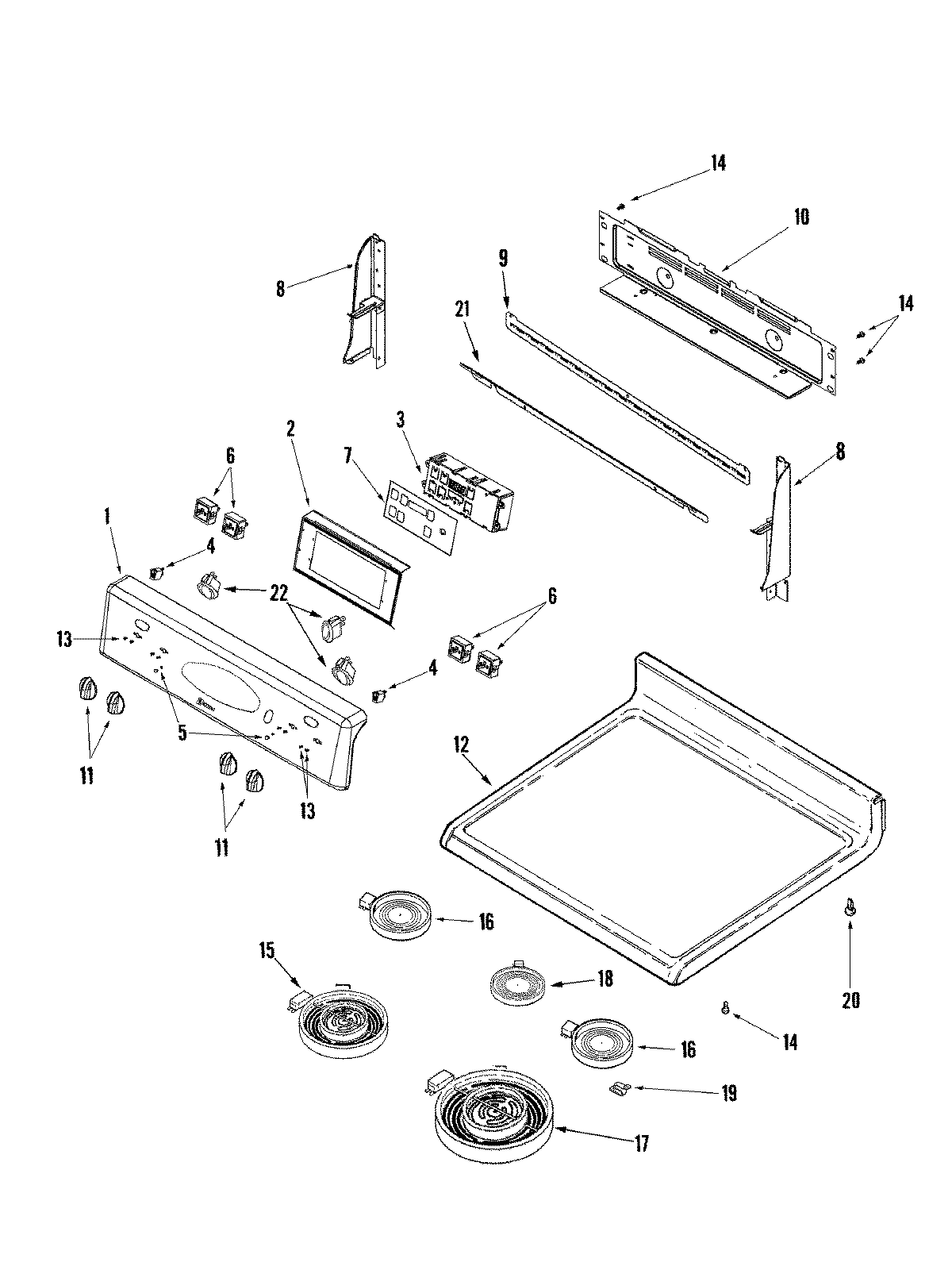

MER6775AAN 02 – CONTROL PANEL/TOP ASSEMBLY

Products

Position	Product
1	MAY 74010049
2	BRACKET, CLOCK
3	W10769079-includeCORE Whirlpool W10769079 Refrigerator Electronic Control Board + Core
4	WP74004153 Whirlpool Indicator Light
5	WP7730P011-60 Whirlpool Indicator Lens
6	WP74003122 Whirlpool Infinite Switch Assembly (Dual)
6	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
7	MAY 74009995
8	MAY 74009668
8	MAY 74009671
8	WP74003976 Whirlpool Screw
8	WP74009541 Whirlpool Screw Assembly
9	MAY 74009978
10	SCREW (8BX3/8-NI)
10	MAY 74010804
11	74008946 Whirlpool Oven Bisque Knob
12	MAY 74010035
13	SCREW
14	SCREW
15	MAY 74009898
16	W10823711 Whirlpool Surface Element Left Front and Right Rear
17	W10823713 Whirlpool Surface Element
18	WP74009899 Whirlpool Element
19	8004P093-60 Whirlpool Support C
20	W11189172 Whirlpool Glide Drawer
21	MAY 74009701
21	WP90767 Whirlpool Screw
22	7403P984-60 Whirlpool RO Switch
