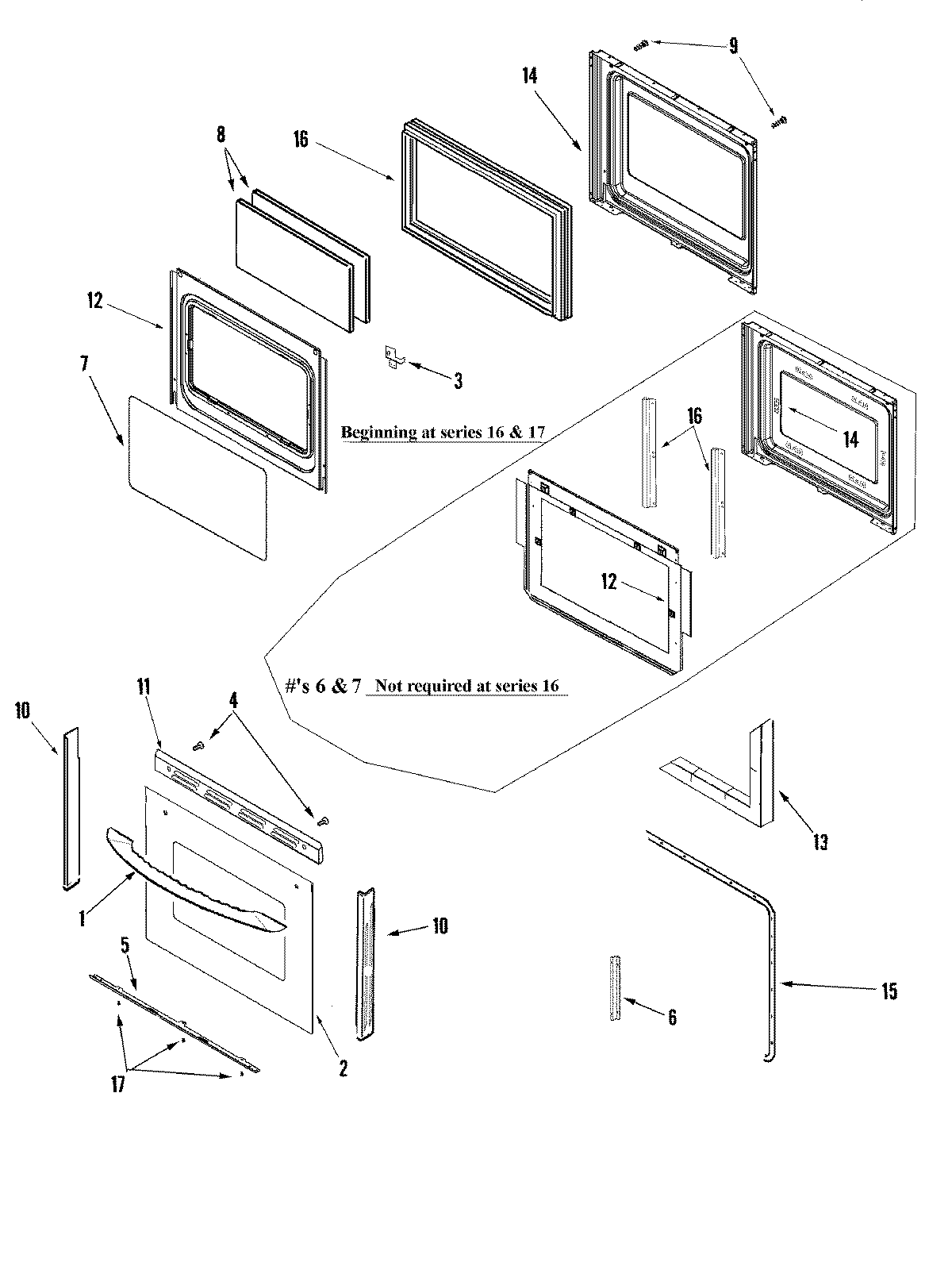

MER6775AAN 03 – DOOR (LOWER)admin2025-04-26T09:15:27+00:00MER6775AAN 03 – DOOR (LOWER)
Products
| Position | Product |
|---|
| 1 | WP74011778 Whirlpool Door Handle |
| 2 | 12002397 Whirlpool Oven Door Glass Kit (Bisque) |
| 3 | 3801F831-45 Whirlpool Bracket Assembly |
| 3 | 3801F832-45 Whirlpool Bracket |
| 3 | WP74005546 Whirlpool RU Spacer |
| 3 | SCREW (10ABX1/4P TR ZN) |
| 4 | WP74006515 Whirlpool Washer Screw |
| 5 | SUPPORT, GLASS (BSQ) |
| 6 | MAY 74003650 |
| 7 | GLASS, DOOR |
| 7 | NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED) |
| 8 | 74003645 Whirlpool Range Oven Door Inner Glass |
| 10 | TRIM, DOOR (BSQ-RT) |
| 10 | TRIM, DOOR (BSQ-LT) |
| 10 | WP74009014 Whirlpool Double Tape |
| 11 | MAY 74009691 |
| 11 | TAPE, FOIL 29`` X 2`` |
| 11 | WP74009541 Whirlpool Screw Assembly |
| 12 | MAY 74009502 |
| 12 | 3601F373-51 Whirlpool Baffle |
| 12 | MAY 7101P356-60 |
| 13 | INSULATION, OVEN DOOR |
| 14 | LINING, DOOR |
| 14 | NUT, SNAP (ROUND-BLK) |
| 14 | MAY 74003642 |
| 14 | NUT, SNAP (ROUND-WHT) |
| 15 | GASKT-DOOR OVEN |
| 16 | SCREW, 8 X 1/2 |
| 16 | FRAME, GLASS |
| 16 | SCREW |
| 16 | 3801F886-51 Whirlpool Mounting Bracket |
