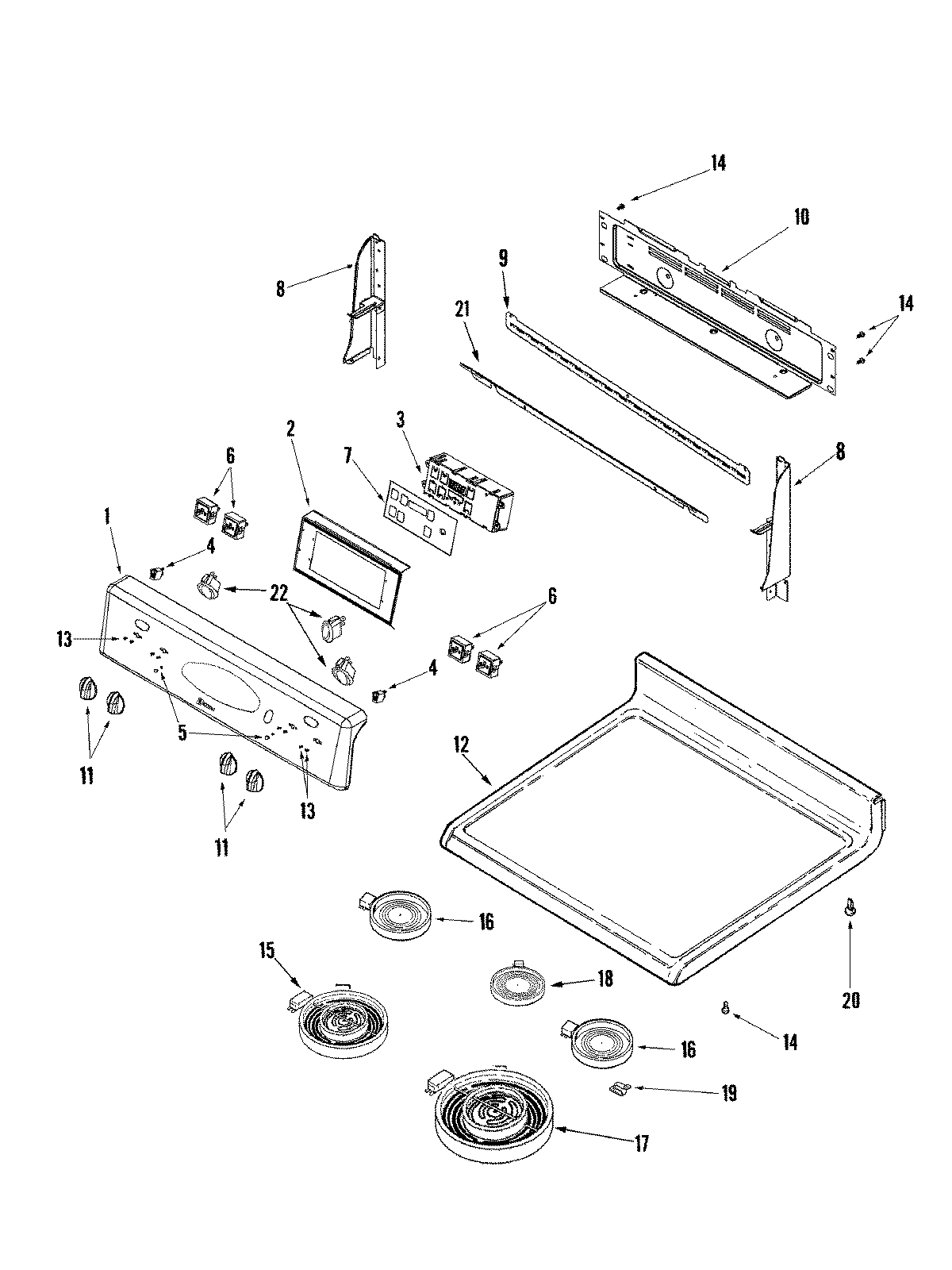

MER6775AAW 02 – CONTROL PANEL/TOP ASSEMBLY

Products

Position	Product
1	MAY 74010048
2	BRACKET, CLOCK
3	W10769079-includeCORE Whirlpool W10769079 Refrigerator Electronic Control Board + Core
4	WP74004153 Whirlpool Indicator Light
5	WP7730P011-60 Whirlpool Indicator Lens
6	WP74003122 Whirlpool Infinite Switch Assembly (Dual)
6	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
7	MAY 74009993
8	MAY 74009672
8	MAY 74009669
8	WP98008544 Whirlpool Screw Assembly
8	WP74003976 Whirlpool Screw
9	MAY 74009978
10	MAY 74010804
10	SCREW (8BX3/8-NI)
11	WP74008947 Whirlpool Knob White
12	MAY 74010028
13	SCREW
14	SCREW
15	MAY 74009898
16	W10823711 Whirlpool Surface Element Left Front and Right Rear
17	W10823713 Whirlpool Surface Element
18	WP74009899 Whirlpool Element
19	8004P093-60 Whirlpool Support C
20	W11189172 Whirlpool Glide Drawer
21	MAY 74009701
21	WP90767 Whirlpool Screw
22	WP74010226 Whirlpool RO Switch
