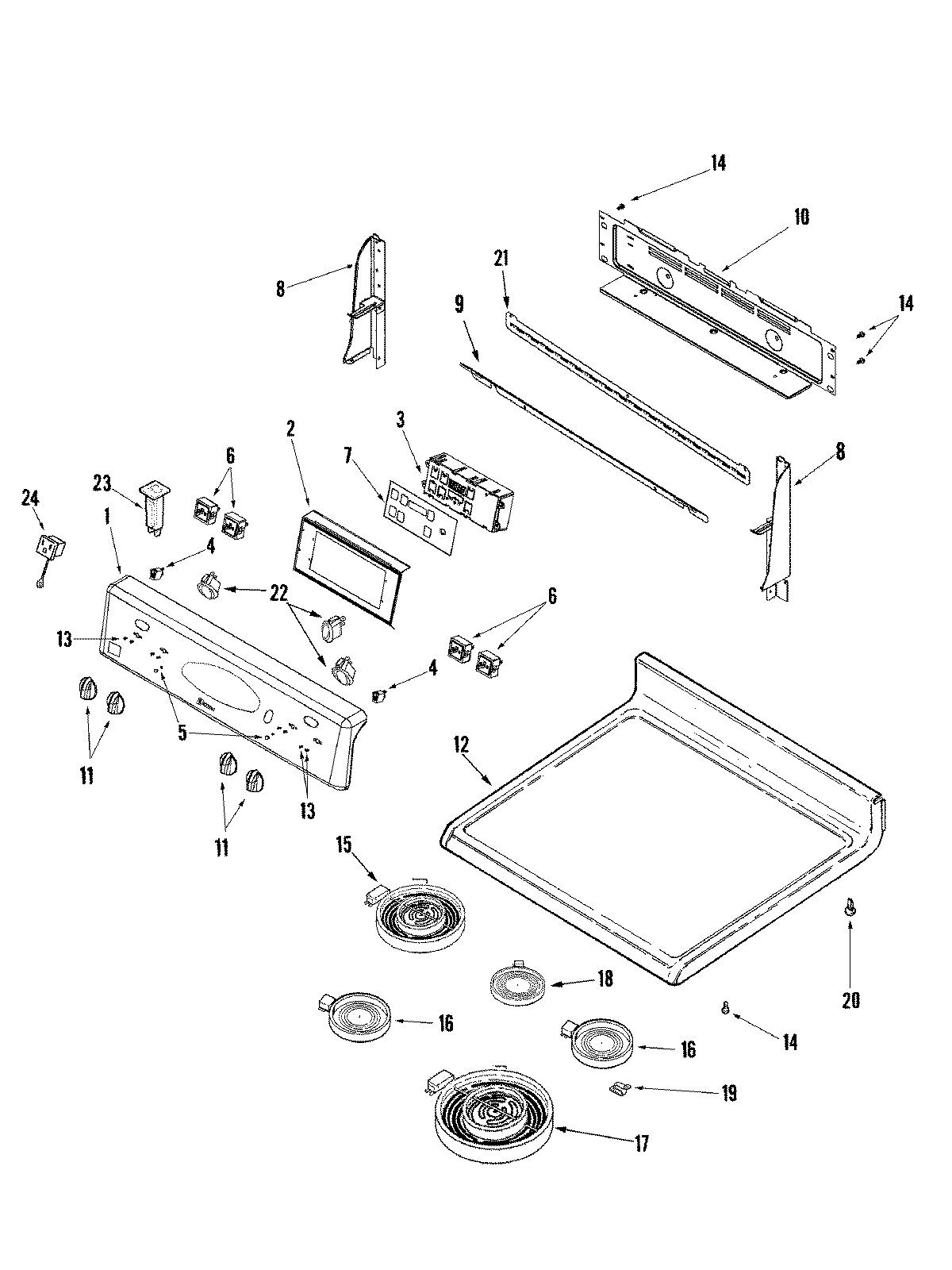

MER6775ACS 02 – CONTROL PANEL/TOP ASSEMBLY

Products

Position	Product
1	MAY 74010397
2	BRACKET, CLOCK
3	W10769079-includeCORE Whirlpool W10769079 Refrigerator Electronic Control Board + Core
4	WP74004153 Whirlpool Indicator Light
5	WP7730P011-60 Whirlpool Indicator Lens
6	WP74003122 Whirlpool Infinite Switch Assembly (Dual)
6	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
7	WP74009994 Whirlpool Overlay
8	WP74003976 Whirlpool Screw
8	MAY 74010202
8	MAY 74010201
8	WP98008545 Whirlpool Screw
9	MAY 74009978
10	MAY 74010804
10	SCREW (8BX3/8-NI)
11	MAY 74008945
12	MAY 74010033
13	SCREW
14	SCREW
15	MAY 74009898
16	W10823711 Whirlpool Surface Element Left Front and Right Rear
17	W10823713 Whirlpool Surface Element
18	WP74009899 Whirlpool Element
19	8004P093-60 Whirlpool Support C
20	W11189172 Whirlpool Glide Drawer
21	WP90767 Whirlpool Screw
21	MAY 74009701
22	7403P985-60 Whirlpool Rocker Switch (Black)
23	MAY 71003070
24	MAY 71003068
