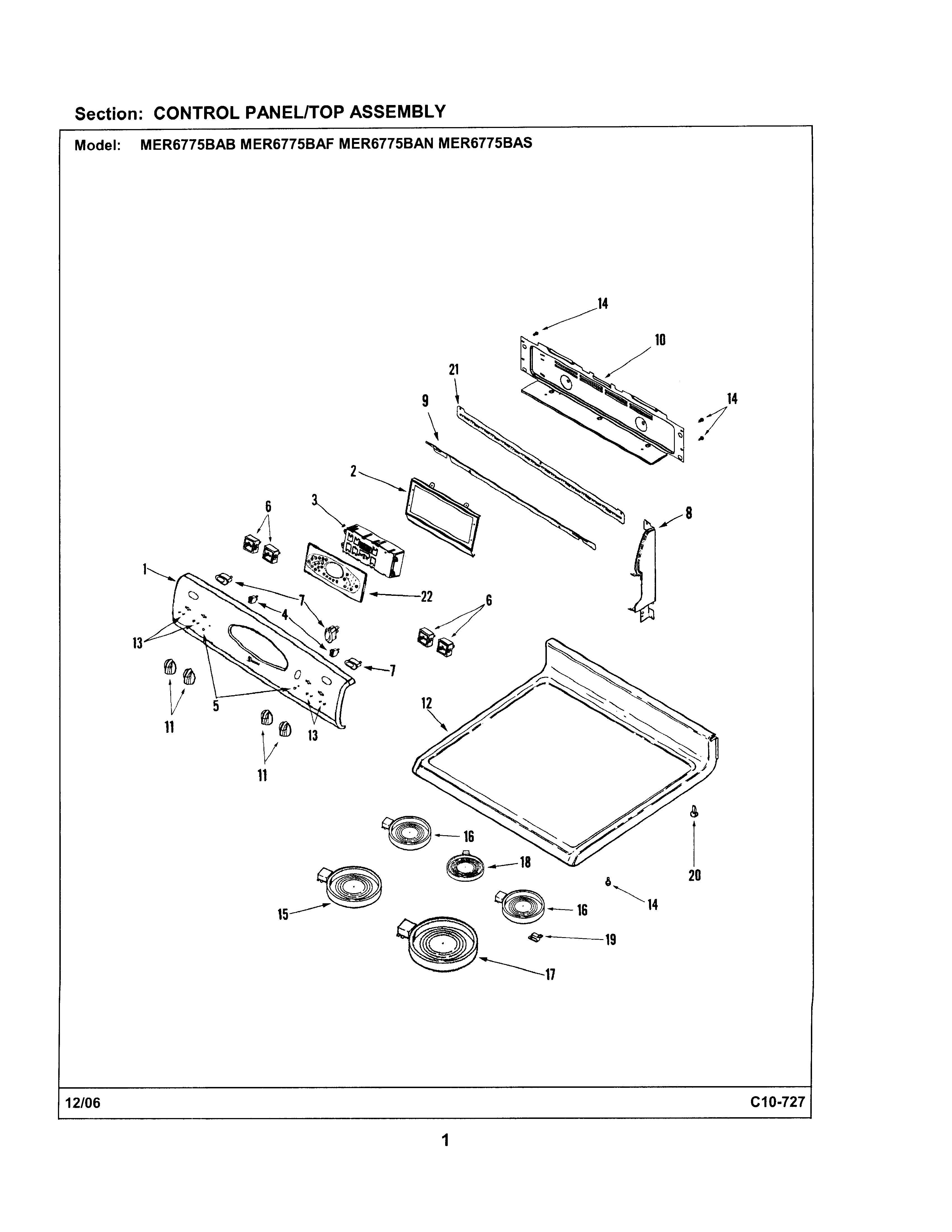

MER6775BAB 02 – CONTROL PANEL/TOP ASSEMBLY

MER6775BAB 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

MER6775BAB 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1PANEL, CONTROL (BLACK)
2BRACKET, CLOCK
3W10769079-includeCORE Whirlpool W10769079 Refrigerator Electronic Control Board + Core
4WP74004153 Whirlpool Indicator Light
5WP7730P011-60 Whirlpool Indicator Lens
6SWITCH-ELMNT
6WP74008940 Whirlpool Infinite Switch
6WP74003122 Whirlpool Infinite Switch Assembly (Dual)
77403P985-60 Whirlpool Rocker Switch (Black)
8WP74003976 Whirlpool Screw
8MAY 74010202
8MAY 74010201
8WP98008545 Whirlpool Screw
9MAY 74009978
10SCREW (8BX3/8-NI)
10MAY 74010804
11MAY 74008945
12MAY 5706M616-09
13SCREW
14SCREW
15MAY 74009898
16W10823711 Whirlpool Surface Element Left Front and Right Rear
17MAY 74011844
18ELEMENT (CTR)
18WP74009899 Whirlpool Element
198004P093-60 Whirlpool Support C
20W11189172 Whirlpool Glide Drawer
21MAY 74009701
22MAY 7728P494-60
