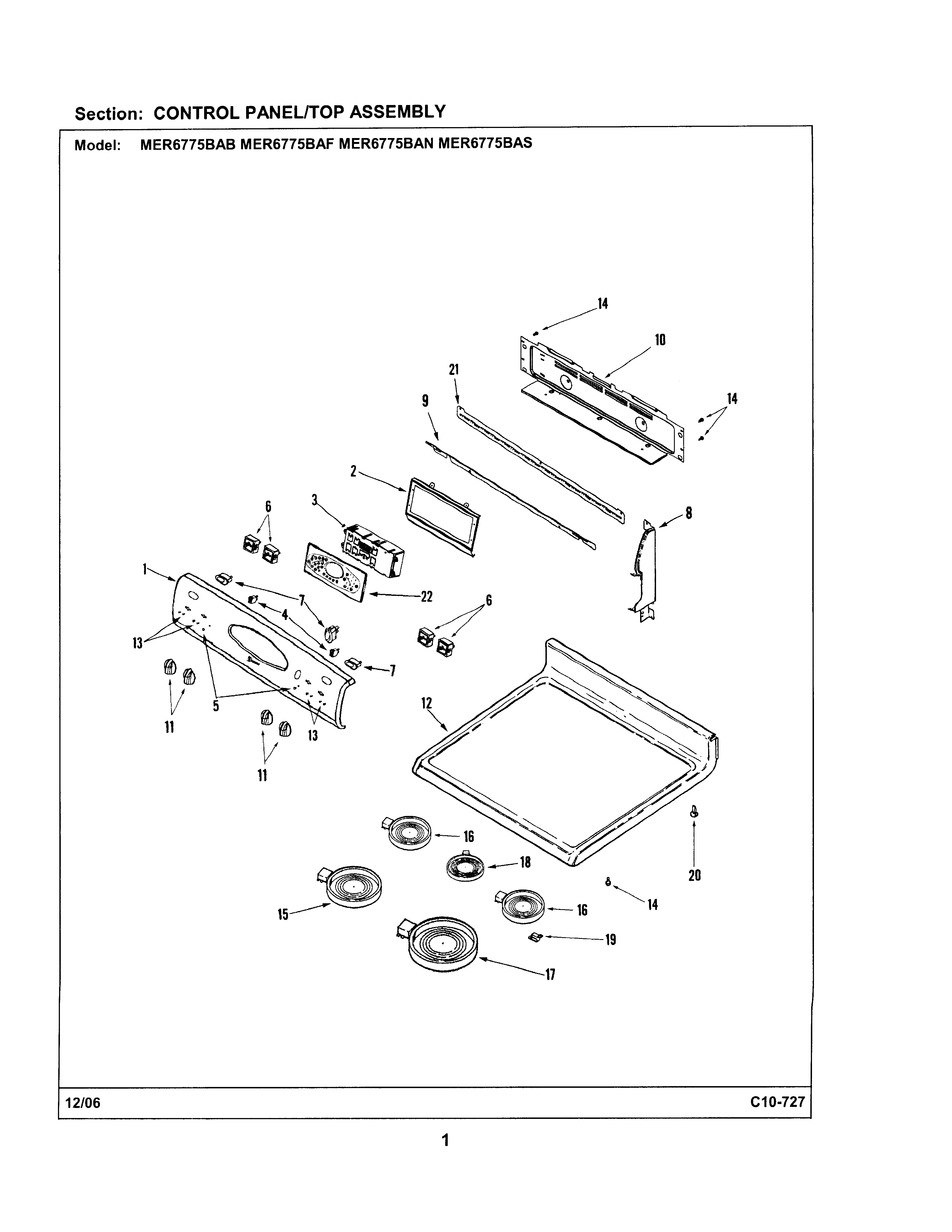

MER6775BAN 02 – CONTROL PANEL/TOP ASSEMBLY

MER6775BAN 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

MER6775BAN 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 2602D346-88
2BRACKET, CLOCK
3W10769079-includeCORE Whirlpool W10769079 Refrigerator Electronic Control Board + Core
4WP74004153 Whirlpool Indicator Light
5WP7730P011-60 Whirlpool Indicator Lens
6WP74008940 Whirlpool Infinite Switch
6WP74003122 Whirlpool Infinite Switch Assembly (Dual)
6SWITCH-ELMNT
77403P984-60 Whirlpool RO Switch
8MAY 74010714
8WP74003976 Whirlpool Screw
8WP74009541 Whirlpool Screw Assembly
8MAY 74010712
9MAY 74009978
10SCREW (8BX3/8-NI)
10MAY 74010804
1174008946 Whirlpool Oven Bisque Knob
12MAY 5706X616-88
13SCREW
14SCREW
15MAY 74009898
16W10823711 Whirlpool Surface Element Left Front and Right Rear
17MAY 74011844
18ELEMENT (CTR)
18WP74009899 Whirlpool Element
198004P093-60 Whirlpool Support C
20W11189172 Whirlpool Glide Drawer
21MAY 74009701
22MAY 7728P495-60
