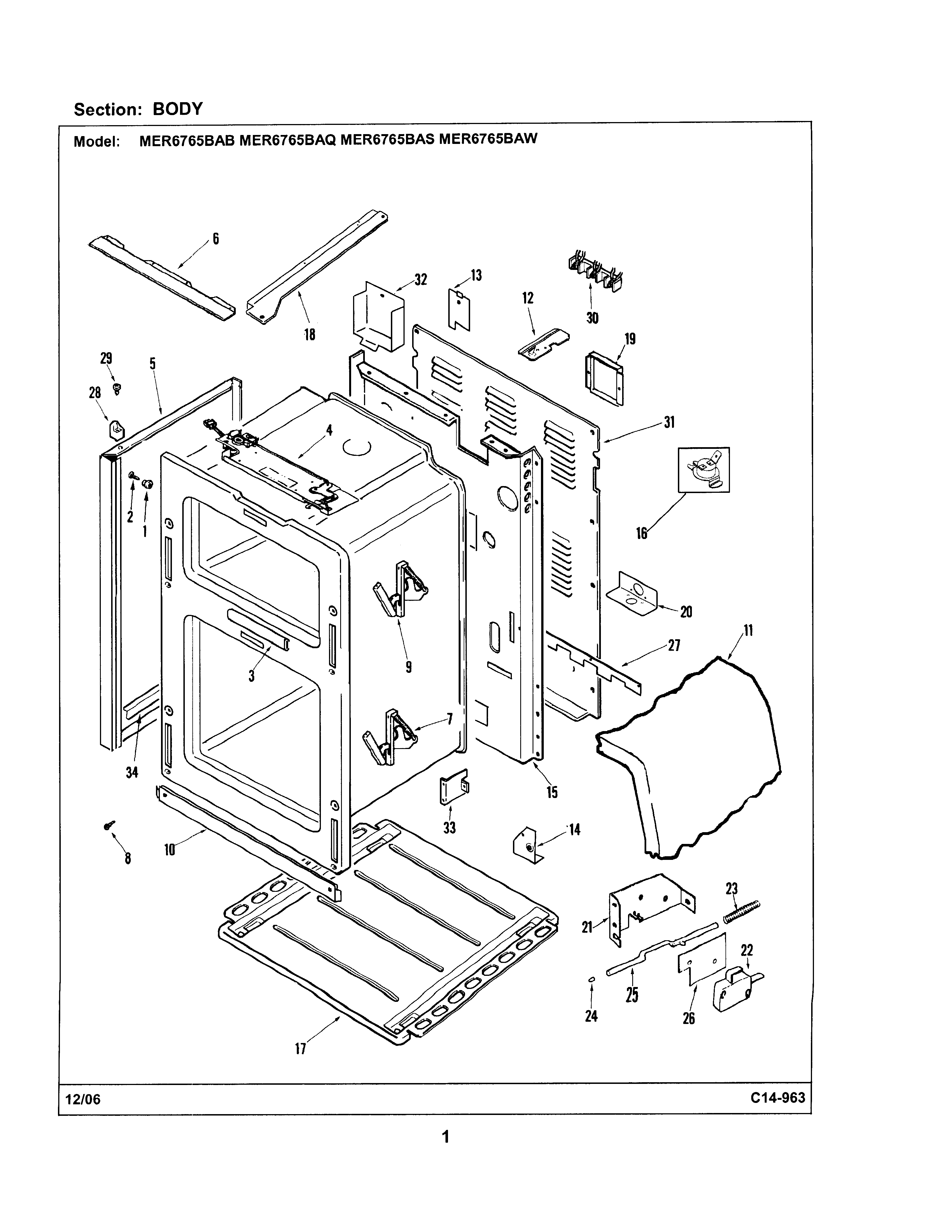

| 1 | MAY 8004P024-60 |
| 2 | SCREW W/SHOULDER (No.8) |
| 3 | 74004518 Whirlpool Frame Front Seal |
| 4 | 74003975 Whirlpool Screw P1 (8ABX3/8-BLK) |
| 4 | 74007429 Whirlpool Door Latch Assembly Primary Lock |
| 5 | MAY 74003283 |
| 6 | MAY 74003384 |
| 7 | 74011142 Whirlpool Stove Range Oven Door Hinge and Spring |
| 9 | SCREW (10-24X5/16-NI) |
| 9 | MAY W10202401 |
| 9 | MAY 74007830 |
| 10 | MAY 74007478 |
| 10 | WP98008545 Whirlpool Screw |
| 11 | MAY 74007336 |
| 11 | MAY 74007899 |
| 11 | MAY 74009968 |
| 11 | MAY 74009979 |
| 12 | MAY 74001598 |
| 13 | MAY 74007642 |
| 14 | MAY 74007446 |
| 14 | MAY 74007447 |
| 15 | WP74003976 Whirlpool Screw |
| 15 | MAY 74009961 |
| 16 | MAY 74009969 |
| 17 | MAY 74009962 |
| 18 | MAY 74007672 |
| 18 | MAY 74007671 |
| 19 | MAY 74010256 |
| 20 | W10190166 Whirlpool Service Bracket |
| 21 | WPY706189 Whirlpool Stove Screw |
| 21 | BRACKET, SWITCH ACTUATOR |
| 22 | MAY 7101P330-60 |
| 22 | MAY W10201670 |
| 24 | MAY 74001631 |
| 25 | ROD, DOOR LIGHT SWITCH |
| 26 | MAY 74001872 |
| 27 | MAY 74005653 |
| 28 | SPACER, MAIN TOP (LT) |
| 28 | SPACER, MAIN TOP (RT) |
| 29 | MAY 7101P313-60 |
| 30 | MAY 74004532 |
| 30 | MAY 7401P038-60 |
| 31 | MAY 74004576 |
| 31 | SCREW |
| 32 | MAY 74004577 |
| 33 | MAY 74005499 |
| 33 | MAY 74005500 |
| 34 | 3823F015-51 Whirlpool Spacer |
