MER6775BCS17 04 – UPPER DOOR PARTS – Aparts

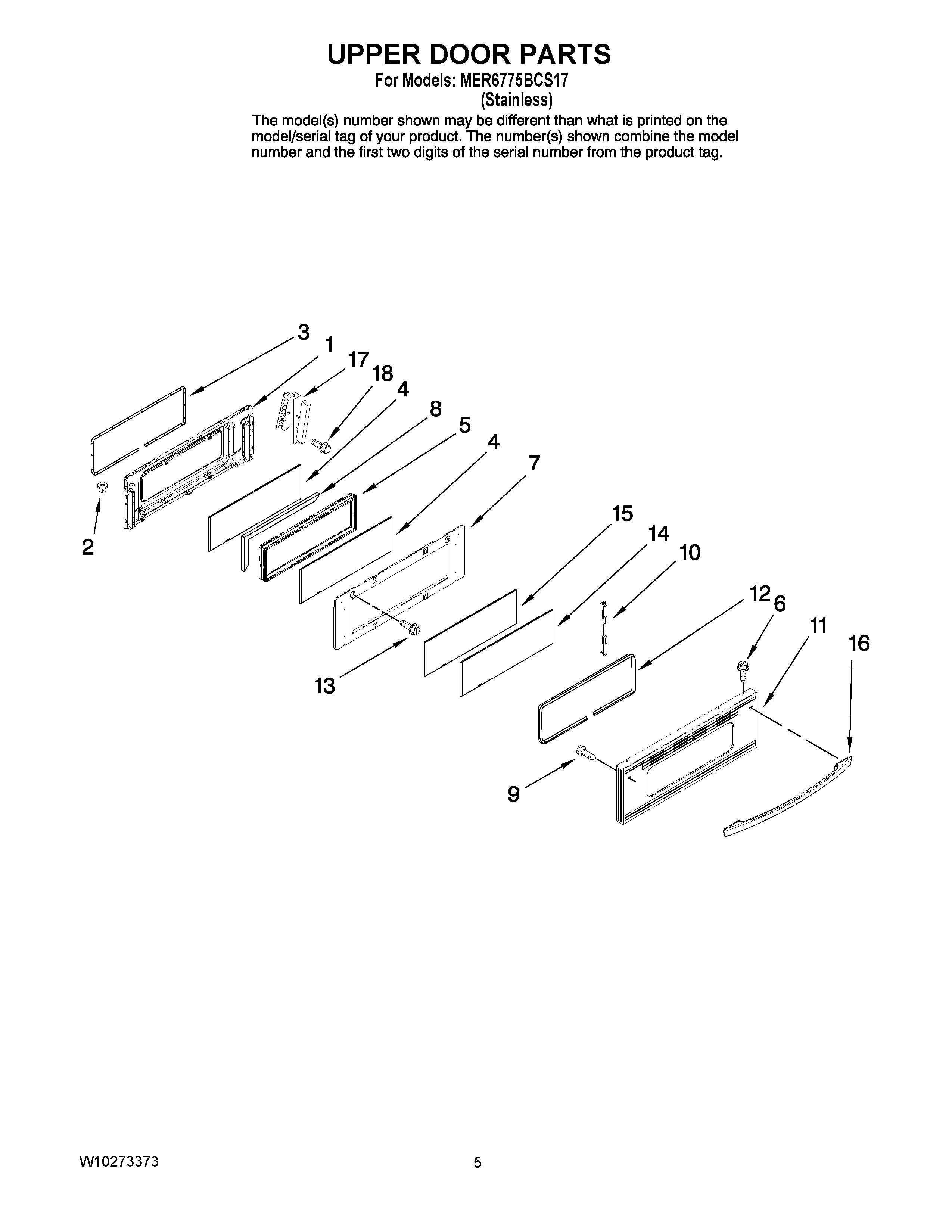

MER6775BCS17 04 – UPPER DOOR PARTS

Products

Position	Product
1	MAY 2402W248-19
2	MAY 7103P141-60
3	MAY 7201P091-60
4	MAY 7902P521-60
5	MAY 7907P034-60
6	MAY 7101P388-60
7	Baffle, Door
8	MAY 7002P488-60
9	Screw (2) (Black)
10	MAY 3804F184-45
11	Panel, Door
12	MAY 7201P141-60
13	MAY 7101P376-60
14	MAY 7902P751-60
15	MAY 7902P542-60
16	HANDLE, DOOR (STAINLESS)
17	MAY 7106P148-60
18	SCREW (10-24X5/16-NI)
