MER6870AAQ 02 – CONTROL PANEL
Written by
in

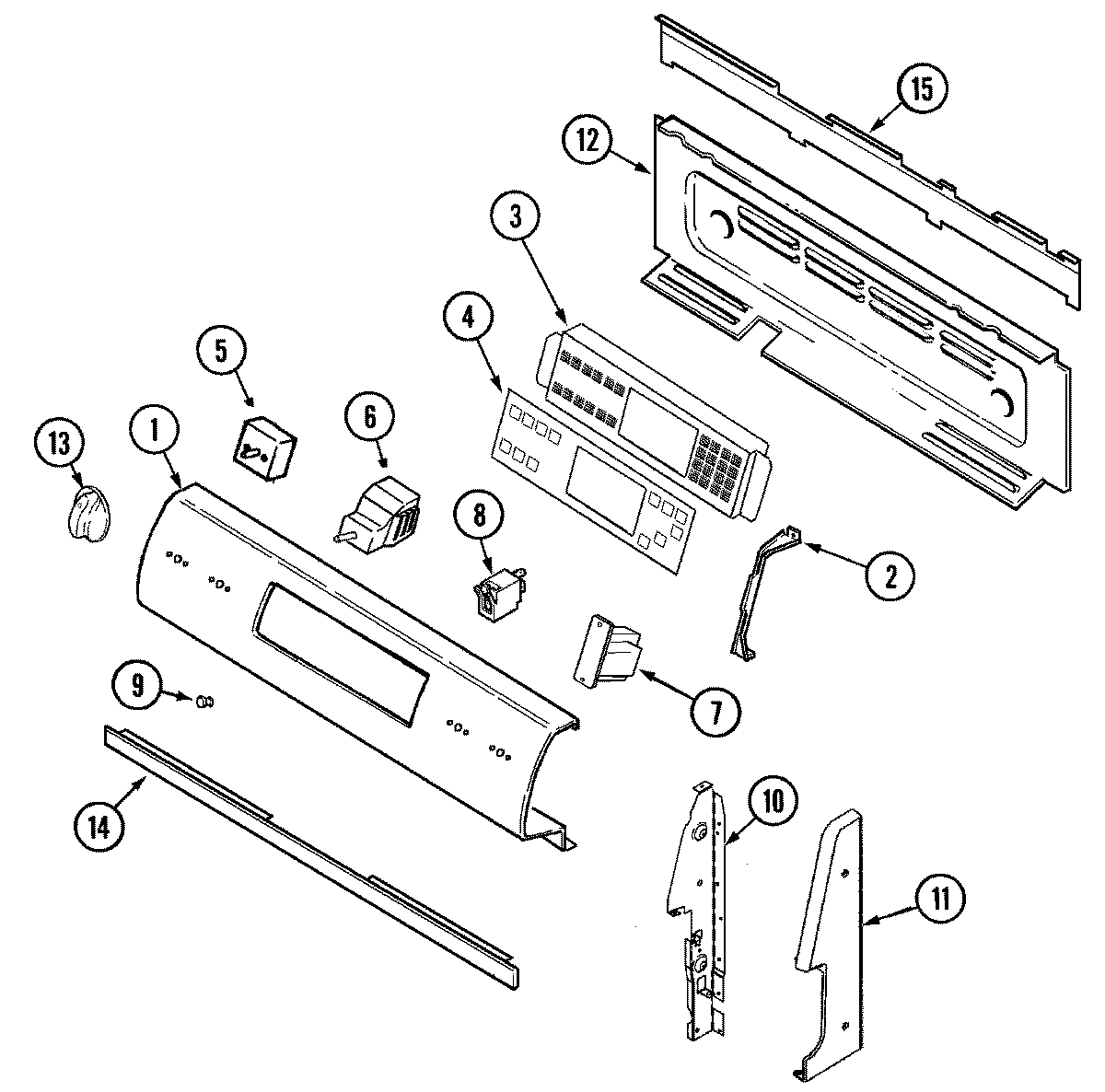

MER6870AAQ 02 – CONTROL PANEL
Products
Position
Product
1
MAY 74005234
2
WPY706189 Whirlpool Stove Screw
2
MAY 74005388
3
MAY 74005471
3
SCREW
4
MAY 74005468
5
SCREW
5
WP7403P239-60 Whirlpool Oven Switch
5
WP7403P238-60 Whirlpool Infinite Switch (Small Element)
6
MAY 74002144
6
MAY 71003201
7
MAY 74005456
8
WP74004153 Whirlpool Indicator Light
9
WP7730P011-60 Whirlpool Indicator Lens
10
MAY 74005392
10
MAY 74005393
11
MAY 74004982
11
MAY 74005237
11
MAY 74005236
11
WP74009541 Whirlpool Screw Assembly
12
MAY 74004550
13
MAY 74005143
14
MAY 74003374
15
MAY 74006376
15
SCREW (8BX3/8-NI)
15
MAY 74004551
16
MAY 74005491
16
MAY 74005489
16
MAY 74005490
16
MAY 74004537
16
MAY 74005494
16
MAY 74005493
16
MAY 74005492
17
MAY 74005366
17
MAY 74005475
17
MAY 16009690
←
