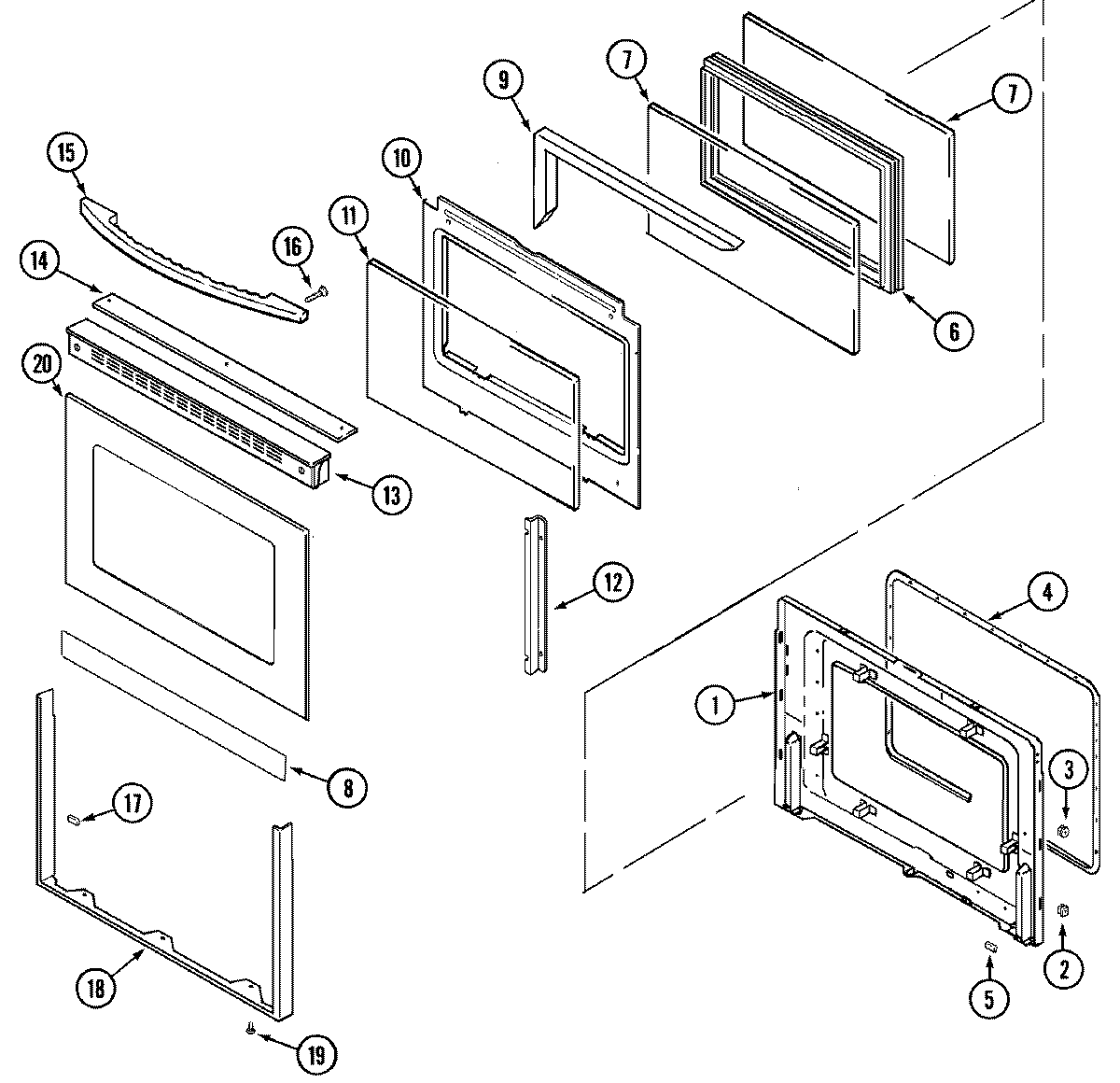

MER6870AAQ 03 – DOOR (LOWER)

Products

Position	Product
1	MAY 74003642
2	MAY 74003643
2	NUT, SNAP (ROUND-BLK)
3	NUT, SNAP (ROUND-WHT)
4	GASKT-DOOR OVEN
5	MAY 8010P085-60
6	FRAME, GLASS
7	74003645 Whirlpool Range Oven Door Inner Glass
8	TAPE, FOIL 29`` X 2``
9	INSULATION, OVEN DOOR
10	MAY 74003648
11	GLASS, DOOR
12	MAY 74003650
13	MAY 74005241
14	MAY 74004978
15	MAY 74004974
16	WP179051 Whirlpool Screw
17	WP74004224 Whirlpool Tape
18	MAY 74005162
18	WP74009541 Whirlpool Screw Assembly
19	SCREW
20	MAY 74005240
