MER6870AAW 03 – DOOR (LOWER)

MER6870AAW 03 – DOOR (LOWER)

Written by

in

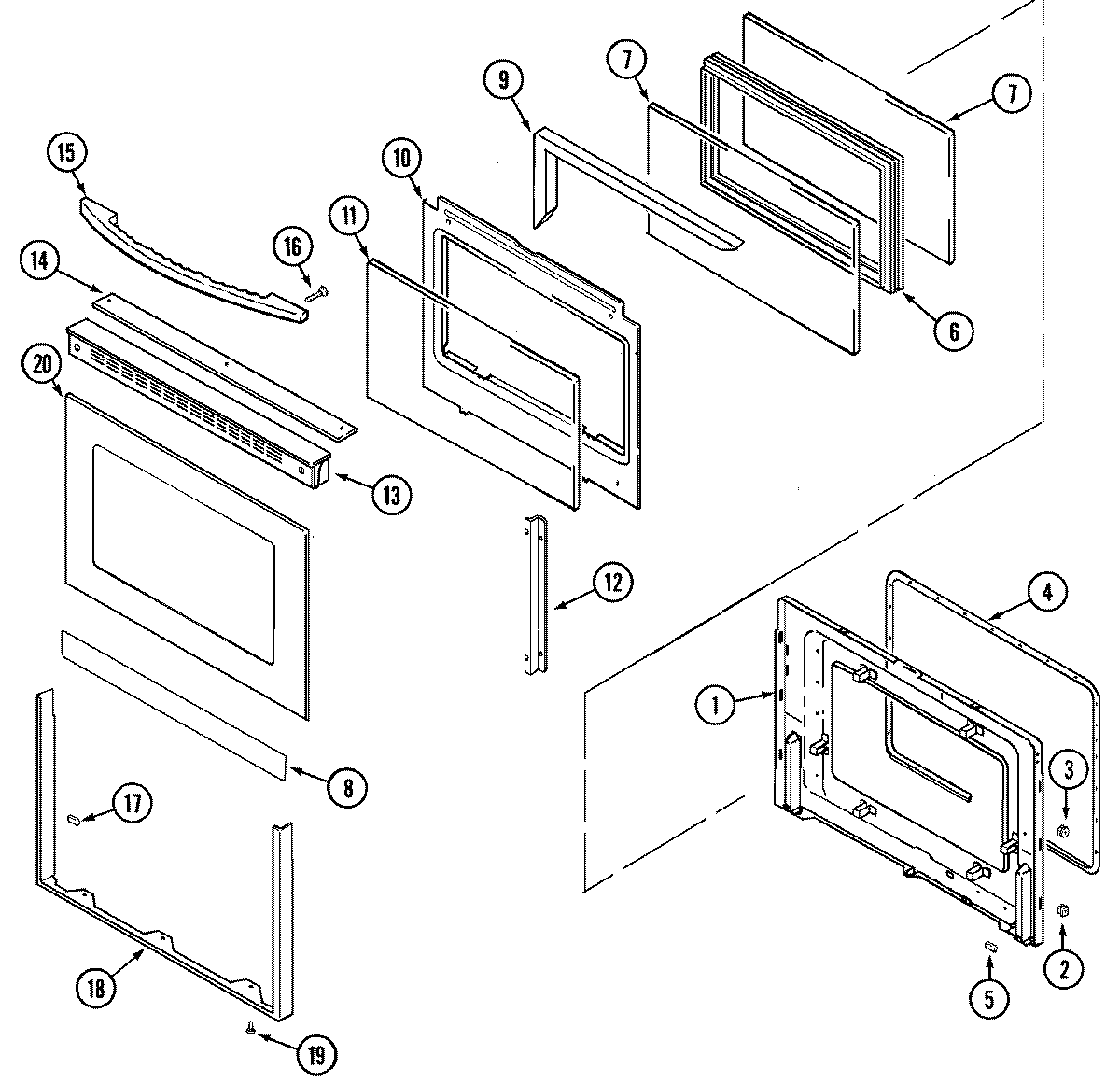

MER6870AAW 03 – DOOR (LOWER)

Products

PositionProduct
1MAY 74003642
2MAY 74003643
2NUT, SNAP (ROUND-BLK)
3NUT, SNAP (ROUND-WHT)
4GASKT-DOOR OVEN
5MAY 8010P085-60
6FRAME, GLASS
774003645 Whirlpool Range Oven Door Inner Glass
8TAPE, FOIL 29“ X 2“
9INSULATION, OVEN DOOR
10MAY 74003648
11GLASS, DOOR
12MAY 74003650
13WP74003653 Whirlpool Door Trim
14MAY 7728P094-60
15MAY 74003620
16WP179051 Whirlpool Screw
17WP74004224 Whirlpool Tape
18WP98008544 Whirlpool Screw Assembly
18MAY 74004325
19SCREW
20MAY 74004562
