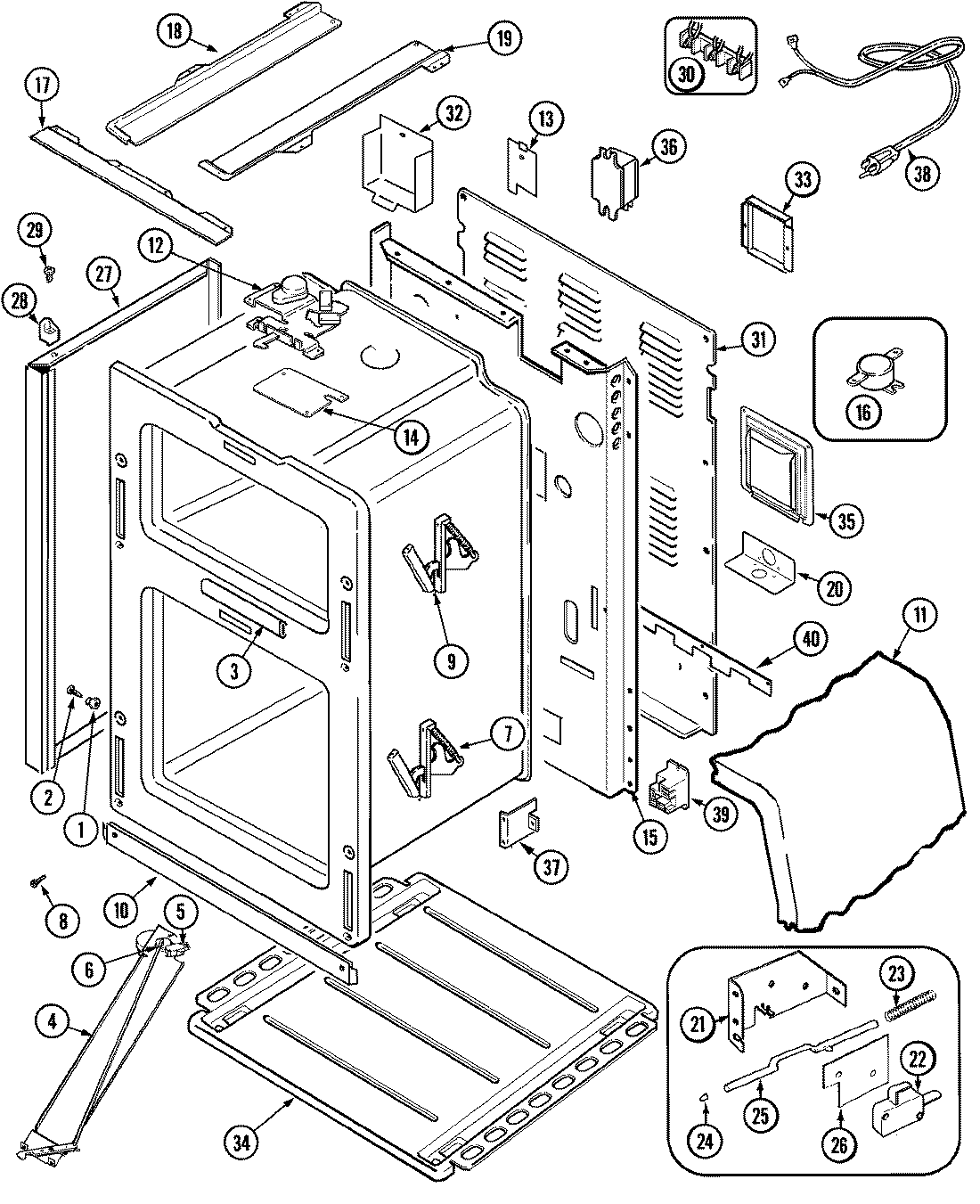

MER6870ACQ 01 – BODY

MER6870ACQ 01 – BODY

Written by

in

MER6870ACQ 01 – BODY

Products

PositionProduct
1MAY 8004P024-60
2W11693756 Whirlpool Screw Assembly
374004518 Whirlpool Frame Front Seal
4MAY 74005485
5MAY 74005532
6MAY 74005531
7HINGE-OVEN DOOR
9MAY 74004523
9SCREW (10-24X5/16-NI)
10WP74009541 Whirlpool Screw Assembly
10MAY 74005239
11MAY 74004520
11MAY 74004526
12MAY 74005517
1274003975 Whirlpool Screw P1 (8ABX3/8-BLK)
13MAY 74005484
14MAY 74005496
15MAY 74005497
16WP74004530 Whirlpool Limit Switch
17MAY 74003384
18MAY 74005505
18MAY 74003379
19MAY 74003378
19NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
20W10190166 Whirlpool Service Bracket
21WPY706189 Whirlpool Stove Screw
21BRACKET, SWITCH ACTUATOR
22MAY 7101P330-60
24MAY 74001631
25ROD, DOOR LIGHT SWITCH
26MAY 74001872
27SCREW
27MAY 74004965
28SPACER, MAIN TOP (LT)
28SPACER, MAIN TOP (RT)
29MAY 7101P313-60
30MAY 74004532
30MAY 7401P038-60
31MAY 74004576
32MAY 74004577
33MAY 4005F427-51
34MAY 74004828
35MAY 74005498
36MAY 74004690
37MAY 74005500
37MAY 74005499
38MAY 7402P050-60
39WP74003482 Whirlpool Auxiliary Relay
40MAY 74005653
