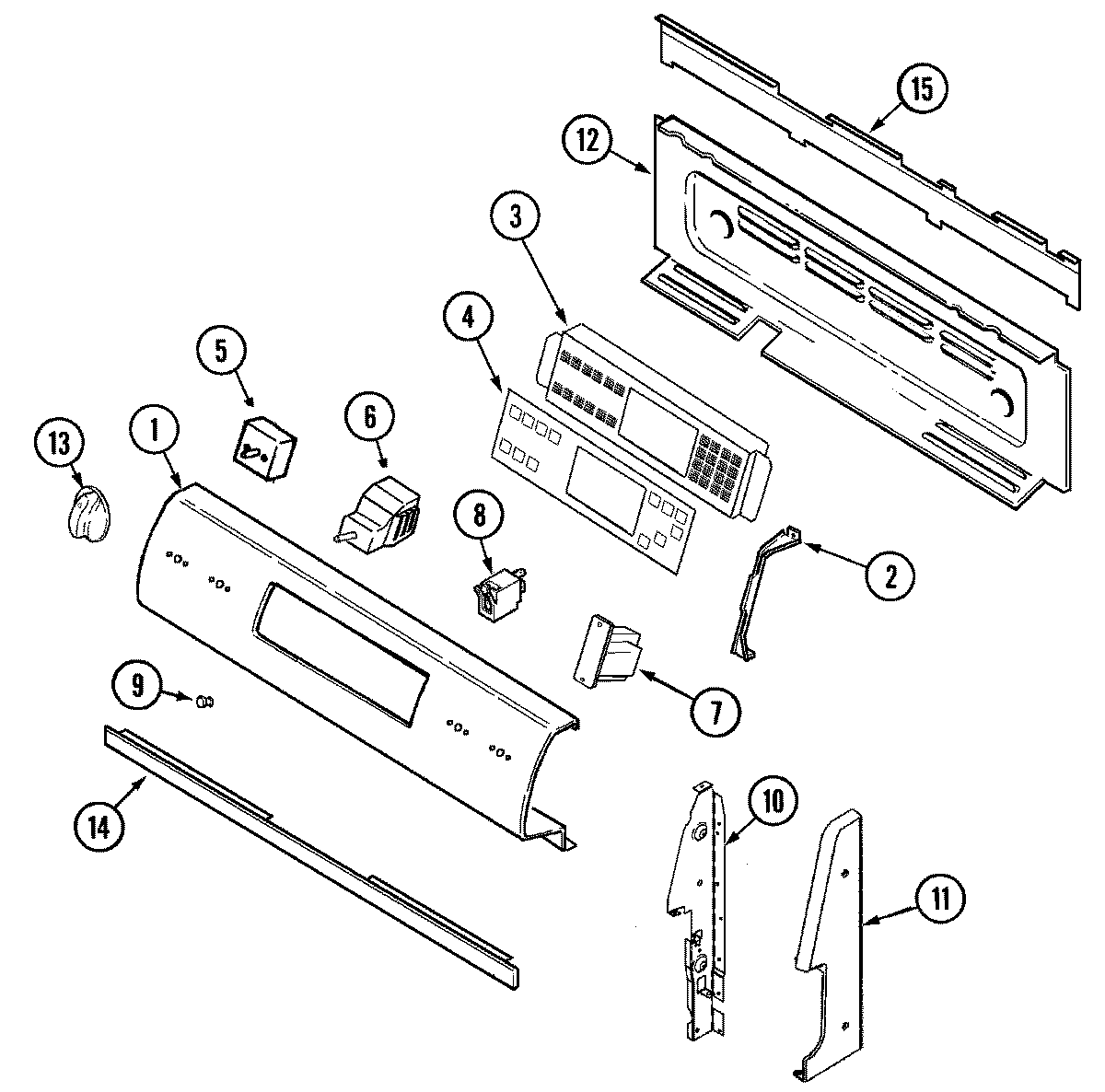

MER6871AAB 02 – CONTROL PANEL

MER6871AAB 02 – CONTROL PANEL

Written by

in

MER6871AAB 02 – CONTROL PANEL

Products

PositionProduct
1MAY 74004539
2MAY 74005388
2WPY706189 Whirlpool Stove Screw
3MAY 74005471
3SCREW
4MAY 74005470
5WP7403P239-60 Whirlpool Oven Switch
5WP7403P238-60 Whirlpool Infinite Switch (Small Element)
5SCREW
6MAY 71003201
6MAY 74002144
7MAY 74005456
8WP74004153 Whirlpool Indicator Light
9WP7730P011-60 Whirlpool Indicator Lens
10MAY 74005392
10MAY 74005393
11MAY 74002432
11SCREW (8ABX1/2“-BLK)
11MAY 74004546
11MAY 74004547
12MAY 74004550
13KNOB (BLK)
14MAY 74003374
15SCREW (8BX3/8-NI)
15MAY 74006376
15MAY 74004551
16MAY 74004537
16MAY 74005491
16MAY 74004538
16MAY 74005490
16MAY 74005494
16MAY 74005493
16MAY 74005492
17MAY 16009690
17MAY 74005475
17MAY 74005366
18MAY 74004581
