MER6871AAB 03 – DOOR (LOWER)

MER6871AAB 03 – DOOR (LOWER)

Written by

in

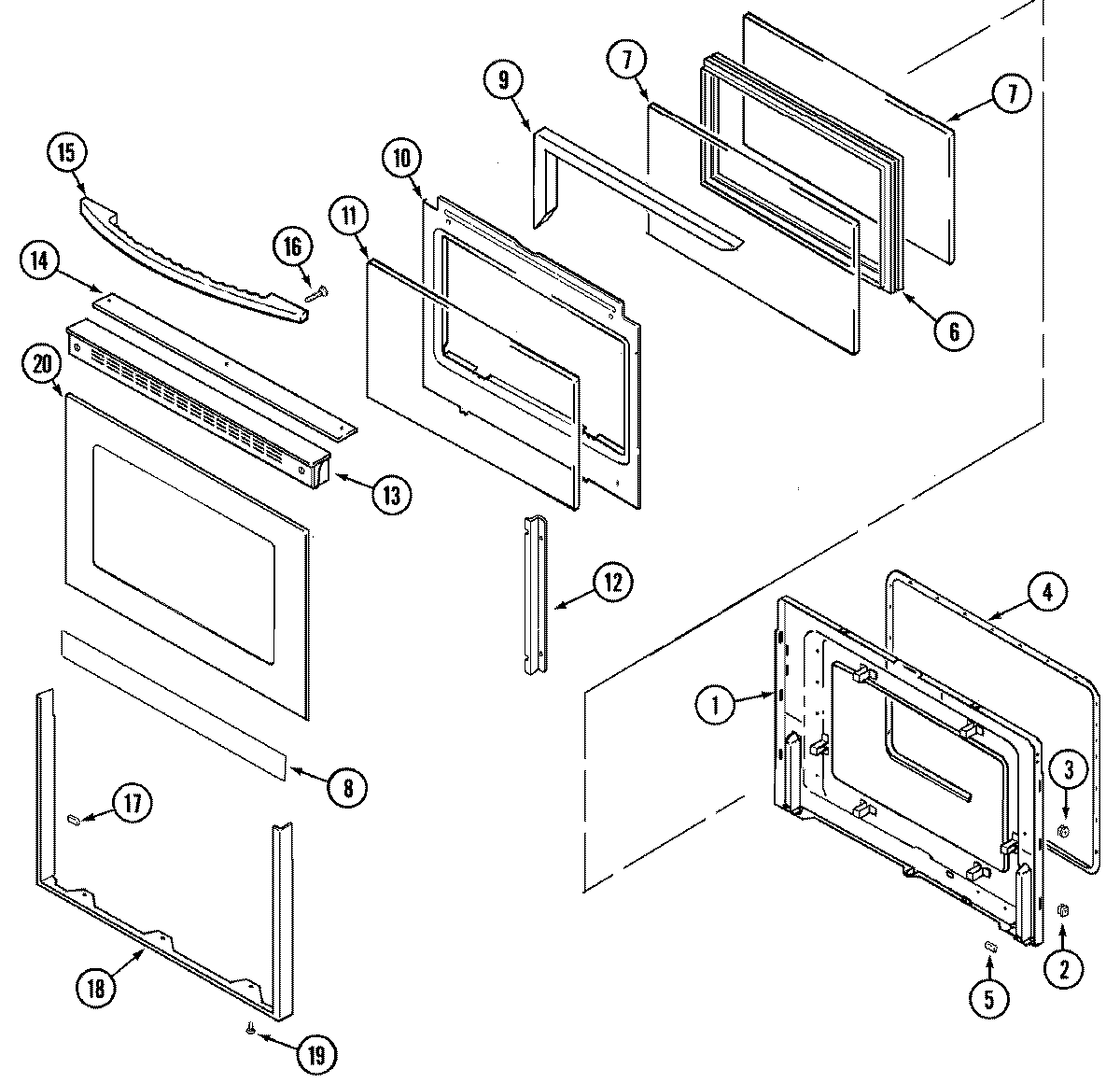

MER6871AAB 03 – DOOR (LOWER)

Products

PositionProduct
1MAY 74003642
2NUT, SNAP (ROUND-BLK)
2MAY 74003643
3NUT, SNAP (ROUND-WHT)
4GASKT-DOOR OVEN
5MAY 8010P085-60
6FRAME, GLASS
774003645 Whirlpool Range Oven Door Inner Glass
8TAPE, FOIL 29“ X 2“
9INSULATION, OVEN DOOR
10MAY 74003648
11GLASS, DOOR
12MAY 74003650
13WP74003652 Whirlpool Door Trim
15MAY 74003617
16WP179051 Whirlpool Screw
17WP74004224 Whirlpool Tape
18WP98008545 Whirlpool Screw
18MAY 74004324
19SCREW
20MAY 74004563
