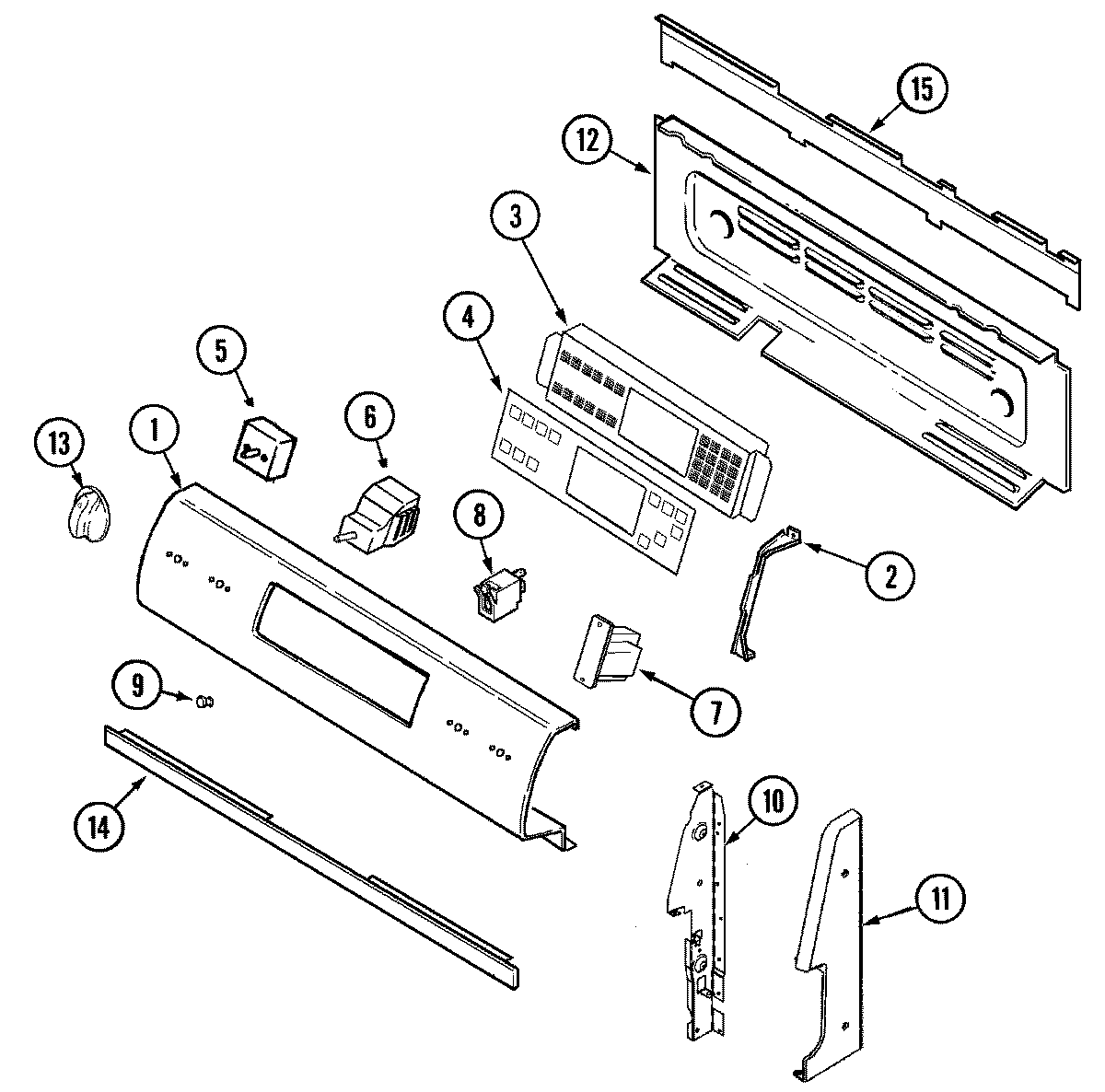

MER6871AAC 02 – CONTROL PANEL

Products

Position	Product
1	MAY 74004889
2	MAY 74005388
2	WPY706189 Whirlpool Stove Screw
3	SCREW
3	MAY 74005471
4	MAY 74005469
5	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
5	WP7403P239-60 Whirlpool Oven Switch
5	SCREW
6	MAY 71003201
6	MAY 74002144
7	MAY 74005456
8	WP74004153 Whirlpool Indicator Light
9	WP7730P011-60 Whirlpool Indicator Lens
10	MAY 74005392
10	MAY 74005393
11	MAY 74002432
11	MAY 74004547
11	SCREW (8ABX1/2``-BLK)
11	MAY 74004546
12	MAY 74004550
13	KNOB (BLK)
14	MAY 74003374
15	MAY 74006376
15	SCREW (8BX3/8-NI)
15	MAY 74004551
16	MAY 74005494
16	MAY 74005490
16	MAY 74005492
16	MAY 74005493
16	MAY 74004537
16	MAY 74005491
16	MAY 74004538
17	MAY 16009690
17	MAY 74005366
17	MAY 74005475
18	MAY 74004581
