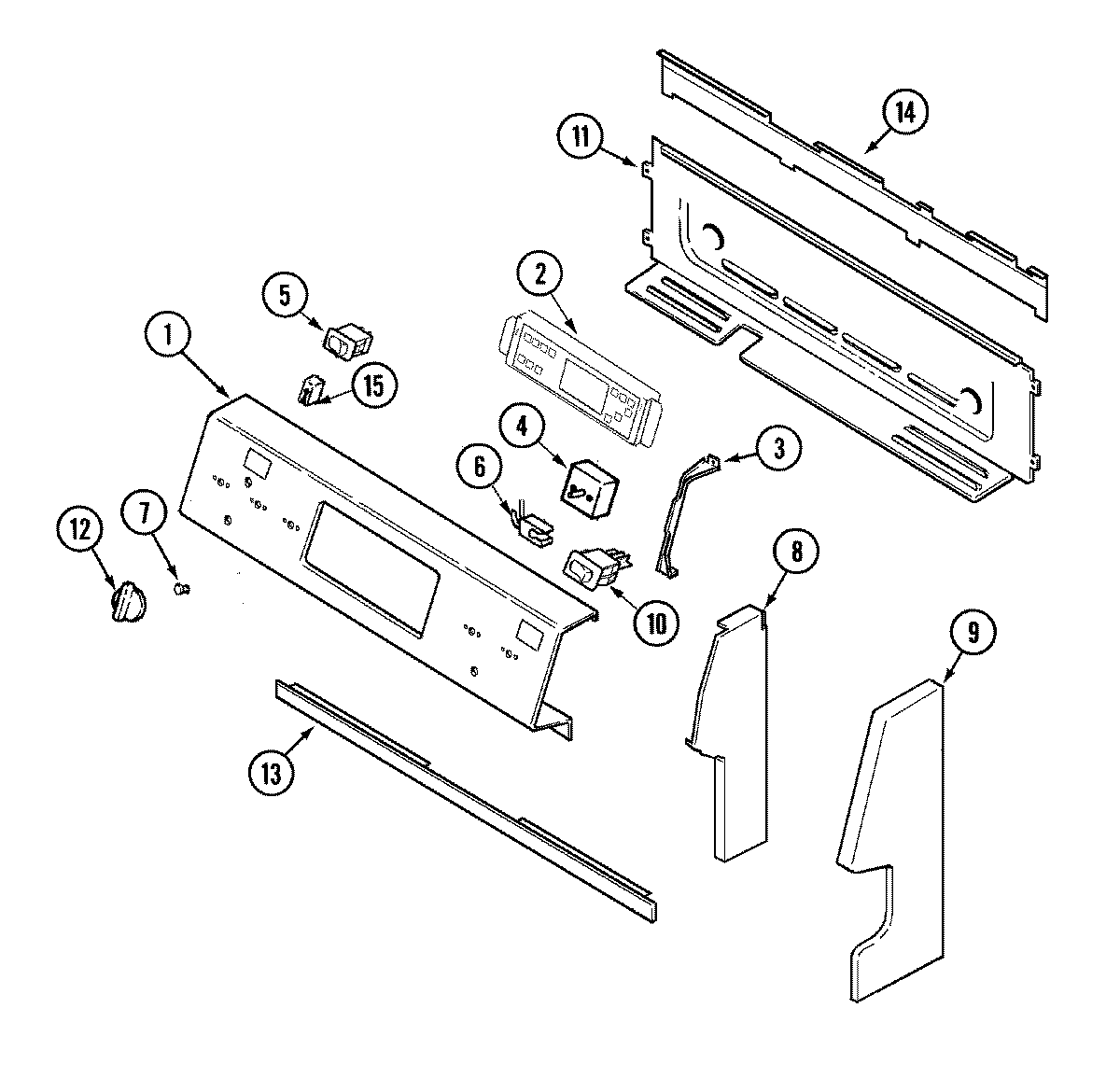

MER6872BAQ 02 – CONTROL PANEL

Products

Position	Product
1	MAY 74006625
2	WP74004005 Whirlpool Screw
2	MAY 74006217
3	MAY 74005388
3	MAY 74004985
4	WP74003122 Whirlpool Infinite Switch Assembly (Dual)
4	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
4	WP7403P239-60 Whirlpool Oven Switch
4	SCREW
5	74008765 Whirlpool Range Oven Rocker Switch Bisque
6	WP74004153 Whirlpool Indicator Light
7	WP7730P011-60 Whirlpool Indicator Lens
8	SCREW
8	MAY 74005393
8	MAY 74005392
9	MAY 74005237
9	WP74009541 Whirlpool Screw Assembly
9	MAY 74005236
9	MAY 74004982
10	MAY 74006469
11	MAY 74004550
12	MAY 74005143
13	MAY 74003374
14	MAY 74006376
14	SCREW (8BX3/8-NI)
15	WP903115 Whirlpool Dishwasher Indicator Light
16	MAY 12001323
16	MAY 74006793
16	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
16	MAY 74009388
16	MAY 74007644
16	MAY 74007369
16	MAY 74004687
16	MAY 74006788
16	MAY 74005492
16	MAY 74005493
16	MAY 74004537
16	WP74003482 Whirlpool Auxiliary Relay
16	MAY 74005489
16	MAY 74006647
17	MAY 74005918
17	MAY 74005475
18	MAY 74005884
18	MAY 16010107
